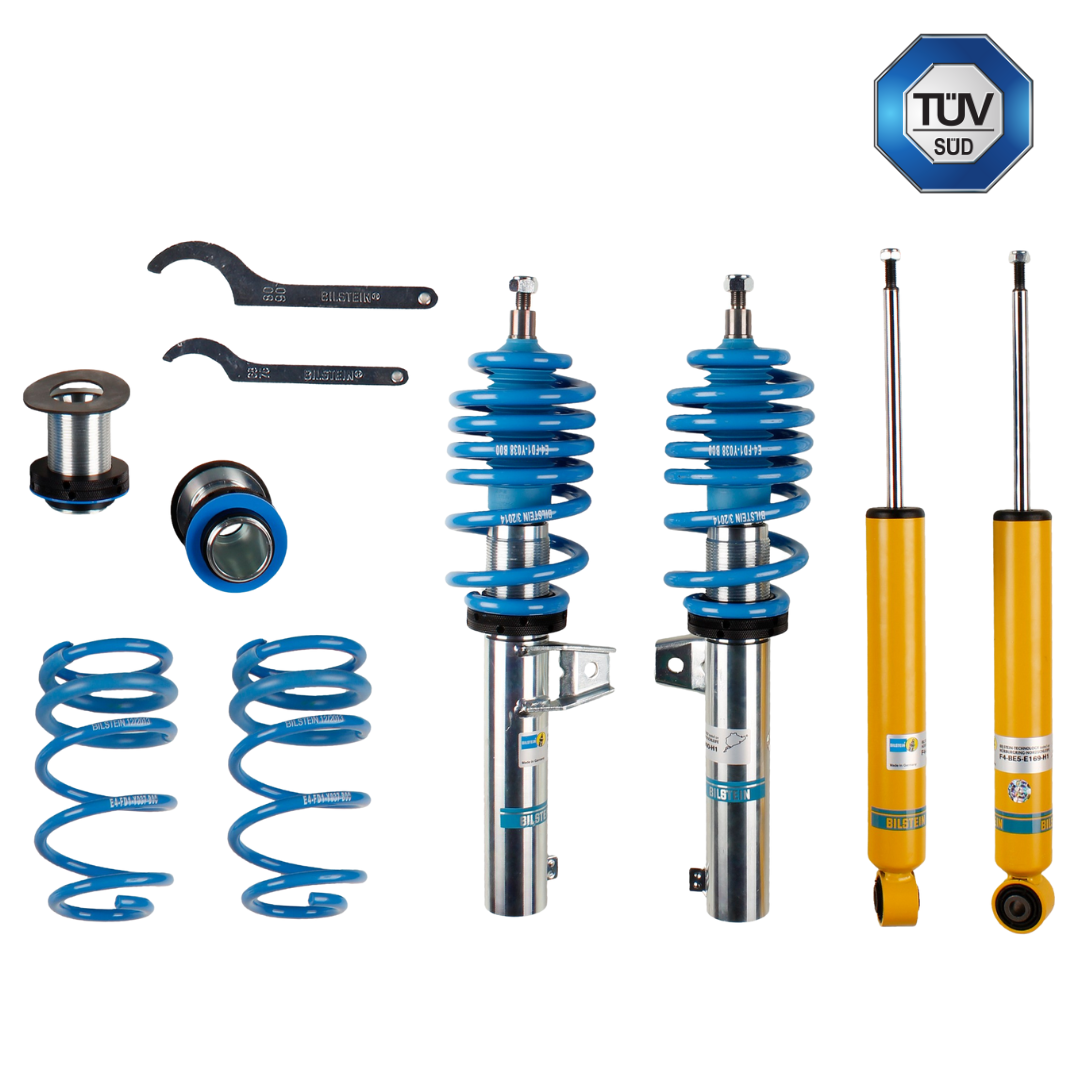

BILSTEIN - Bilstein B14 PSS coilover suspension
Currently viewed by people
Availability for pickups could not be loaded
NOTE: Chassis for vehicles without Magnetic Ride
Chassis properties
- Screw-in chassis, height-adjustable
- Shock absorber type: Gas pressure
- For vehicles without electronic damper control
- For vehicles without Magnetic Ride
- Approval: Conditions see expert opinion
front axle
- Axle load up to 1060 kg
- Lowering approx. 30-50 mm
Rear axle
- Axle load up to 1040 kg
- Lowering approx. 30-50 mm
Product description:
- Lowering by approx. 30-50 mm at the front and rear, depending on the vehicle
- Registered adjustment range of up to 20 mm when installed on both axles
- Individually tuned in the BILSTEIN road test under motorsport conditions
- Spring plate and lock nut made of special aluminum alloy
- Surface coating in Triple C technology for long-lasting corrosion resistance
- Round thread for perfect handling
- Quality sports springs made from high-strength material
- BILSTEIN gas pressure technology
- BILSTEIN monotube/upside-down technology made in Germany (a larger effective area of the working piston for higher damping force and better handling and the better dissipation of thermal energy to the outside allows a constantly higher performance of the damper)
- Parts certificate
Compatible vehicles:
TT (8J3) from June 2006 to February 2015
| Vehicle type | Year of construction (from-to) | kW | PS | Displacement (ccm) | Cyl. | Engine code | Fuel |
|---|---|---|---|---|---|---|---|
| 1.8 TFSI | 06.08 - 06.14 | 118 | 160 | 1798 | 4 | CDAA | Gasoline |
| 2.0 TFSI | 08.06 - 12.07 | 147 | 200 | 1984 | 4 | BWA | Gasoline |
| 2.0 TFSI | 08.06 - 06.10 | 147 | 200 | 1984 | 4 | BWA | Gasoline |
| 2.0 TFSI quattro | 06.08 - 06.10 | 147 | 200 | 1984 | 4 | CCZA; CCTA | Gasoline |
| 2.0 TFSI | 01.08 - 06.10 | 149 | 203 | 1984 | 4 | CCTA | Gasoline |
| 2.0 TFSI | 05.10 - 06.14 | 155 | 211 | 1984 | 4 | CESA | Gasoline |
| 2.0 TFSI quattro | 05.10 - 06.14 | 155 | 211 | 1984 | 4 | CESA; CETA | Gasoline |
| TTS 2.0 quattro | 09.13 - 06.14 | 195 | 265 | 1984 | 4 | CDLA; CDMA | Gasoline |
| TTS 2.0 quattro | 05.08 - 06.14 | 195 | 265 | 1984 | 4 | CDLA; CDMA | Gasoline |
| TTS 2.0 quattro | 05.08 - 06.14 | 200 | 272 | 1984 | 4 | CDLB | Gasoline |
| RS 2.5 quattro | 07.09 - 06.14 | 250 | 340 | 2480 | 5 | CEPA | Gasoline |
| RS 2.5 quattro | 05.11 - 06.14 | 265 | 360 | 2480 | 5 | CEPB | Gasoline |
| V6 3.2 quattro | 08.06 - 06.10 | 184 | 250 | 3189 | 6 | BUB; CBRA | Gasoline |
| 2.0 TDI quattro | 06.08 - 06.14 | 125 | 170 | 1968 | 4 | CBBB; CFGB | Diesel |
TT Roadster (8J9) from March 2007 to September 2014
| Vehicle type | Year of construction (from-to) | kW | PS | Displacement (ccm) | Cyl. | Engine code | Fuel |
|---|---|---|---|---|---|---|---|
| 1.8 TFSI | 06.08 - 06.14 | 118 | 160 | 1798 | 4 | CDAA | Gasoline |
| 2.0 TFSI | 03.07 - 06.10 | 147 | 200 | 1984 | 4 | BWA | Gasoline |
| 2.0 TFSI quattro | 06.08 - 06.10 | 147 | 200 | 1984 | 4 | CCZA; CCTA | Gasoline |
| 2.0 TFSI | 05.10 - 06.14 | 155 | 211 | 1984 | 4 | CESA | Gasoline |
| 2.0 TFSI quattro | 05.10 - 06.14 | 155 | 211 | 1984 | 4 | CESA; CETA | Gasoline |
| TTS 2.0 quattro | 09.13 - 06.14 | 195 | 265 | 1984 | 4 | CDLA; CDMA | Gasoline |
| TTS 2.0 quattro | 05.08 - 06.14 | 195 | 265 | 1984 | 4 | CDLA; CDMA | Gasoline |
| TTS 2.0 quattro | 05.08 - 06.14 | 200 | 272 | 1984 | 4 | CDLB | Gasoline |
| RS 2.5 quattro | 07.09 - 06.14 | 250 | 340 | 2480 | 5 | CEPA | Gasoline |
| RS 2.5 quattro | 03.12 - 06.14 | 265 | 360 | 2480 | 5 | CEPB | Gasoline |
| V6 3.2 quattro | 03.07 - 06.10 | 184 | 250 | 3189 | 6 | BUB; CBRA | Gasoline |
| 2.0 TDI quattro | 06.08 - 06.14 | 125 | 170 | 1968 | 4 | CBBB; CFGB | Diesel |
