Product details:
- Lowering VA/HA (mm): 10-35/5-30
- Version: V4Clubsport
- Force adjustment: Rebound and compression damping
- Material: Stainless steel
- Adjustment VA/HA: Thread/thread
- Approval: Parts certificate (§19.3)
Availability: producible (3-4 weeks)
Conditions/Notes:
- VA + HA height-adjustable (VA coilover struts, HA springs with height adjustment + damper)
- Vehicles with electronic damper control must be decommissioned. Vehicle-specific KW decommissioning kits are included if your vehicle has a electronic damper control. The decommissioning kit can also be purchased separately in our store as an option.
- Only for vehicles with a clamping diameter on the VA of 55mm
- Shock absorbers have easy-to-use adjustment wheels. Due to the design, the rebound stage can only be adjusted when the piston rod is accessible.
Product description:
The KW Clubsport coilovers convince with an uncompromising technology transfer from racing to the road.
The KW Clubsport coilovers convince with their uncompromising combination of high-end racing technology with maintenance-free KW original equipment components and expert opinions.
This gives you the ideal accessories to be able to exploit the full potential of your sports car on trackdays, sports driver courses, tourist drives on Grand Prix circuits and on the Nürburgring Nordschleife.
Developed for the toughest race track in the world: The Nürburgring Nordschleife
The KW Clubsport coilovers are already tuned to the different track surfaces, steep curves, jumps and chicanes of the 20.8 kilometer long Nürburgring Nordschleife in their basic setup. After all, as one of the most successful suspension manufacturers and suppliers in motorsport, we are at home on the Nordschleife.
In the VLN Endurance Championship alone, we equip over 70 racing teams and, as a suspension manufacturer, have supported six overall victories at the ADAC Zurich 24h Race Nürburgring in ten years. The winner of the ADAC GT Masters 2011 also relies on our racing know-how, from which the KW Clubsport coilovers benefit.
The basic setup of the KW V3 Clubsport and KW V4 Clubsport with separate reservoir, which is perfectly matched to the Nordschleife, allows you to adjust your sports car even more individually to the desired sports tire setup thanks to the numerous adjustment options.
KW V4 Clubsport coilover suspension
The vehicle-specific basic setup of the KW V4 Clubsport, developed in numerous test and measurement drives on the Nordschleife and the KW 7-post driving dynamics test bench, can be further adjusted with the click adjustment for your wheel loads, vehicle weight and the changed body stiffness, for example by a bolted cage, welded-in safety cell or strut braces. Similar to the KW Competition racing suspensions used in international motorsport, the KW V4 Clubsport coilover suspension allows the compression damping to be fine-tuned separately in the low-speed and high-speed range. The click adjustment of the patented KW two-valve control takes place directly on the expansion tank.

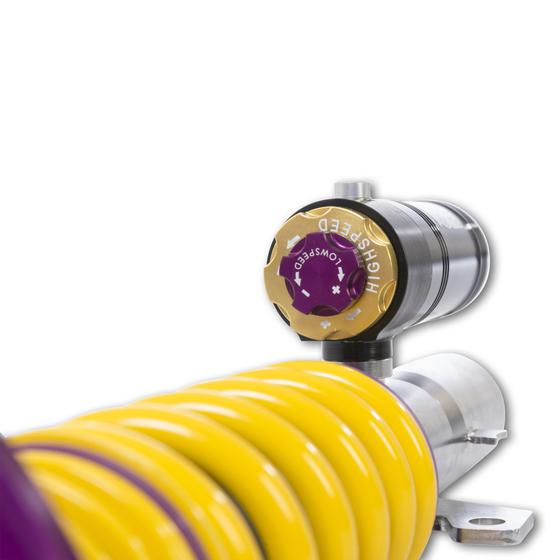

You can manually adjust the low-speed compression damping with six exact clicks on the purple-colored adjustment wheel. The gold-colored adjustment wheel underneath allows you to change the high-speed compression stage of the recommended basic setup for your track day with 14 exact clicks. Independently of this, you still have 16 clicks at your disposal to make noticeable adjustments to the rebound damping. If you want to tune the KW V4 Clubsport coilover suspension, which is available with an expert opinion, more comfortably for your journey to the Nordschleife or other race track for driving on the highway, simply reduce the rebound forces via the rebound damping.
- freely adjustable damping technology with 16 exact clicks in the rebound stage
- adjustable compression stage with 6 clicks in the low-speed range and 14 exact clicks in the high-speed range
- stepless lowering
- tested adjustment range
- high-quality components for a long service life
- unique, independently acting damping force adjustment available for technically sensible applications with aluminum unibal support bearing
Setup: Application range and damper tuning
The KW V4 Clubsport coilovers convince with their vehicle-specific tuning for trackday events on the Nürburgring Nordschleife, as well as the possibility to quickly tune these suspensions for other race tracks and individual performance sports cars.
Compatible vehicles:
Manufacturer
|
Model
|
Execution
|
Car body
|
Fuel
|
Performance
|
Displacement
|
Cylinder
|
Drive
|
---|---|---|---|---|---|---|---|---|
AUDI | A3 Sedan (8V) 8VS, 8VM 05/2013- | RS3 quattro | Notchback | Gasoline | 294 KW | 2480 cc | 5 | All-wheel drive |
AUDI | A3 Sportback (8V) 8VA, 8VF 09/2012- | RS3 quattro | Hatchback | Gasoline | 270 KW | 2480 cc | 5 | All-wheel drive |
AUDI | A3 Sportback (8V) 8VA, 8VF 09/2012- | RS3 quattro | Hatchback | Gasoline | 294 KW | 2480 cc | 5 | All-wheel drive |
Please note: In accordance with our General Terms and Conditions, we would like to expressly point out once again that all articles that are not expressly marked with a TÜV / EC approval do not have approval in the area of the StVo. These articles must therefore be type-approved by the user before they can be used on public roads. Otherwise, these products may be used in racing. This article is not permitted in the area of the StVZO and leads to the loss of the operating license and insurance cover. This modification is only for motorsport and competition purposes at closed events.
- Discoloration occurs on the silencers, pipe and tailpipe of all exhaust system components during operation. These are material-related changes that are not covered by the warranty/guarantee of the item and have no negative effect on the use or technical properties of the item.
