Rear fully adjustable wishbones Uniball Audi TT TTS TTRS 8J 8S RS3 S3 A3 8P 8V 8VFL Golf Mk5 Mk6 Mk7 Scirocco
Availability for pickups could not be loaded
When used on the racetrack, it is not possible to set the correct rear camber with the OEM handlebars. The more the OEM handlebars are loaded, the more the rubber on the handlebars deforms and the precise setting is lost. Now you can easily set and maintain the desired camber on your racing vehicle.
For this reason, we have developed adjustable rear wishbones that use metal-to-metal uniball and ball joints, as used in the Porsche RS series (GT2RS, GT3RS). Extensively tested on our track TTRS.
Product functions:
- Adjustment of the wishbone angle without removing the wishbone. With most other products, the control arm must be removed for adjustment. The tedious adjustment of the vehicle in the workshop during wheel alignment is very time consuming.
- Ability to achieve up to -4 negative camber for maximum track use.
- No rubber to bend, so the set geometry is not lost during wheel adjustment.
- Lockout polyurethane plates lock the wishbone movement to the OEM subframe.
Features:
- CNC-machined from 7075 aluminium, black anodized
- Left M16 rod end and M16 uniball (Motorsport HEAVY DUTY series from RODOBAL [Italy] with reinforced PTFE sliding layer, preloaded and tight-fitting, with forged body made of tempered 42CrMo4 steel for maximum load capacity. The inner ring is made of hardened, ground and chrome-plated 100Cr6 carbon steel).
- M24 swivel clamp for easy adjustment during wheel alignment
- Black galvanized metal bushes
- Brake hose attachment
- Polyurethane pads for correct positioning of the control arms
- Rubber ends to protect the M16 rod ends
- Eccentric locking plates (two positions - 4 central and 4 5 mm adjustment)

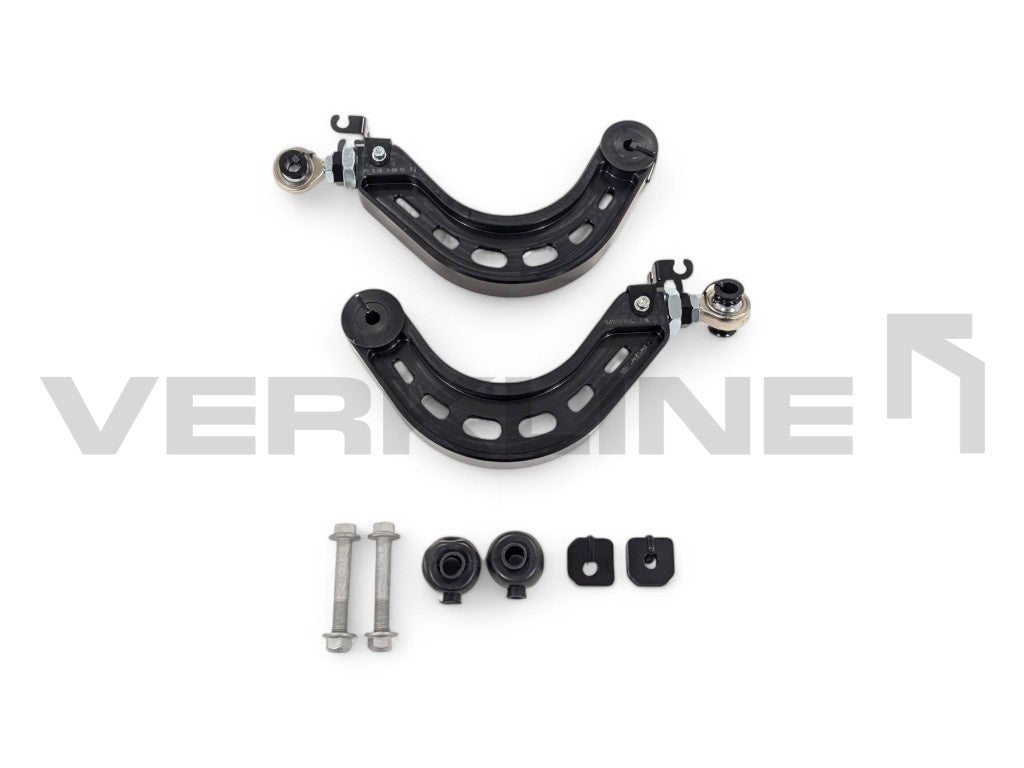

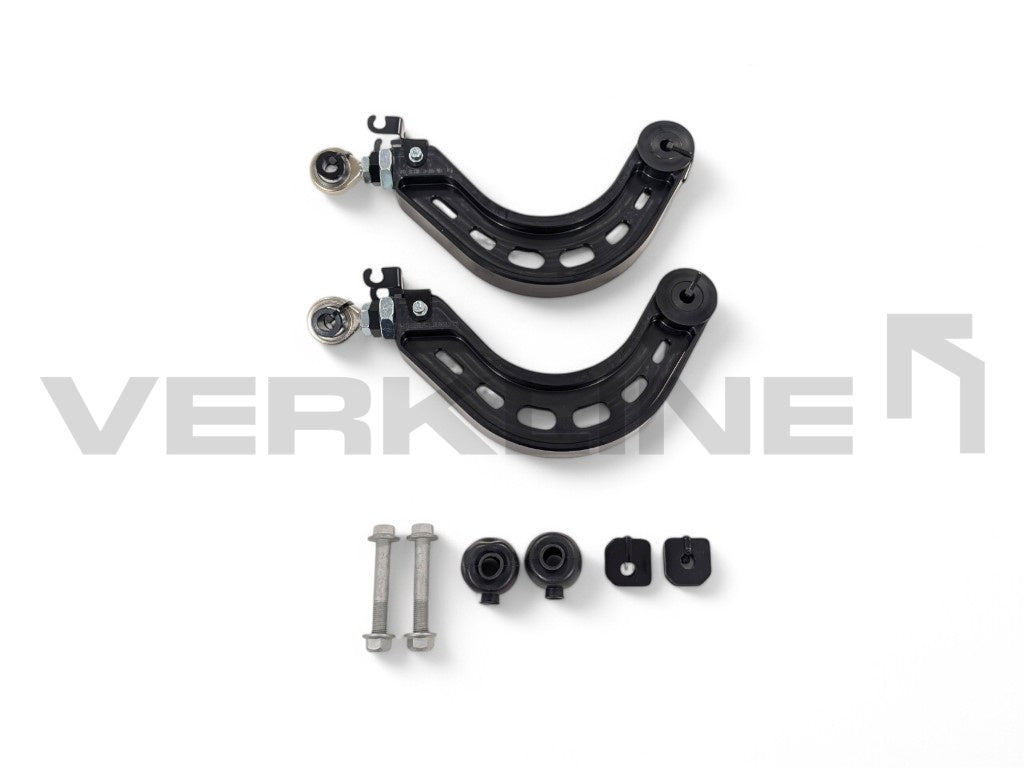

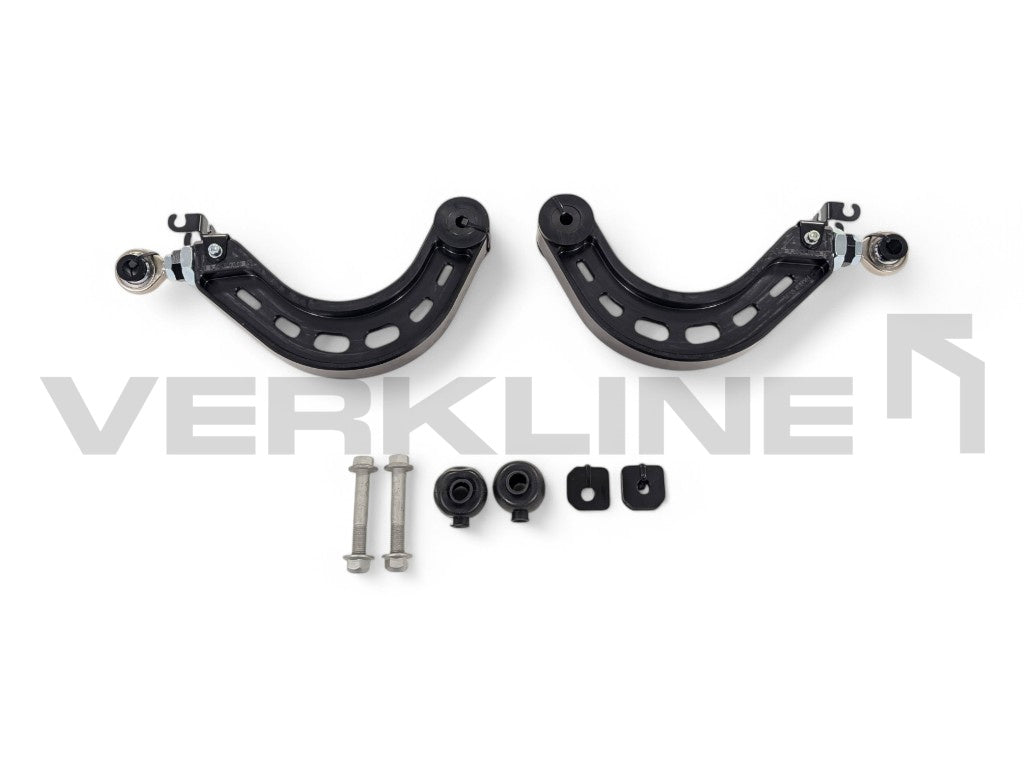

Scope of delivery:
- Pair of adjustable rear wishbones
- 2 rubber dust boots for rod ends
- 8 eccentric lock washers
- Printed installation instructions
Used in cars (type numbers in brackets):
- 2022 - Now Audi A3/S3/RS3 (8Y)
-
2005 - 2013 Audi A3/S3/RS3 (8P)
- 2015 - 2021 Audi A3/S3/RS3 (8V/8V.5)
-
2007 - 2013 Audi TT/TTS/TTRS (8J)
- 2015 - Now Audi TT/TTS/TTRS (8S)
-
2007 - 2009 Volkswagen Eos (MkV)
-
2010 - 2013 Volkswagen Eos (MkVI)
-
2006 - 2009 Volkswagen Jetta/GTI/GLI/Rabbit/R32 (MkV)
- 2010 - 2014 Volkswagen Golf/GTI/Rabbit/R (MkVI)
- 2015 - 2020 Volkswagen Golf/GTI/R (Mk7)
- 2020 - Now Volkswagen Golf/GTI/R (Mk8)
- 2006 - 2013 Volkswagen Passat
- 2008 - 2013 Volkswagen Tiguan
-
2010 - 2015 Volkswagen Jetta/GLI (MkVI)
Replaced:
- 1K0505323N / 1K0 505 323 N
- 5Q0505323C / 5Q0 505 323C
Note:
Only available for off-road, track and racing use. The installation of this rear trailing arm kit leads to an additional transmission of noise, vibrations and roughness into the interior.
Unless otherwise indicated, all articles and services are racing articles without guarantee / warranty and without STVO approval.
The same applies to modifications made to the vehicle. The performance values offered are average values on ARAL 102 OKTAN fuel, which may deviate accordingly due to inferior fuel or wear on the vehicle.
No acceleration times are guaranteed. Subsequent misfueling may cause damage to the vehicle. No guarantee / warranty is assumed for this!
HPerformance does not assume any mobility warranty / costs for the duration of the conversion or any resulting delays.
Scheduled appointment periods are not binding and may vary.
All services are special and custom-made products that are excluded from the statutory right of return.
No warranty is assumed for products that are not installed in a specialist workshop by trained specialist personnel.
Work on motor vehicles may only be carried out by trained specialists. In addition to product malfunctions, installation errors can also lead to dangerous technical and possibly legal consequences for the vehicle.
Therefore, please have all conversions carried out by a specialist vehicle workshop of the guild.
If no instructions for installing a product are available for download in the online store, these are not available
- No installation advice / installation instructions are provided by telephone.
If vehicles have already been modified beforehand, additional costs may be incurred. Please note that our TÜV-approved/registrable products are not necessarily compatible with products from other manufacturers ! Please check in advance whether your already installed hardware parts, which are not from HPerformance, are TÜV-compliant with our products!
Discoloration occurs on the silencers, pipe and tailpipe of all exhaust system components during operation. These are material-related changes that are not covered by the warranty/guarantee of the item and have no negative effect on the use or technical properties of the item.
