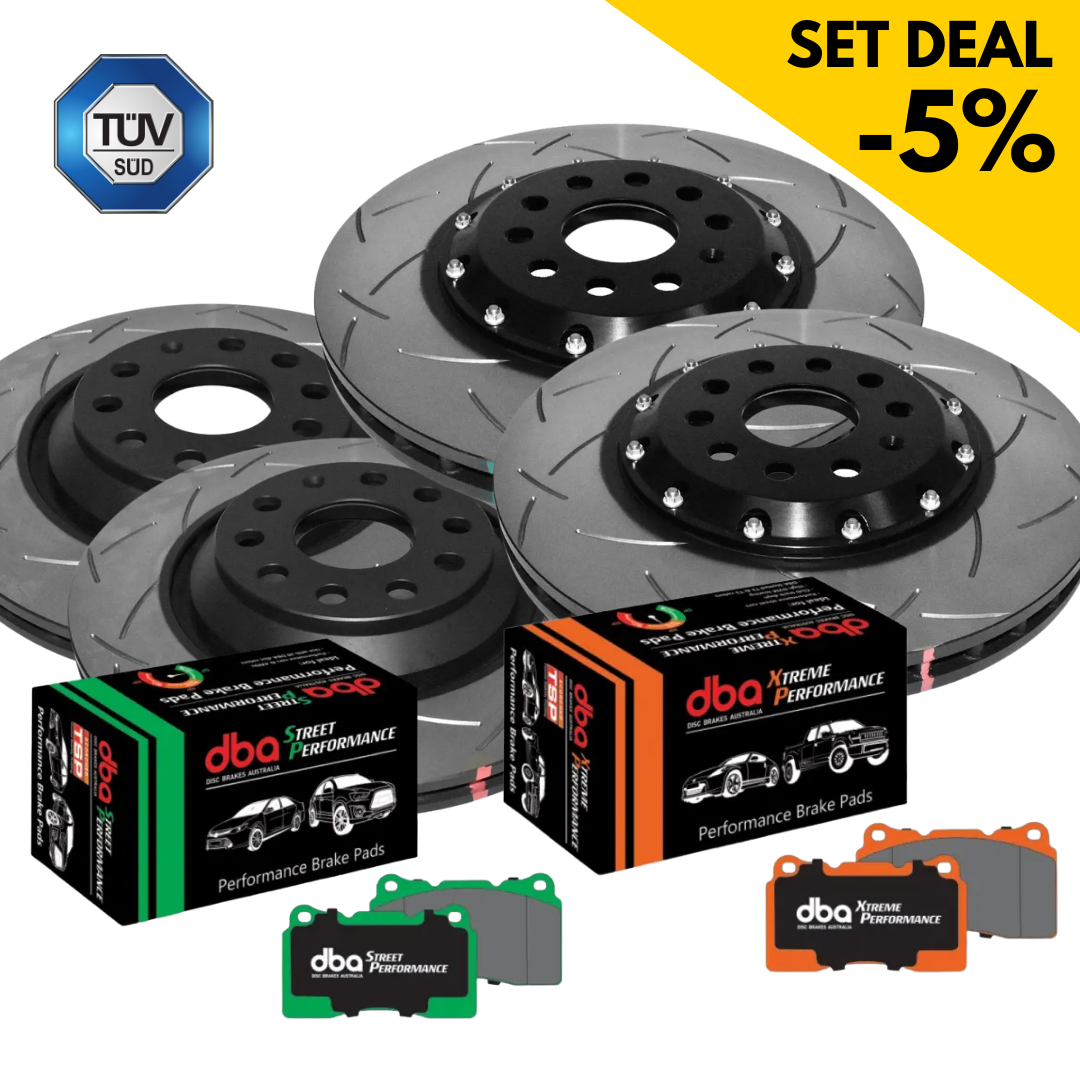

Bremsen Kit - Bremsscheiben + Bremsbeläge Vorder- & Hinterachse (DBA52830BLKS + DBA42809S + DB8849XP + DB2415SP)
Availability for pickups could not be loaded
Mit diesem Set sparen Sie direkt 5% im Vergleich zu den Einzelteilen
Product information:
- Ideal for high-performance applications
- 2-piece performance windshield with patented T3 slot design
- Pot made of particularly lightweight 6061 T6 aircraft-grade aluminum
- High machining quality & iron alloy with high carbon content
Lieferumfang des Kits DBA42809S-8850XP
- 1x DBA52830BLKS - 5000 Series T3 Vorderachse (2 Bremsscheiben)
- 1x DBA42809S - 4000 Series T3 Hinterachse (2 Bremsscheiben)
- 1x DB8849XP - Bremsbeläge Xtreme Performance | Vorderachse
- 1x DB2415SP - Bremsbeläge Street Performance | Hinterachse
Technische Informationen
Bremsscheiben Vorderachse:
- Durchmesser [mm]: 340
- Windshield ventilation: Kangaroo Paw
- Number of holes: 5
- Inner diameter [mm]: 65
- Mindestdicke [mm]: 28
- Dicke [mm]: 30
- Höhe [mm]: 49.7
- Stufe: Stufe 5
- Technical Bulletins: Bedding in Brakes
- Technical Bulletins: How to clean a Disc Rotor before fitting
- Technical Bulletins: Motorsport - Important Info
- ECE R90-Nummer: E11*90R02/06*60512*00
- Gesamtgewicht [kg]: 9.4
Bremsscheiben Hinterachse:
- Diameter [mm]: 310
- Windshield ventilation: Kangaroo Paw
- Number of holes: 5
- Inner diameter [mm]: 65
- Minimum thickness [mm]: 20
- Thickness [mm]: 22
- Height [mm]: 48.5
- Level: Level 4
- Technical Bulletins: Bedding in Brakes
- Technical Bulletins: How to clean a Disc Rotor before fitting
- Technical Bulletins: Motorsport - Important Info
- ECE R90 number: E11*90R02/06*60524*00
- Total weight [kg]: 7.11
Bremsebeläge Vorderachse:
- Breite [mm]: 175.3
- Höhe [mm]: 69.7
- Dicke des Bremsbelags [mm]: 18.8
- FMSI: 8849-D1633
- OEM: 3C0698151H
- Achse: Vorne
- ECE R90-Nummer: E11 R90-02A01584/49926
- Gesamtgewicht [kg]: 2.85
Bremsebeläge Hinterachse:
- Width [mm]: 123
- Höhe [mm]: 61.3+56.4
- Dicke des Bremsbelags [mm]: 15
- FMSI: 8996-D1761
- OEM: 8V0698451A, 3Q0 698 451
- Axle: Rear
- Gesamtgewicht [kg]: 1.19
