Set: TC Turbos X610 - K16 turbocharger + 3.5" turbo inlet + manifold gasket set - Audi RS3 TTRS RSQ3 - CEPA CZG

Normal price €4.799,00
Normal price €5.089,00 Selling price €4.799,00
-€290,00
incl. VAT.
Turbocharger: New part
  • American Express
  • Apple Pay
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Store Pay
  • Union Pay
  • Visa
Normal price €4.799,00
Normal price €5.089,00 Selling price €4.799,00

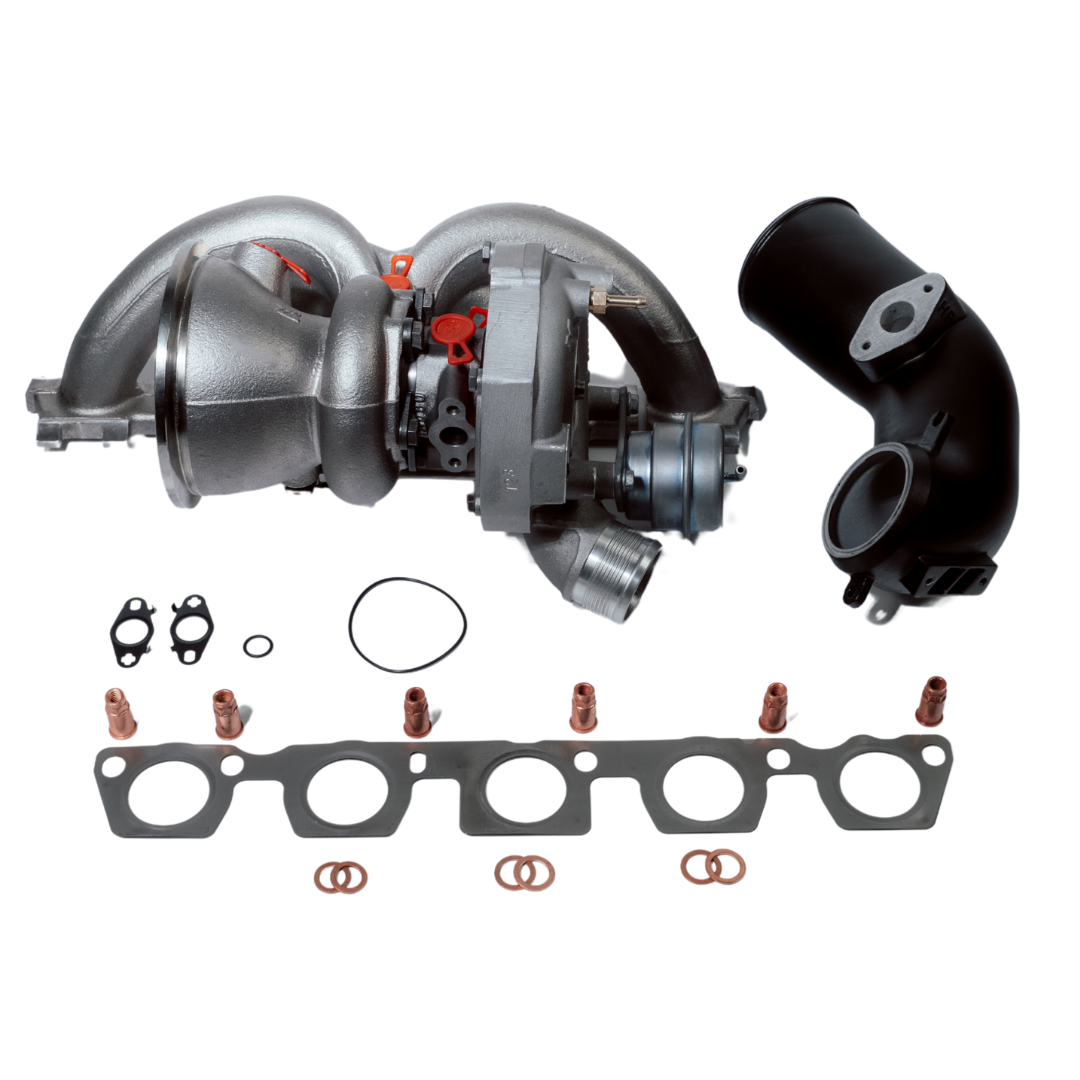

Scope of delivery:

  • X610 Turbocharger TC Turbos
  • 3.5" Turboinlet
  • Manifold gasket set

Suitable for:

  • Audi RS3 8P CEPA
  • Audi RS3 8V1 CZGB
  • Audi TTRS 8J CEPA
  • Audi RSQ3 8U CZGA

The TC Turbos X610 is based on an original K16 CEP CZG steel engine 2.5 TFSI Borg Warner turbocharger. It can be used as a direct replacement for the original turbocharger in all CEP and CZG models. The TC610XT is a further development of its predecessor, the TC550XT, which uses the same robust bearings. A newly developed exhaust gas turbine has not only improved the response by more than 300 rpm compared to the 550XT, but also increased the peak power by a further 35 hp.

In order to achieve the extra power, the turbocharger is being reworked on both the fresh air and exhaust sides. Its compressor housing is milled accordingly in order to be able to use the new 11-blade compressor. The exhaust manifold is also machined in order to be able to run the corresponding exhaust turbine profile. The enlargement of the compressor wheel allows for more air volume and can therefore enable more charge (boost pressure / power). This is only possible in conjunction with the exhaust gas turbine wheel, which has also been enlarged in balance and adapted to the design of the compressor wheel. At the heart of the X610 is its bearing. This has been designed to be significantly larger than in series production and in comparison to corresponding competitors in order to prevent damage caused by the turbocharger overspeeding and to withstand the toughest loads. Thanks to its extremely robust bearings, it can also be used on circuits and race tracks under continuous load without any problems.

The response behavior of the X610 is similar to that of a series turbocharger. There is only a difference of 280 rpm in response between the X610 and a series turbocharger. The response when changing the throttle load is at series level, although the peak output can be up to 300 hp higher than series.

The following performances are possible with the turbocharger with the appropriate fuels and planned additional hardware measures:

98 octane (EU) = 500hp
Front charge air cooler (HP Sport series), turbo inlet (min. 90mm), intake system (min. 90mm), downpipe (90mm), 12mm high-pressure pump,

100 octane (EU) = 540 hp
Front charge air cooler (HP Sport series), turbo inlet (min. 90mm), intake system (min. 100mm), downpipe (90mm), high-pressure pump 12mm, spark plugs NGK-R, pressure pipe (min. 65mm), exhaust system from catalytic converter (CEP),

102 octane (EU) = 600 hp
Front charge air cooler (HP Sport series), turbo inlet (min. 90mm), intake system (min. 100mm), downpipe (90mm), high-pressure pump 12mm, spark plugs NGK-R, pressure pipe (min. 65mm), exhaust system from catalytic converter (CEP),

E85 / XE85 = 640 hp
Front charge air cooler (HP Sport series), turbo inlet (min. 90mm), intake system (min. 100mm), downpipe (90mm), high-pressure pump 12mm, spark plugs NGK-R, pressure pipe (min. 65mm), exhaust system from catalytic converter (CEP), mechanical blow-off,

We have various performance kits to match the X610. We can also supply the right software for every fuel. With our flash tool, the vehicle can be programmed anywhere in the world. This applies to the engine and transmission control unit. Please ask for prices.



Current delivery time: approx. 7-10 working days (used part conversion)

Please note: In accordance with our General Terms and Conditions, we would like to expressly point out once again that all articles that are not expressly marked with a TÜV / EC approval do not have approval in the area of the StVo. These articles must therefore be type-approved by the user before they can be used on public roads. Otherwise, these products may be used in racing. This article is not permitted in the area of the StVZO and leads to the loss of the operating license and insurance cover. This modification is only for motorsport and competition purposes at closed events.

- Discoloration occurs on the silencers, pipe and tailpipe of all exhaust system components during operation. These are material-related changes that are not covered by the warranty/guarantee of the item and have no negative effect on the use or technical properties of the item.
