Voll einstellbare Querlenker (Hinterachse) Uniball für Audi TTRS & RS3
Availability for pickups could not be loaded
When used on the racetrack, it is not possible to set the correct rear camber with the OEM handlebars. The more the OEM handlebars are loaded, the more the rubber on the handlebars deforms and the precise setting is lost. Now you can easily set and maintain the desired camber on your racing vehicle.
For this reason, we have developed adjustable rear wishbones that use metal-to-metal uniball and ball joints, as used in the Porsche RS series (GT2RS, GT3RS). Extensively tested on our track TTRS.
Product functions:
- Adjustment of the wishbone angle without removing the wishbone. With most other products, the control arm must be removed for adjustment. The tedious adjustment of the vehicle in the workshop during wheel alignment is very time consuming.
- Ability to achieve up to -4 negative camber for maximum track use.
- No rubber to bend, so the set geometry is not lost during wheel adjustment.
- Lockout polyurethane plates lock the wishbone movement to the OEM subframe.
Features:
- CNC-gefräst aus 7075 Aluminium, schwarz eloxiert
- Linker M16-Gelenkkopf und M16-Uniball (Motorsport HEAVY DUTY-Serie von RODOBAL [Italien] mit verstärkter PTFE-Gleitschicht, vorgespannt und fest sitzend, mit geschmiedetem Körper aus vergütetem 42CrMo4-Stahl für maximale Belastbarkeit. Der Innenring ist aus gehärtetem, geschliffenem und verchromtem 100Cr6-Kohlenstoffstahl.)
- M24-Drehklemme für einfache Einstellung bei der Achsvermessung
- Schwarz verzinkte Metallbuchsen
- Befestigung für den Bremsschlauch
- Polyurethan-Pads für die korrekte Positionierung der Querlenker
- Gummienden zum Schutz der M16-Gelenkköpfe
- Exzentrische Sperrplatten (zwei Positionen – 4 zentrale und 4 5-mm-Einstellung)

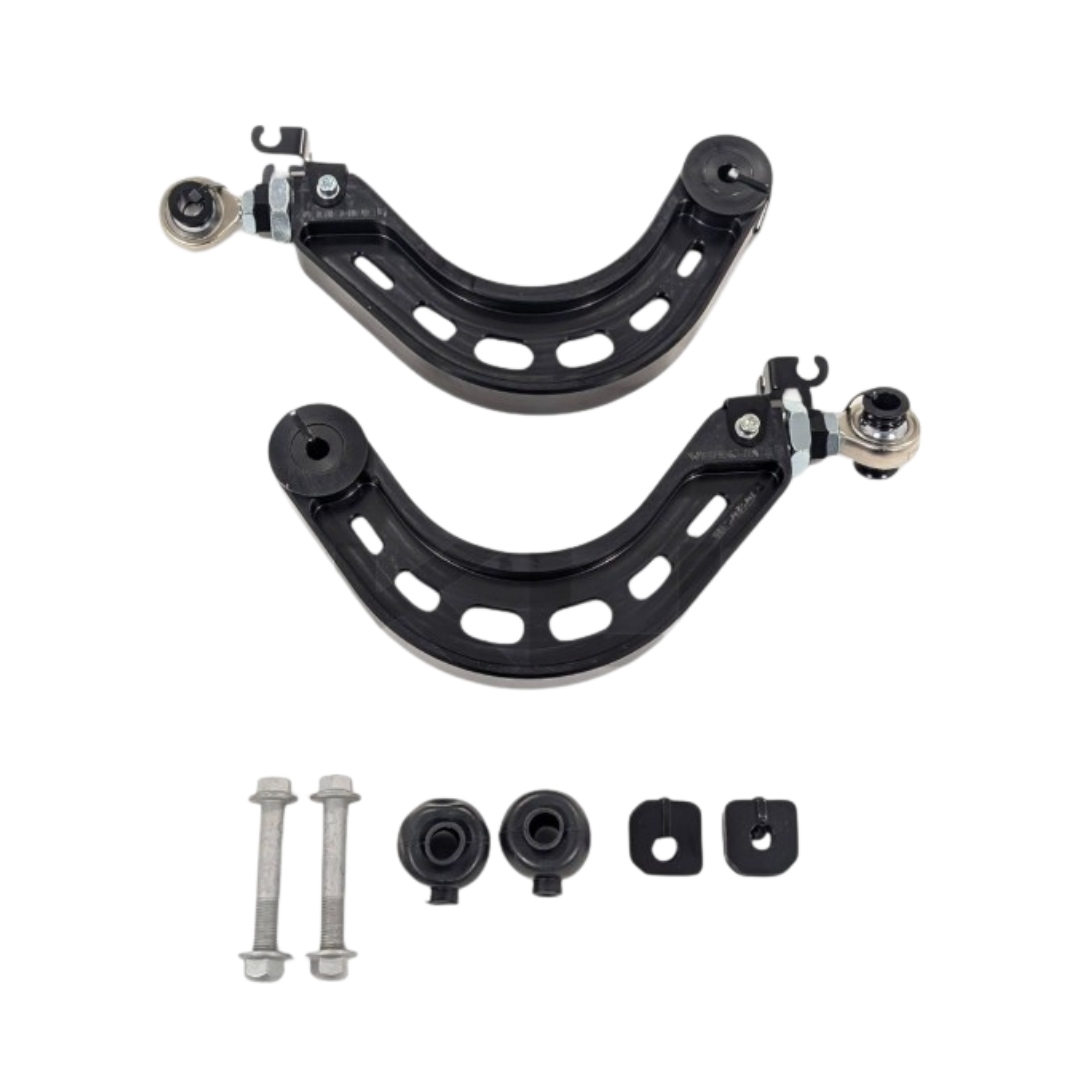

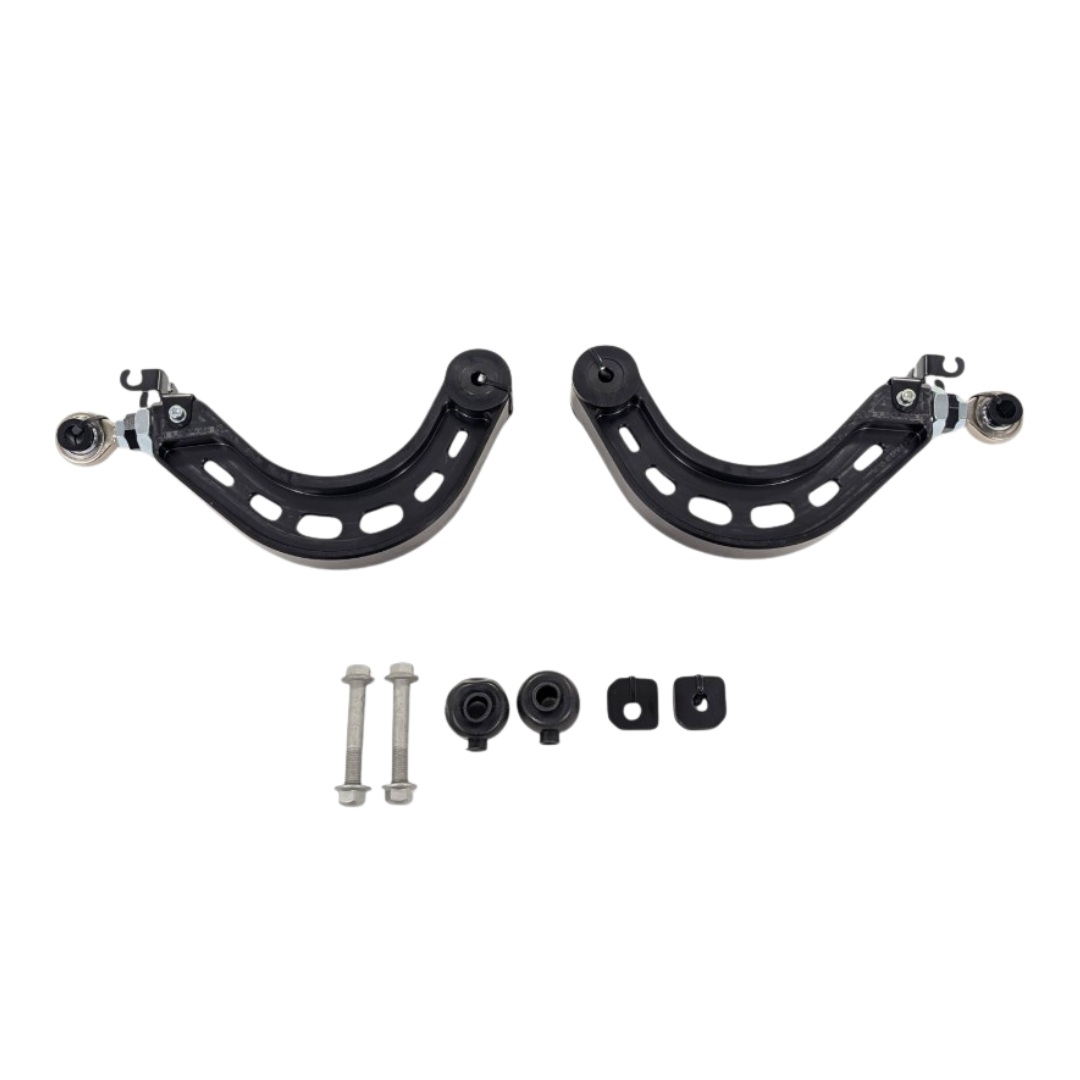

Scope of delivery:
- Paar verstellbare Querlenker hinten
- 2 Gummi-Staubschutzmanschetten für Gelenkköpfe
- 8 Exzenter-Sicherungsscheiben
- Gedruckte Einbauanleitung
Used in cars (type numbers in brackets):
- 2022 - Now Audi A3/S3/RS3 (8Y)
-
2005 - 2013 Audi A3/S3/RS3 (8P)
- 2015 - 2021 Audi A3/S3/RS3 (8V/8V.5)
-
2007 - 2013 Audi TT/TTS/TTRS (8J)
- 2015 - Now Audi TT/TTS/TTRS (8S)
-
2007 - 2009 Volkswagen Eos (MkV)
-
2010 - 2013 Volkswagen Eos (MkVI)
-
2006 - 2009 Volkswagen Jetta/GTI/GLI/Rabbit/R32 (MkV)
- 2010 - 2014 Volkswagen Golf/GTI/Rabbit/R (MkVI)
- 2015 - 2020 Volkswagen Golf/GTI/R (Mk7)
- 2020 - Now Volkswagen Golf/GTI/R (Mk8)
- 2006 - 2013 Volkswagen Passat
- 2008 - 2013 Volkswagen Tiguan
-
2010 - 2015 Volkswagen Jetta/GLI (MkVI)
Replaced:
- 1K0505323N / 1K0 505 323 N
- 5Q0505323C / 5Q0 505 323C
Note:
Only available for off-road, track and racing use. The installation of this rear trailing arm kit leads to an additional transmission of noise, vibrations and roughness into the interior.
Unless otherwise indicated, all articles and services are racing articles without guarantee / warranty and without STVO approval.
The same applies to modifications made to the vehicle. The performance values offered are average values on ARAL 102 OKTAN fuel, which may deviate accordingly due to inferior fuel or wear on the vehicle.
No acceleration times are guaranteed. Subsequent misfueling may cause damage to the vehicle. No guarantee / warranty is assumed for this!
HPerformance does not assume any mobility warranty / costs for the duration of the conversion or any resulting delays.
Scheduled appointment periods are not binding and may vary.
All services are special and custom-made products that are excluded from the statutory right of return.
No warranty is assumed for products that are not installed in a specialist workshop by trained specialist personnel.
Work on motor vehicles may only be carried out by trained specialists. In addition to product malfunctions, installation errors can also lead to dangerous technical and possibly legal consequences for the vehicle.
Therefore, please have all conversions carried out by a specialist vehicle workshop of the guild.
If no instructions for installing a product are available for download in the online store, these are not available
- No installation advice / installation instructions are provided by telephone.
If vehicles have already been modified beforehand, additional costs may be incurred. Please note that our TÜV-approved/registrable products are not necessarily compatible with products from other manufacturers ! Please check in advance whether your already installed hardware parts, which are not from HPerformance, are TÜV-compliant with our products!
Discoloration occurs on the silencers, pipe and tailpipe of all exhaust system components during operation. These are material-related changes that are not covered by the warranty/guarantee of the item and have no negative effect on the use or technical properties of the item.
