Rear spring mounting wishbone and wheel bearing housing inserts MQB Audi RS3 S3 A3 8V Golf Mk7
Availability for pickups could not be loaded
When used on the racetrack, it is impossible to set the correct rear camber with the original handlebars. The more the original handlebars are loaded, the more the rubber on the handlebars is compressed and the precise setting is lost. Now you can easily set and maintain the desired camber on your racing vehicle.

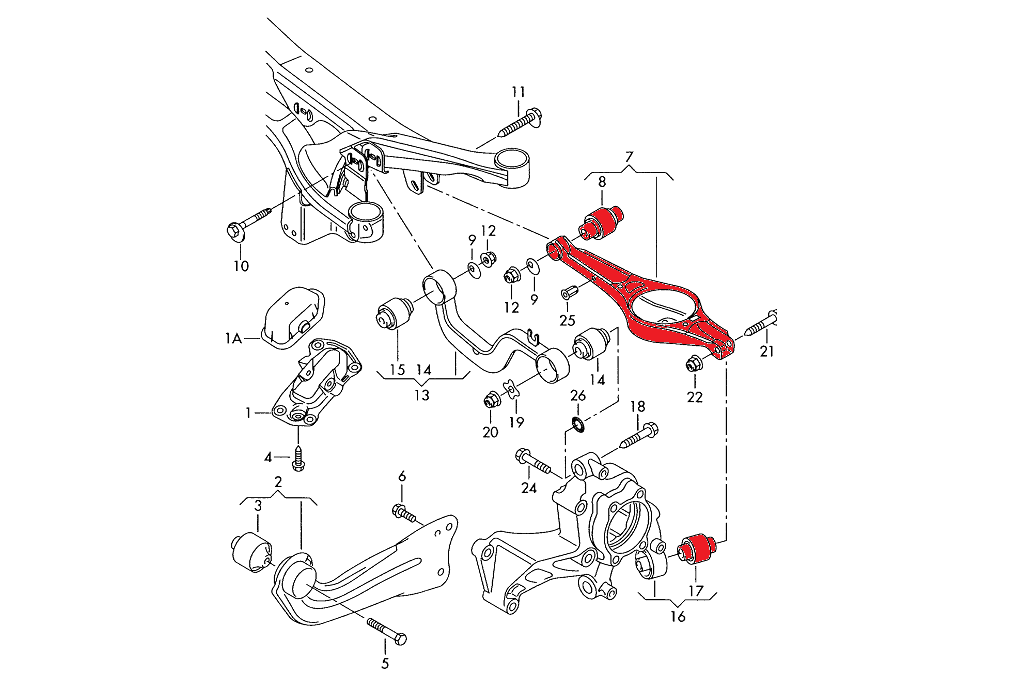

For this reason, we have developed inserts for the wheel bearing housing and the rear lower wishbone on which the spring sits. Our inserts are made of metal-to-metal uniballs, as used in the Porsche RS series (GT2RS, GT3RS). Extensively tested on our Track TTRS.
Product functions:
- No rubber that can bend. The geometry set during adjustment is retained in curves.
Properties:
- CNC-machined from 7075 aluminium, black and silver anodized.
- M18 and M16 Uniball
- metal bushes, black galvanized.
Scope of delivery:

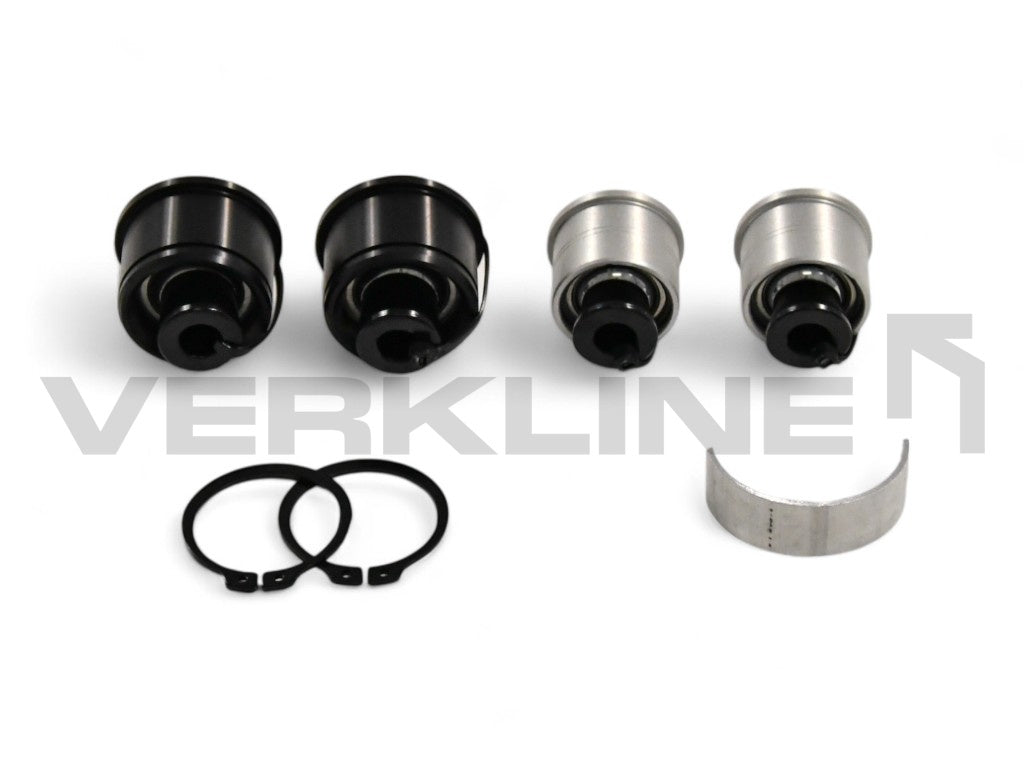

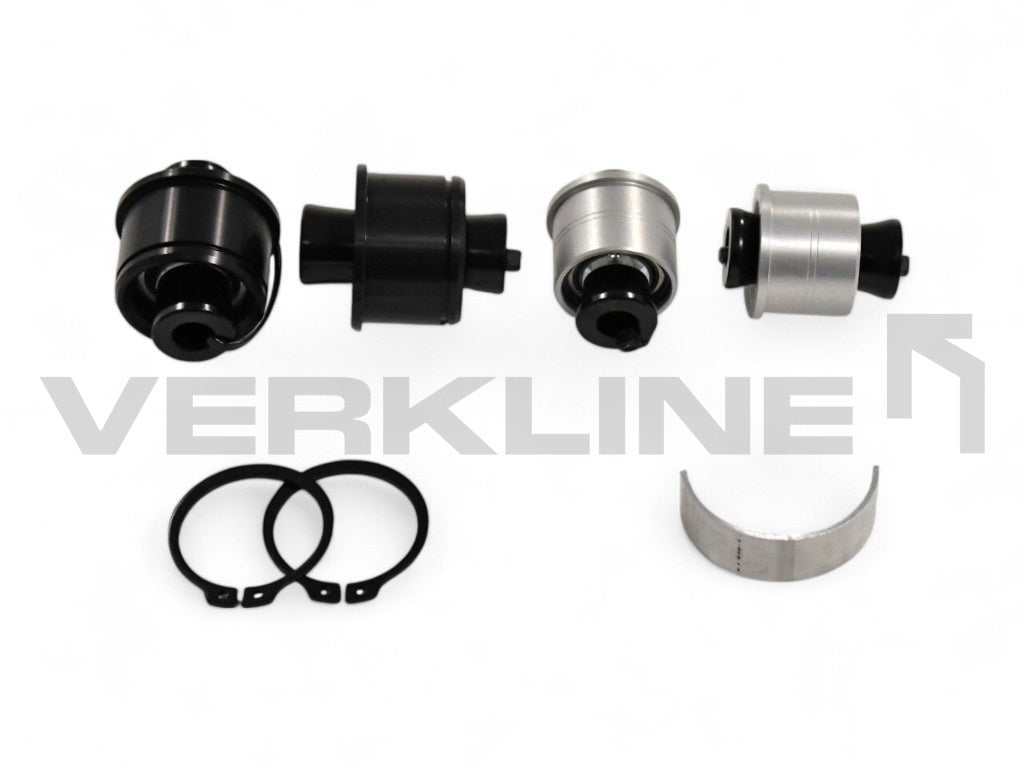

- four inserts (kit for one vehicle) for all-wheel aluminum wheel hub housings.
- printed installation instructions.
Not for vehicles with metal rear wheel bearing housings. Use ELA-068 This product is only suitable for aluminum wheel axles.
Used in vehicles (type numbers in brackets):
2013 Audi A3/S3/RS3 (8Y, 8P & 8PFL MQB)
2015 Audi TT/TTS/TTRS (8S MQB)
2013 Volkswagen Golf/GTI/R (Mk7 MQB Mk8)
2017 Audi Q2 (quattro)
Replaced:
- 1K0505553A / 1K0 505 553A - steering knuckle bushing
- 5Q0505553 / 5Q0 505 553 - inner bushing
Note:
The installation of this rear insert kit leads to an additional transmission of noise, vibrations and roughness (NVH) into the interior.
