Brake Kit - 5000 Series + 4000 Series T3 Slotted & Xtreme Performance Brake Pads (DBA52842SLVS + DBA42831S + DB1865XP)
Currently viewed by people
Availability for pickups could not be loaded

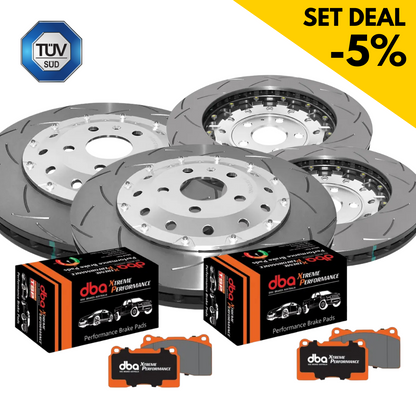

With this set you save 5% directly compared to the individual parts
Product information:
- Ideal for high-performance applications
- 2-piece performance windshield with patented T3 slot design
- Pot made of particularly lightweight 6061 T6 aircraft-grade aluminum
- High machining quality & iron alloy with high carbon content
Scope of delivery of the DBA42809S-8850XP kit

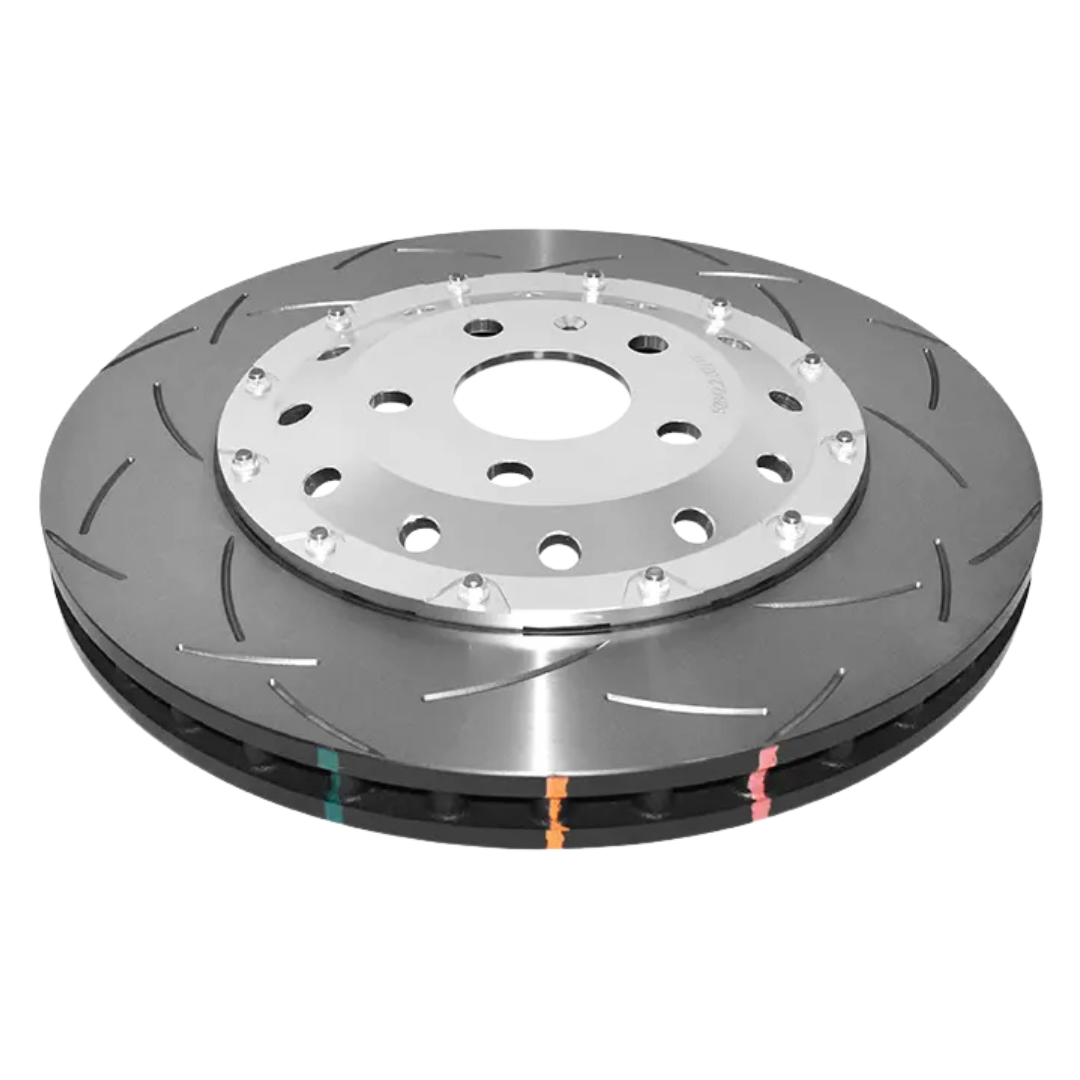

- 1x DBA52842SLVS (2 brake discs) Front axle

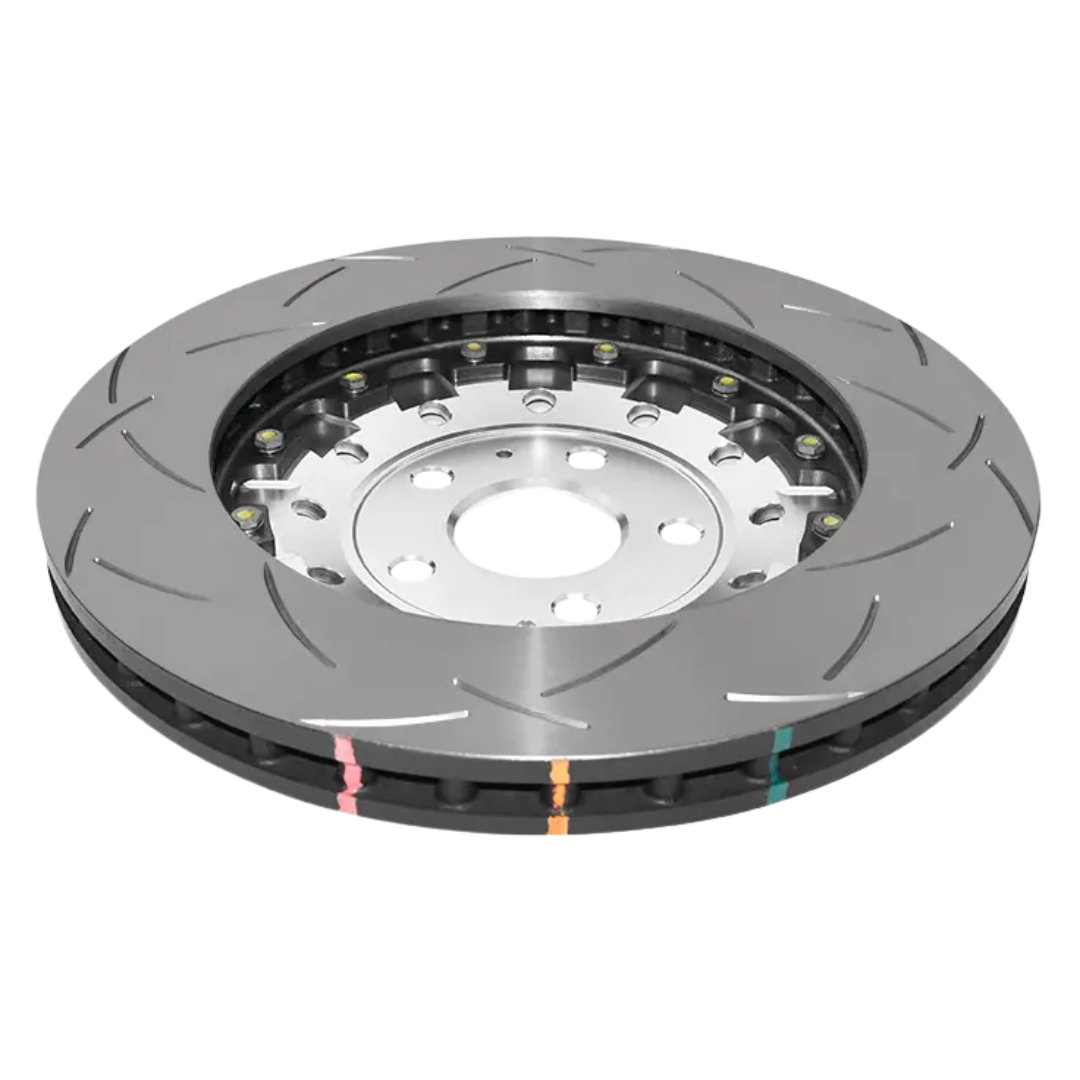

- 1x DBA42831S (2 brake disks) Rear axle

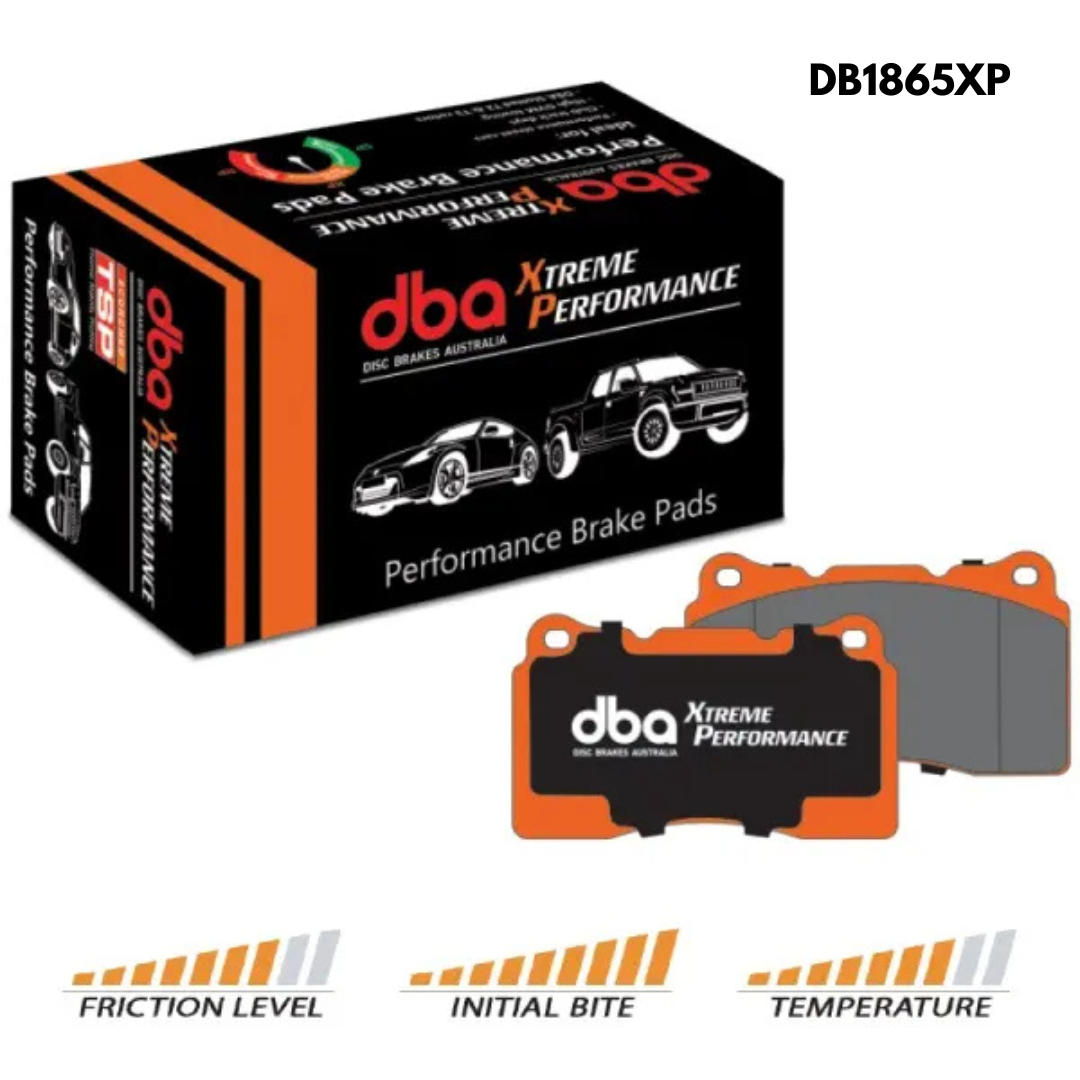

- 1x DB1865XP - Brake pads Xtreme Performance | Rear axle

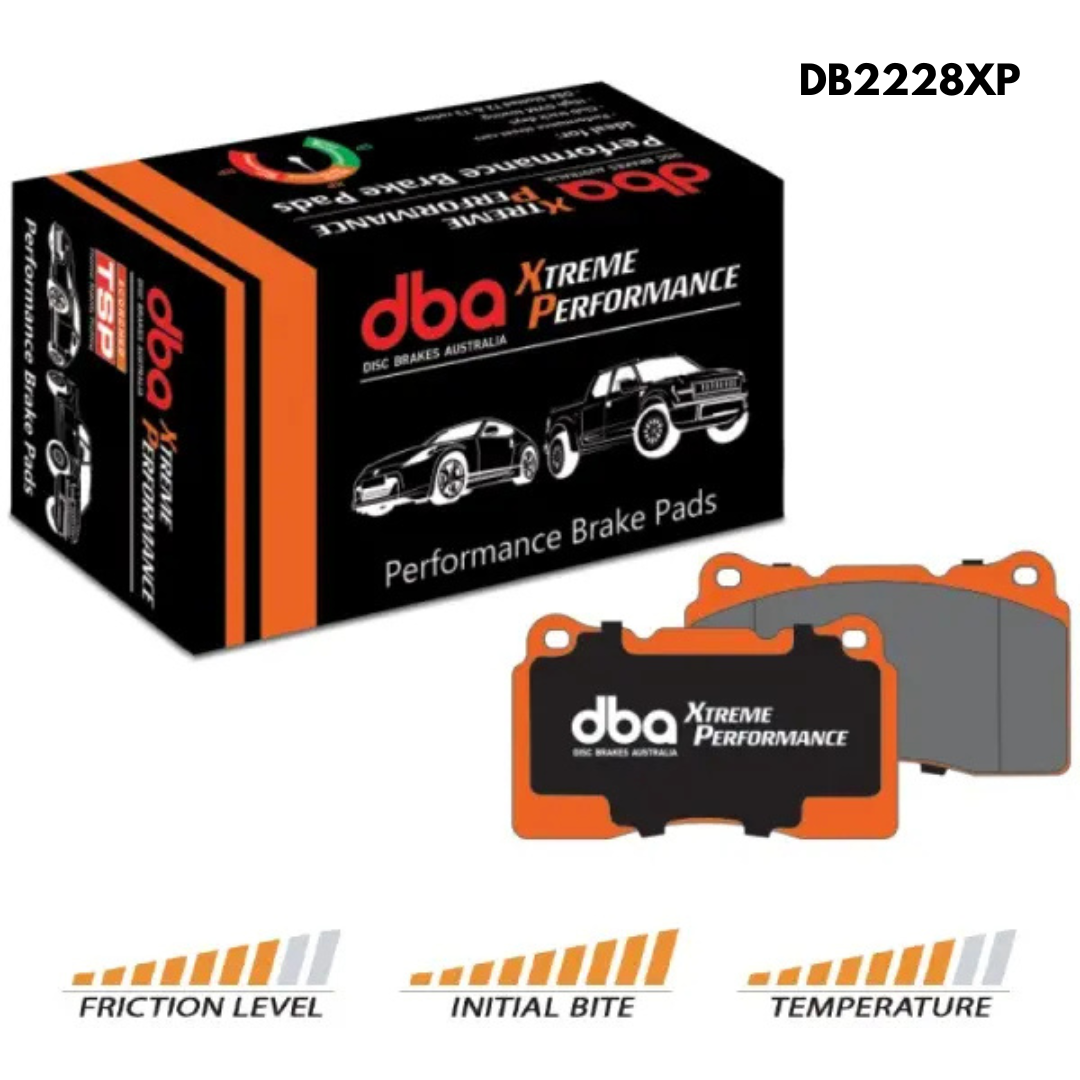

- 1x DB2228XP - Brake pads Xtreme Performance | Front axle
Technical information
Brake disks front axle:
- Diameter [mm]: 370
- Windshield ventilation: Kangaroo Paw
- Number of holes: 5
- Inner diameter [mm]: 65
- Minimum thickness [mm]: 30,4
- Thickness [mm]: 32
- Height [mm]: 49.7
- Pitch circle [mm]: 112
- Level: Level 5
- Technical Bulletins: Bedding in Brakes
- Technical Bulletins: How to clean a Disc Rotor before fitting
- Technical Bulletins: Motorsport - Important Info
- OEM: 8J0615301E
- Replacement Rotor: DBA52842.1S
- ECE R90 number: E11*90R02/06*60518*00
- Total weight [kg]: 11.17
Rear axle brake disks:
- Diameter [mm]: 310
- Windshield ventilation: Kangaroo Paw
- Number of holes: 5
- Inner diameter [mm]: 65
- Minimum thickness [mm]: 20
- Thickness [mm]: 22
- Height [mm]: 58.2
- Level: Level 4
- Technical Bulletins: Bedding in Brakes
- Technical Bulletins: How to clean a Disc Rotor before fitting
- Technical Bulletins: Motorsport - Important Info
- ECE R90 number: E11*90R02/06*60525*00
- Total weight [kg]: 6.95
Brake pads:
- OEM: 5WA698451F
- Included in the set: 2 inner pads + 2 outer pads
- Width [mm]: 122,8
- Height [mm]: 57,7
- Thickness of the brake pad [mm]: 15,2
- Height 2 [mm]: 55,7
- Total weight [kg]: 1.3
