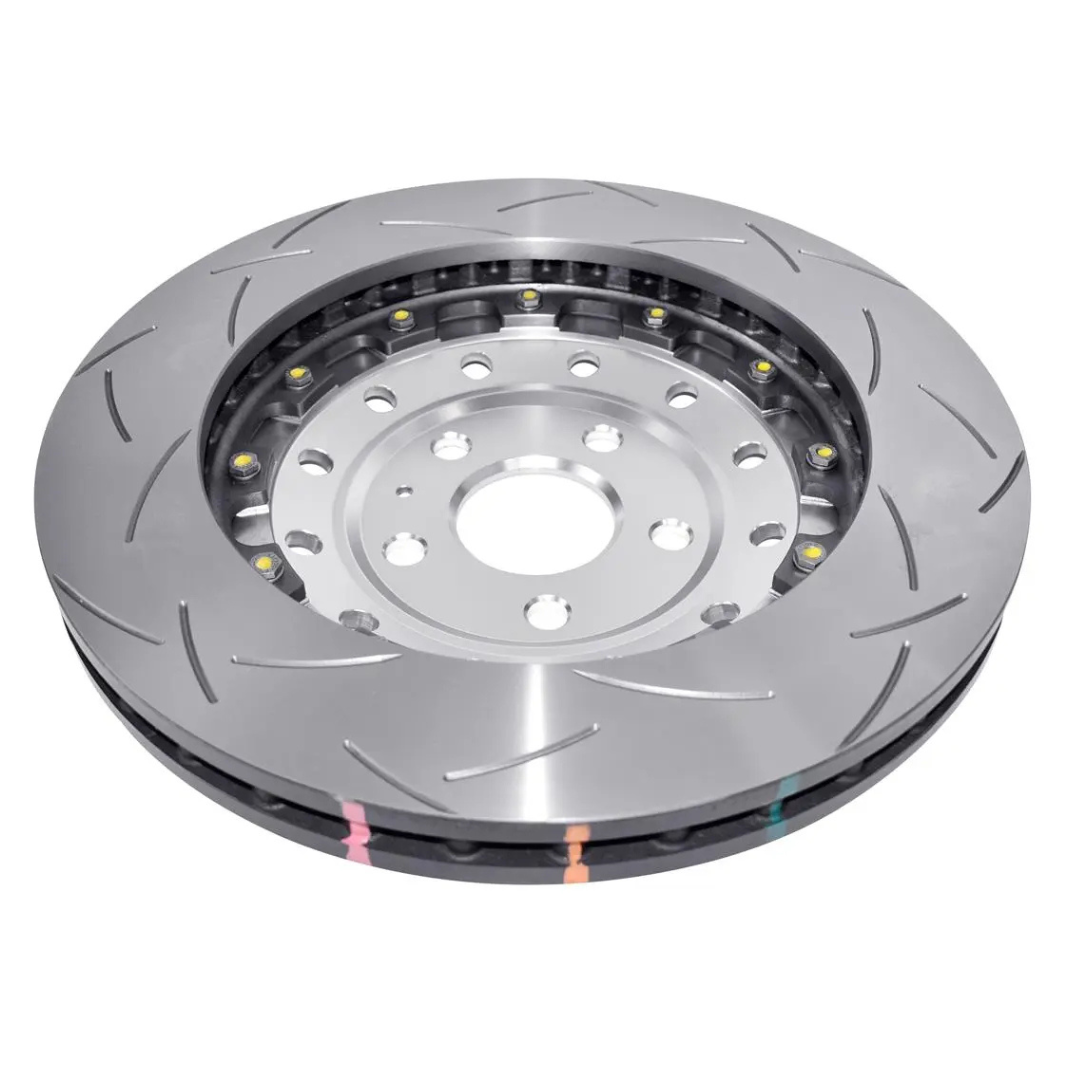

DBA Upgrade Brake 5000 Series - T3 Slotted Silver Hat - DBA53912SLVS - TTRS 8S
Availability for pickups could not be loaded
Product advantages:

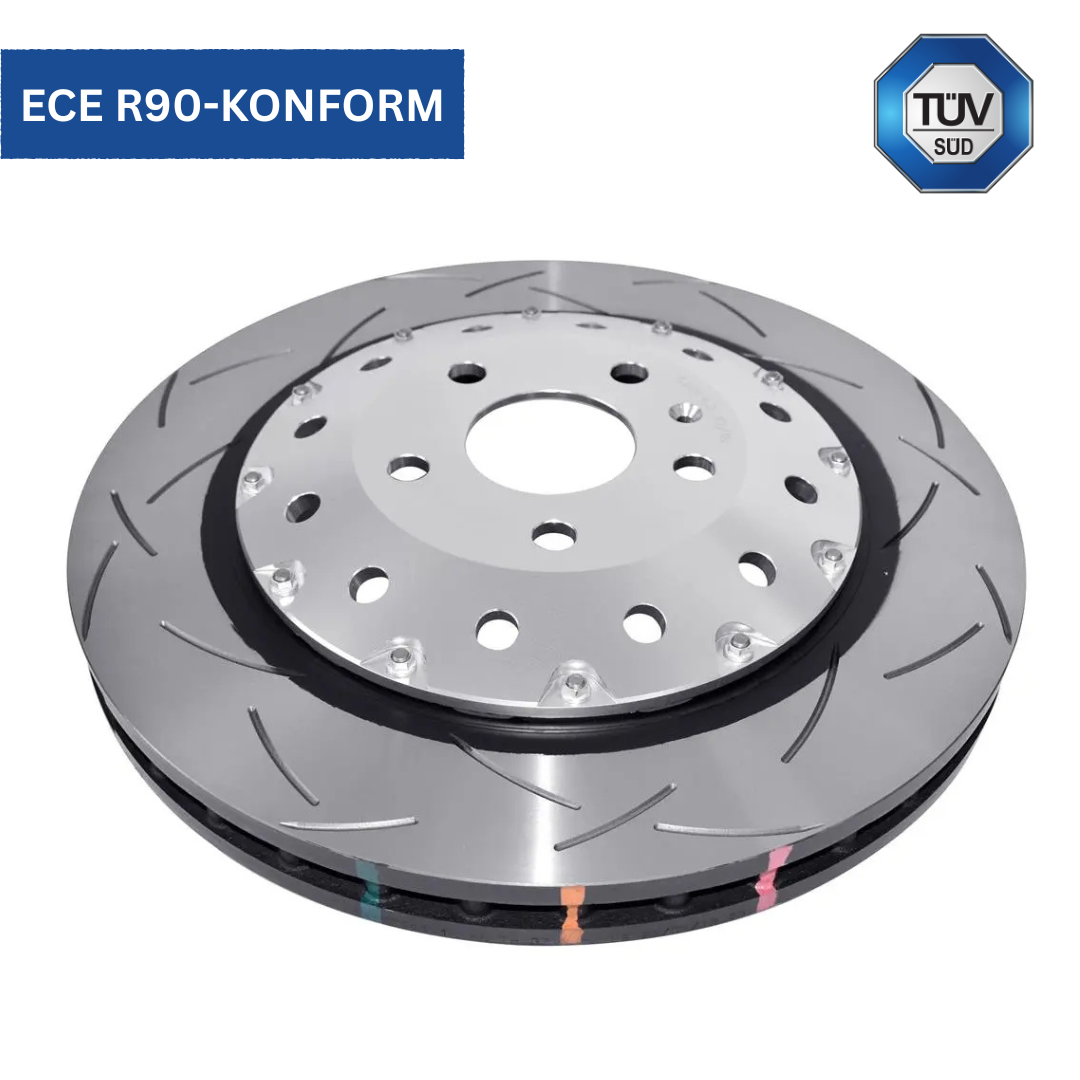

- ECE approval
- Ideal for high-performance applications
- 2-piece performance windshield with patented T3 slot design
- Pot made of particularly lightweight 6061 T6 aircraft-grade aluminum
- High machining quality & iron alloy with high carbon content
Technical information:
| Axis: |
Front |
| Diameter [mm]: |
370 |
| Window ventilation: |
Kangaroo Paw |
| Number of holes: |
5 |
| Minimum thickness [mm]: |
32 |
| Thickness [mm]: |
34 |
| Height [mm]: |
49,7 |
| Stage: |
Level 5 |
| Technical Bulletins: | |
| Technical Bulletins: | |
| Important information for motorsport | |
| Total weight [kg]: |
12 |
| Replacement rotor: |
DBA52844.1S |
| ECE R90 number: |
E11*90R-02*C01704/59750 |
| Description | Advantage | Benefit |
|
"T3 slots - 48 precise, CNC-machined slots" |
Tri-symmetrical curved slots dampen harmonic vibrations or noise | A quieter, more responsive and softer brake pedal feel |
| Additional outlet points to dissipate the gases generated by friction on the brake pad | Uniform and effective friction guaranteed at every brake stop | |
| Universal slot design | No separate brake discs required for the left and right side | |
|
The Kangaroo Paw ventilation system with 144 diamond and drop-shaped slats |
Improved heat exchange due to larger surface area | Brake fading is minimized and the braking effect of the brake discs is significantly increased |
| Improved heat exchange due to larger surface area | Extends the service life of brake pads and discs. Reduces mechanical damage and the associated costs | |
|
XG150 Special iron-carbon alloy |
Due to the increased heat capacity properties, the friction ring can withstand constant, extreme heat over a longer period of time. | Minimizes distortion and cracking and extends the service life of the friction ring |
 Thermal stability treatment (TSP)
|
A special formula developed to comply with DBA's TSP procedure | Minimizes distortion and cracking and extends the service life of the friction ring |
 Thermographic color markings
|
Thermographic markings that change color when a certain temperature is reached | Provides the driver with a clear display of the maximum brake temperatures |
| When certain temperature thresholds are reached, the markings change color permanently | This enables the driver to monitor brake disk fatigue and decide whether to replace it, and dealers can better process warranty claims. | |
 Paint protection on non-frictional surfaces
|
Less corrosion | Prevents unsightly rust formation |
| Improved appearance | Added value through the product |
 "KANGAROO_PAW")
Audi RSQ3 8U - 2.5 Turbo (2013-2018)
Please note: In accordance with our General Terms and Conditions, we would like to expressly point out once again that all articles that are not expressly marked with a TÜV / EC approval do not have approval in the area of the StVo. These articles must therefore be type-approved by the user before they can be used on public roads. Otherwise, these products may be used in racing. This article is not permitted in the area of the StVZO and leads to the loss of the operating license and insurance cover. This modification is only for motorsport and competition purposes at closed events.
- Discoloration occurs on the silencers, pipe and tailpipe of all exhaust system components during operation. These are material-related changes that are not covered by the warranty/guarantee of the item and have no negative effect on the use or technical properties of the item.
