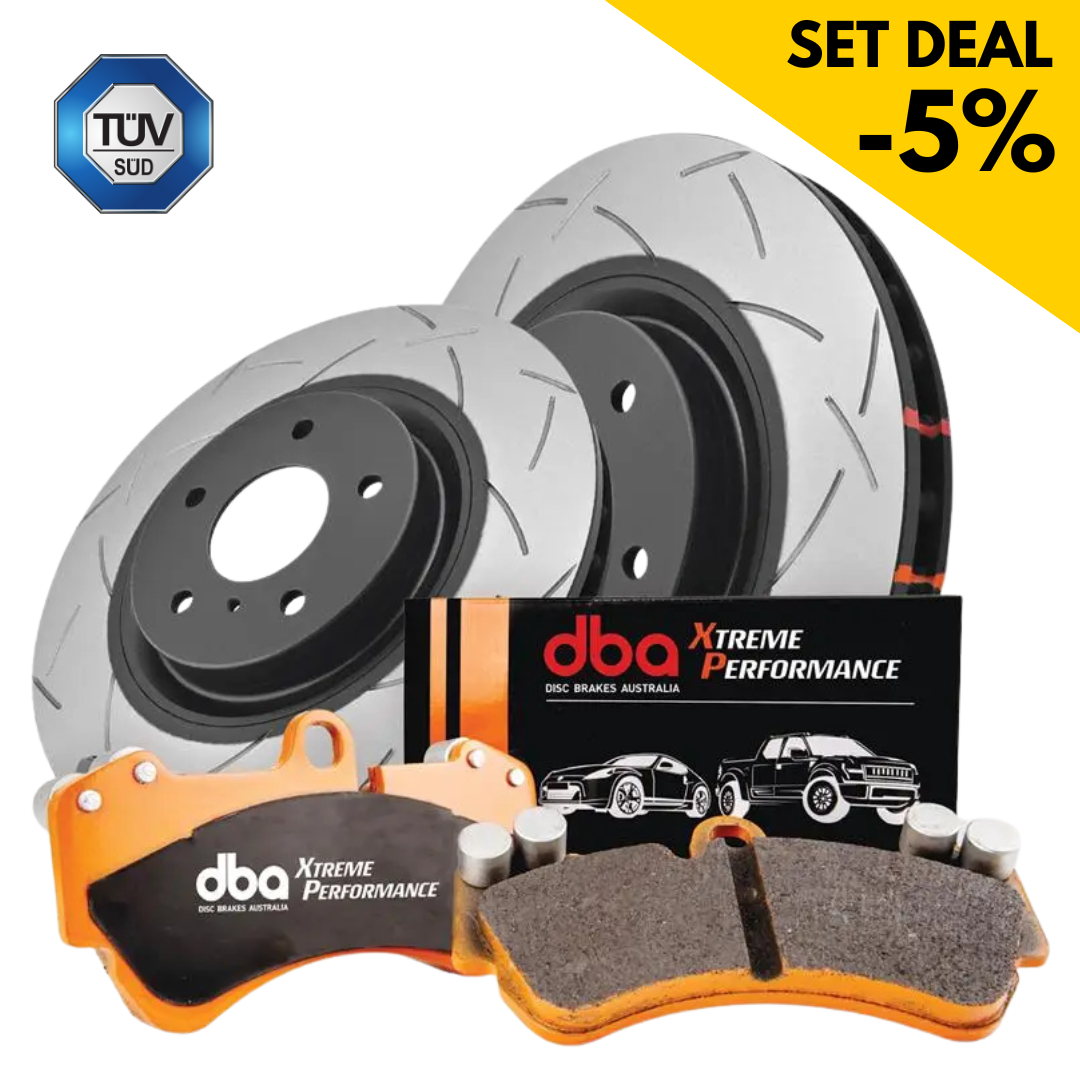

DBA42809S-15006XP - Brake Disc Kit - 4000 Series T3 Slotted & Xtreme Performance Brake Pads (2x DBA42809S + DB15006XP)
Currently viewed by people
Availability for pickups could not be loaded
Technical information

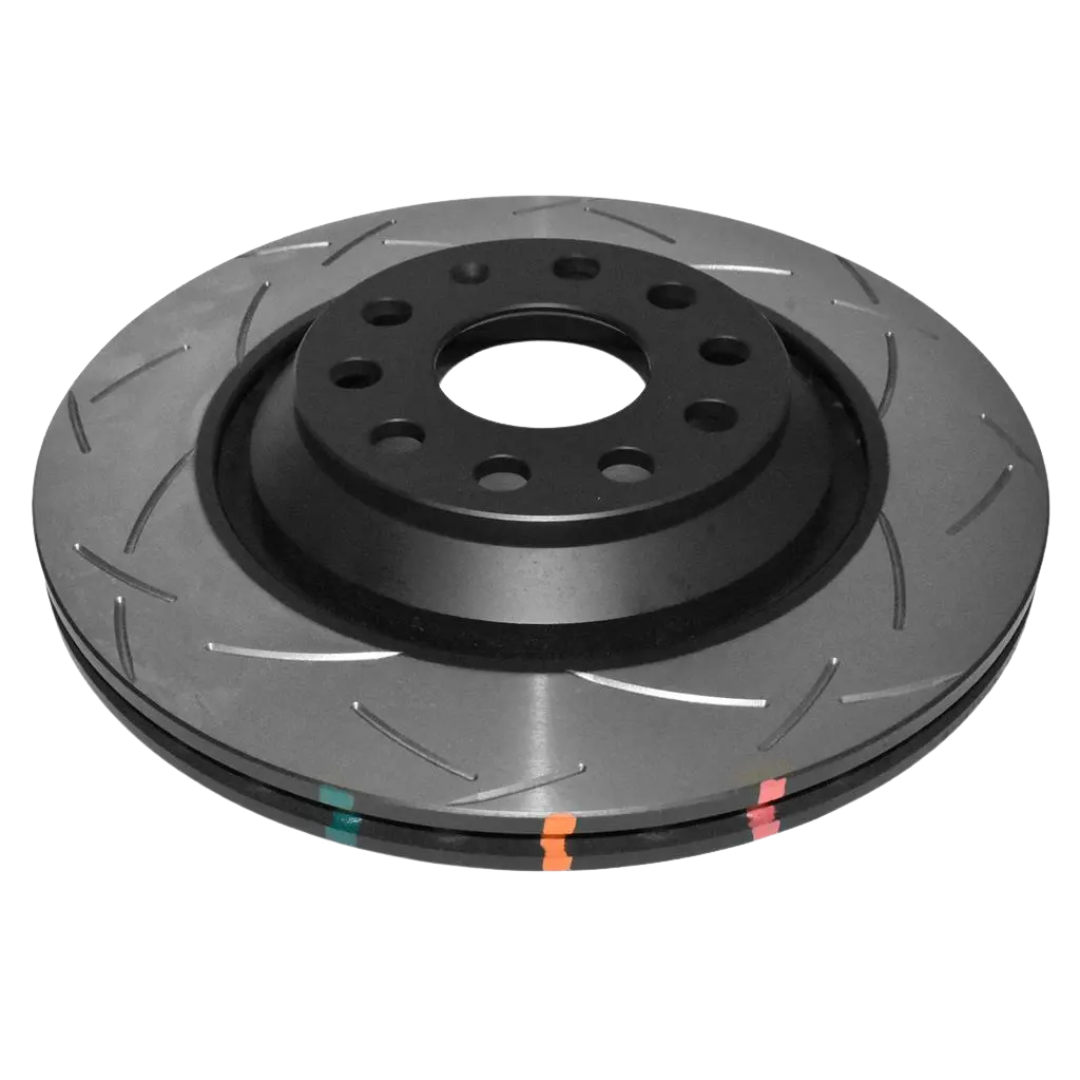

Brake disks
- Diameter [mm]: 310
- Windshield ventilation: Kangaroo Paw
- Number of holes: 5
- Inner diameter [mm]: 65
- Minimum thickness [mm]: 20
- Thickness [mm] :22
- Height [mm]: 48.5
- Stage: Stage 4
- Technical Bulletins: Bedding in Brakes
- Technical Bulletins: How to clean a Disc Rotor before fitting
- Technical Bulletins: Motorsport - Important Info
- ECE R90 number: E11*90R02/06*60524*00
- Total weight [kg]: 7.11
Brake pads:
- Width [mm]: 123
- Height [mm]: 61.3;O:56.4
- Thickness of the brake pad [mm]: 15.2
- FMSI:
- OEM: 8V0698451G
- Axle: Rear
- ECE R90 number :E11 R90-02A01584/53223
- Total weight [kg]: 1.24
Scope of delivery:
- 1x Set DB15030XP - Brake pads Xtreme Performance - Front axle
DBA's Xtreme Performance brake pads are designed for riders who want high initial bite and consistent friction at low to high temperatures. The XP range is designed for high performance applications where higher coefficients of friction are required to brake safely in extreme conditions.
DBA recommends Xtreme Performance brake pads for road and police vehicles as well as for club track days, heavy tractors and upgraded four-wheel drive vehicles.
DBA recommends T3-Slot brake discs from the 4000 and 5000 series to achieve optimum braking performance.
The numbers of the Street Performance parts from DBA are marked with the suffix (XP).
- Semi-metallic carbon fiber friction material
- G-G class friction (average coefficient of friction of 0.45µ at low to high temperatures)
- Outstanding performance at high temperatures
- Optimum even braking power up to 550℃ (1022℉)
