Dual fuel pump + line kit - Audi RS3 TTRS RSQ3 VZ5 - 400hp models 1400+hp
Availability for pickups could not be loaded
- Fuel supply over 1400PS+ on 100% alcohol
- Dual line system (original AUDI)
- Petrol rail to reduce the tendency to knock
- Maximum fuel pressure 8 bar / 136 PSI (regulated with overflow valve)
- Brushless auxiliary pump, non-return valve installed
- Suitable for alcohol, methanol and road fuel
- Auxiliary pump activated by boost pressure-dependent control
- Preset control
- Plug & Play wiring harness

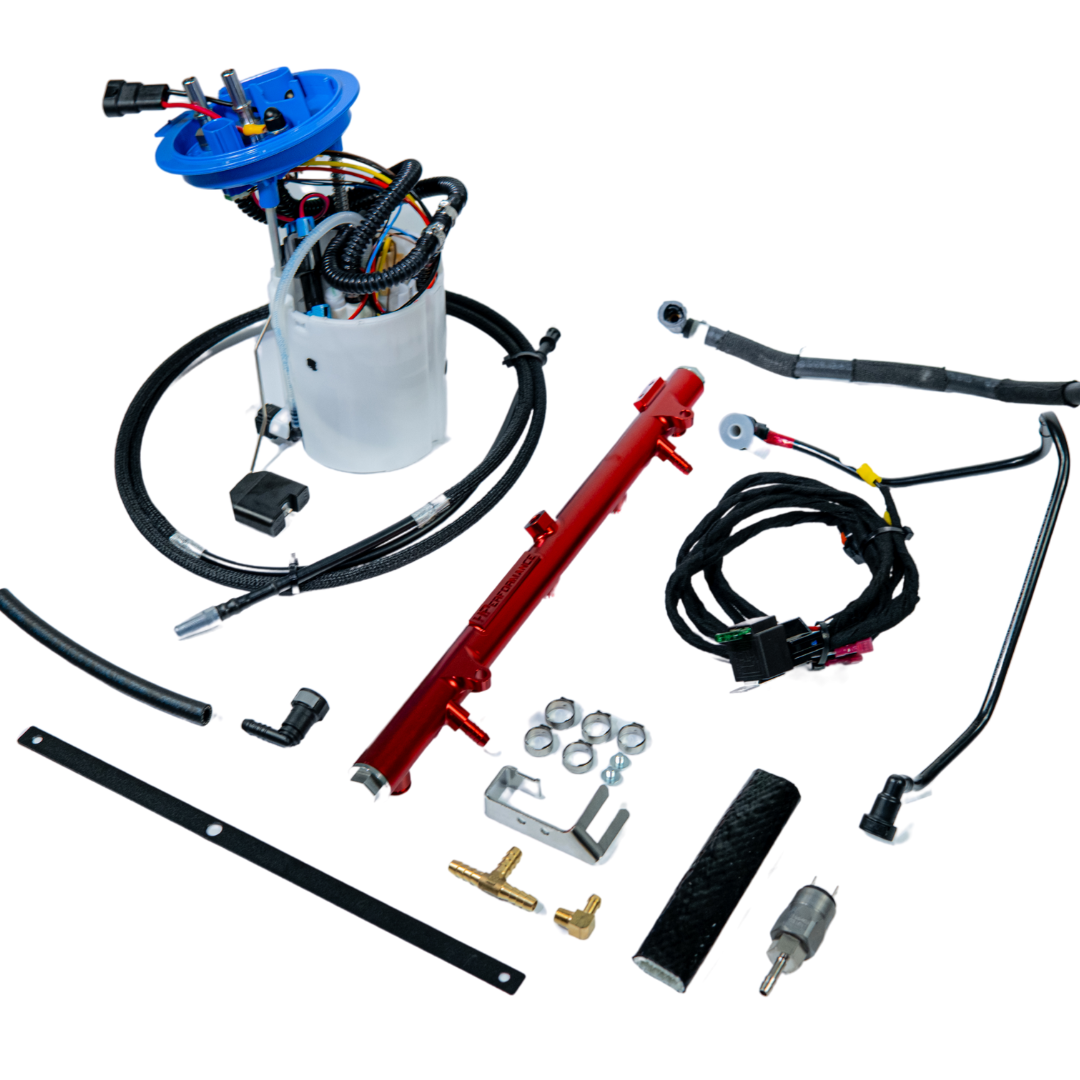

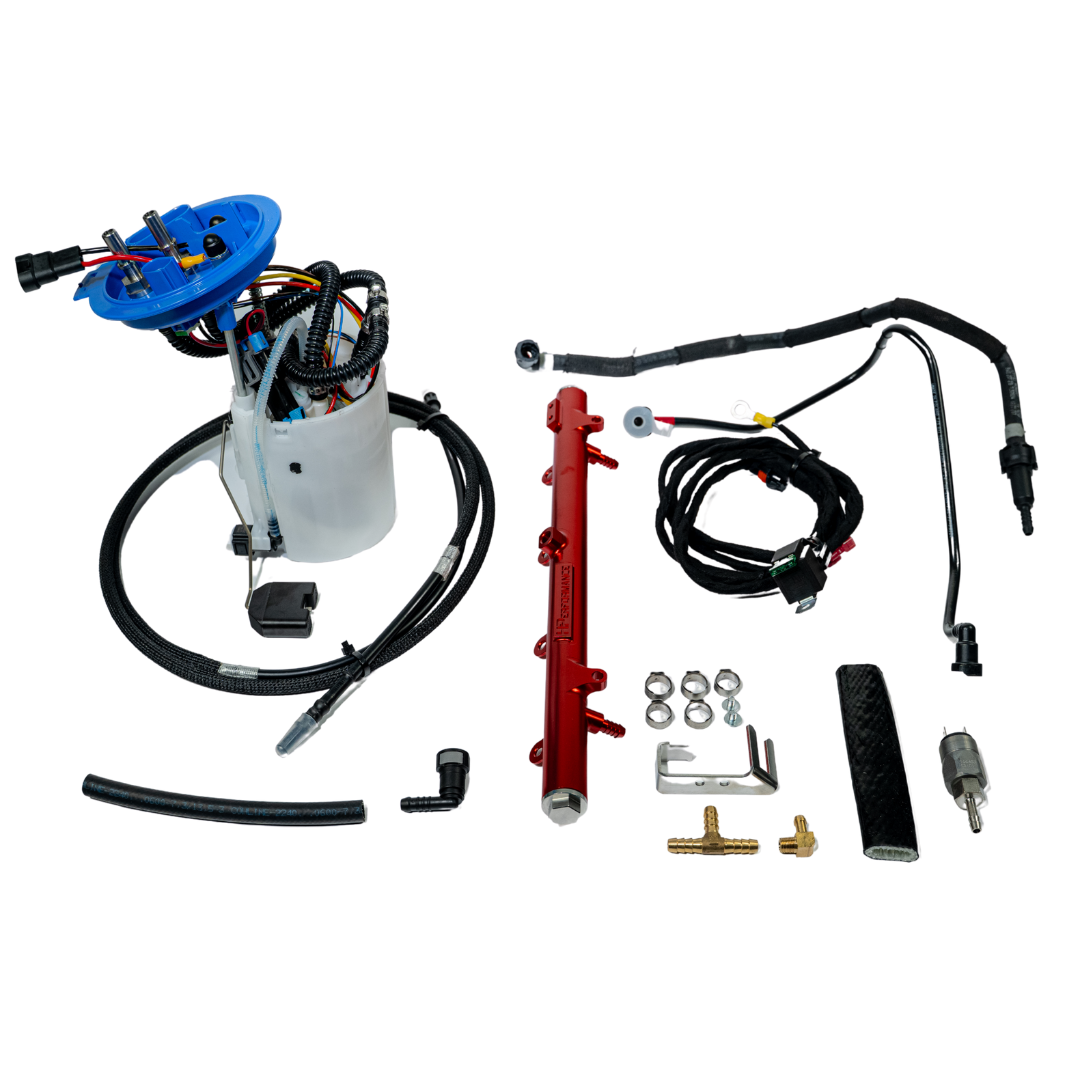

- 1 x HPerformance upgrade fuel pump
- 1 x HPerformance gasoline rail
- 1 x fuel line from the tank to the distribution in the engine compartment (original AUDI)
- 1 x connection line to the fuel rail
- 1 x connection kit incl. pressure control circuit (activation of the pump)
- 1 x vehicle-specific wiring harness (please select vehicle model)
- 1 x heat protection hose and connector
Product description:
The 1400PS+ fuel kit for all 2.5 TFSI 400PS models consists of our Twin-Line low-pressure fuel pump and the specially developed fuel rail. The fuel rail, which has 2 inlets, can exploit its full potential in this version. The second line from the fuel pump directly to the fuel rail ensures that sufficient reserves are available even with enormous delivery quantities. It is known that up to 1000 hp can be driven with one line, if two are used (as in our kit), this is a solution that has more than enough reserves at all times.

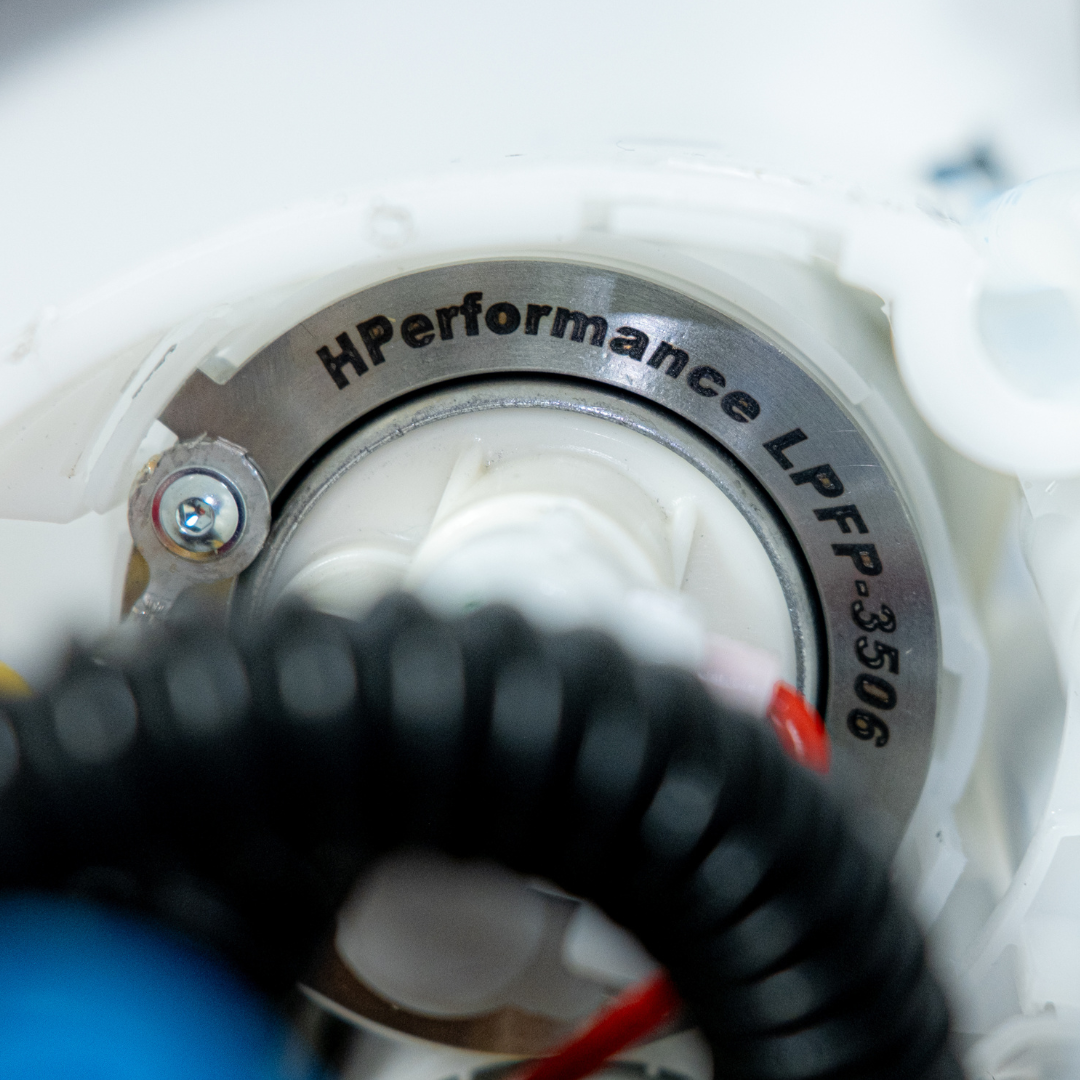

The HPerformance 1300HP+ Twin-Line low-pressure fuel pump is based on a brand new AUDI pump. In addition, a secondary brushless pump is combined with the system. This secondary pump is activated by a pressure switch via boost pressure and can be set to start at any boost level between 1 and 3.5 bar / 17 and 50 PSI. This helps to keep the fuel temperature low as the pump does not have to pump the fuel into the circuit when it is not needed. The maximum fuel pressure is 8 bar / 136 PSI to protect injectors and seals. The pump can pump gasoline as well as alcohol or methanol blended fuels. The pump is supplied with a fully plug-and-play wiring harness to fit your TTRS / RS3. The scope of delivery also includes installation instructions (download).
Please note:
In accordance with our general terms and conditions, we would like to expressly point out once again that all articles that are not expressly marked with a TÜV / EC approval do not have a license in the area of the StVo. These articles must therefore be type-approved by the user before they can be used on public roads. Otherwise, these products must be used in racing.
| Model: | RS3 8V (2017-2018), RS3 8V (2018-2020), RS3 8Y (2021-2022), RSQ3 (2019-2020), TTRS 8S (2016-2018), TTRS 8S (2020-2023) |
|---|
