Einstellbarer Ersatz-Uniball-Arm für Federquerlenker (hinten) für Audi TTRS 8J & RS3 8P
Availability for pickups could not be loaded
When used on the racetrack, correct rear axle adjustment is not possible with the original control arms. The more the original control arms are loaded, the more the rubber on the control arm is compressed and the precise adjustment is lost.

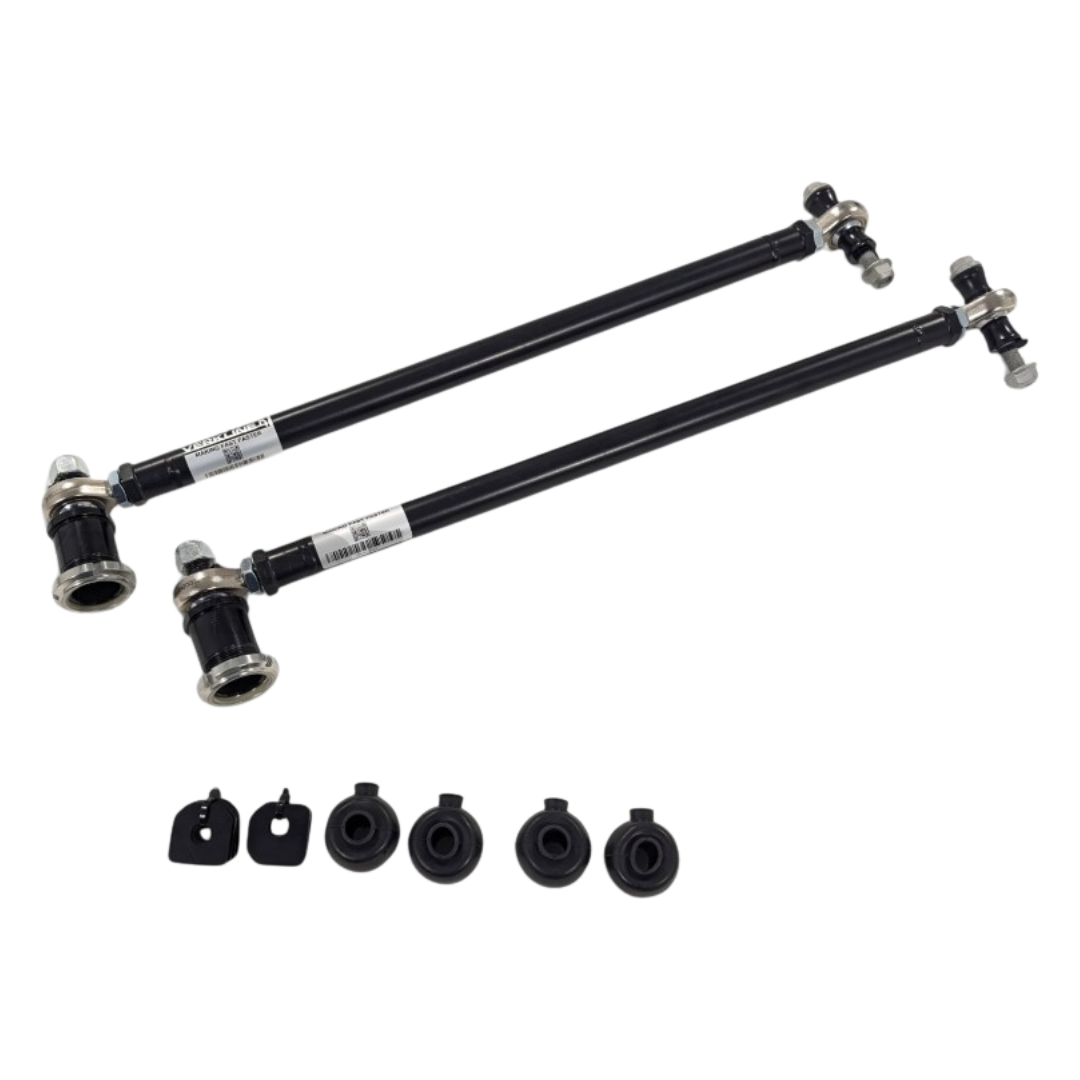

This item is a special design. Only for vehicles with modified rear suspension with offset rear wheel spring from wishbone to damper. For example KW Competition with offset spring or AST 5300 suspension. In the second picture you can see the original wishbone that this part replaces. There is no mounting option for the level sensor on the wishbone. The item is manufactured individually for each order.
Product functions:
- Leichter als OEM
- Zusätzliche Einstellmöglichkeiten
- Kein verbiegendes Gummi, dadurch bleibt die eingestellte Geometrie beim Anpassen erhalten
- Zusätzliche Spureinstellung
Produkt-Merkmale:
- T45 Leichtmetallrohre schwarz lackiert
- M16 Uniballs aus geschmiedetem Stahl, glatt und hochglanzvernickelt (nicht in China hergestellt, dieselben, die wir für unsere Rallye-Lancer-Evo-Fahrwerke verwenden; diese machen 80 % der Produktkosten aus)
- Schwarz verzinkte Metallbuchsen
- M35 Pleuelschraube
- Sicherungsscheiben zur Blockierung der Bewegung des Querlenkers am OEM-Hilfsrahmen (4 Stück à 5 mm und 4 Stück Mittelscheiben)
Scope of delivery:

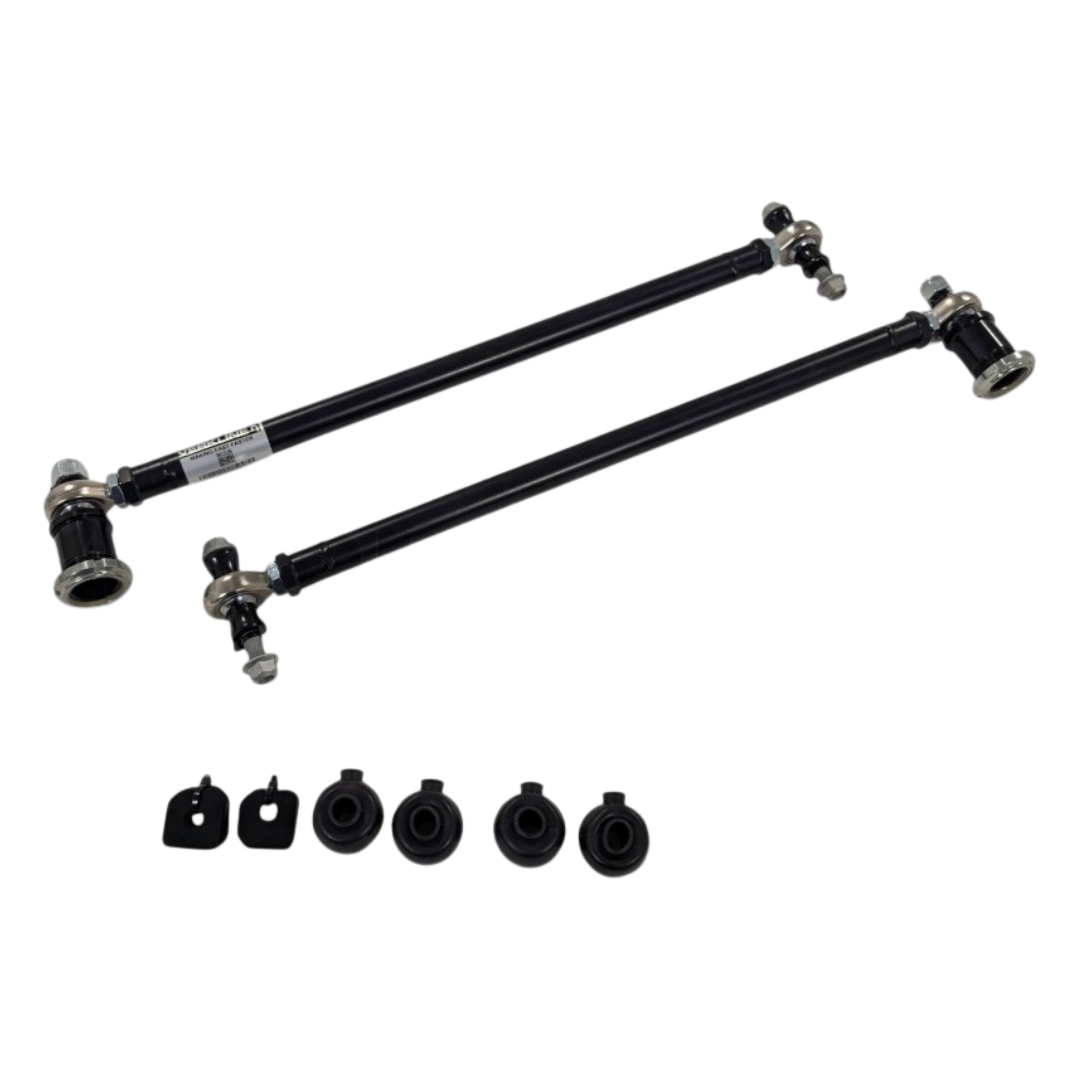

- 1x Paar verstellbare Spurstangen hinten
- 4x Gummienden zum Schutz der Uniballs
- 8 Stück exzentrische Sicherungsscheiben
- Gedruckte Einbauanleitung
Kompatible Fahrzeuge (Typennummern in Klammern):
- 2005 - 2013 Audi A3/S3/RS3 (8P)
- 2007–2013 Audi TT/TTS/TTRS (8J)
- 2006–2009 Volkswagen Jetta/GTI/GLI/R32 (MkV)
- 2010–2014 Volkswagen Golf/GTI/R (MkVI)
Replaces OEM part number:
- 1K0505311AB / 1K0 505 311AB
Note: Only available for off-road, racetrack and racing applications. The installation of this rear axle control arm kit can lead to additional transmission of noise, vibrations and roughness into the interior.
Unless otherwise indicated, all articles and services are racing articles without guarantee / warranty and without STVO approval.
The same applies to modifications made to the vehicle. The performance values offered are average values on ARAL 102 OKTAN fuel, which may deviate accordingly due to inferior fuel or wear on the vehicle.
No acceleration times are guaranteed. Subsequent misfueling may cause damage to the vehicle. No guarantee / warranty is assumed for this!
HPerformance does not assume any mobility warranty / costs for the duration of the conversion or any resulting delays.
Scheduled appointment periods are not binding and may vary.
All services are special and custom-made products that are excluded from the statutory right of return.
No warranty is assumed for products that are not installed in a specialist workshop by trained specialist personnel.
Work on motor vehicles may only be carried out by trained specialists. In addition to product malfunctions, installation errors can also lead to dangerous technical and possibly legal consequences for the vehicle.
Therefore, please have all conversions carried out by a specialist vehicle workshop of the guild.
If no instructions for installing a product are available for download in the online store, these are not available
- No installation advice / installation instructions are provided by telephone.
If vehicles have already been modified beforehand, additional costs may be incurred. Please note that our TÜV-approved/registrable products are not necessarily compatible with products from other manufacturers ! Please check in advance whether your already installed hardware parts, which are not from HPerformance, are TÜV-compliant with our products!
Discoloration occurs on the silencers, pipe and tailpipe of all exhaust system components during operation. These are material-related changes that are not covered by the warranty/guarantee of the item and have no negative effect on the use or technical properties of the item.
