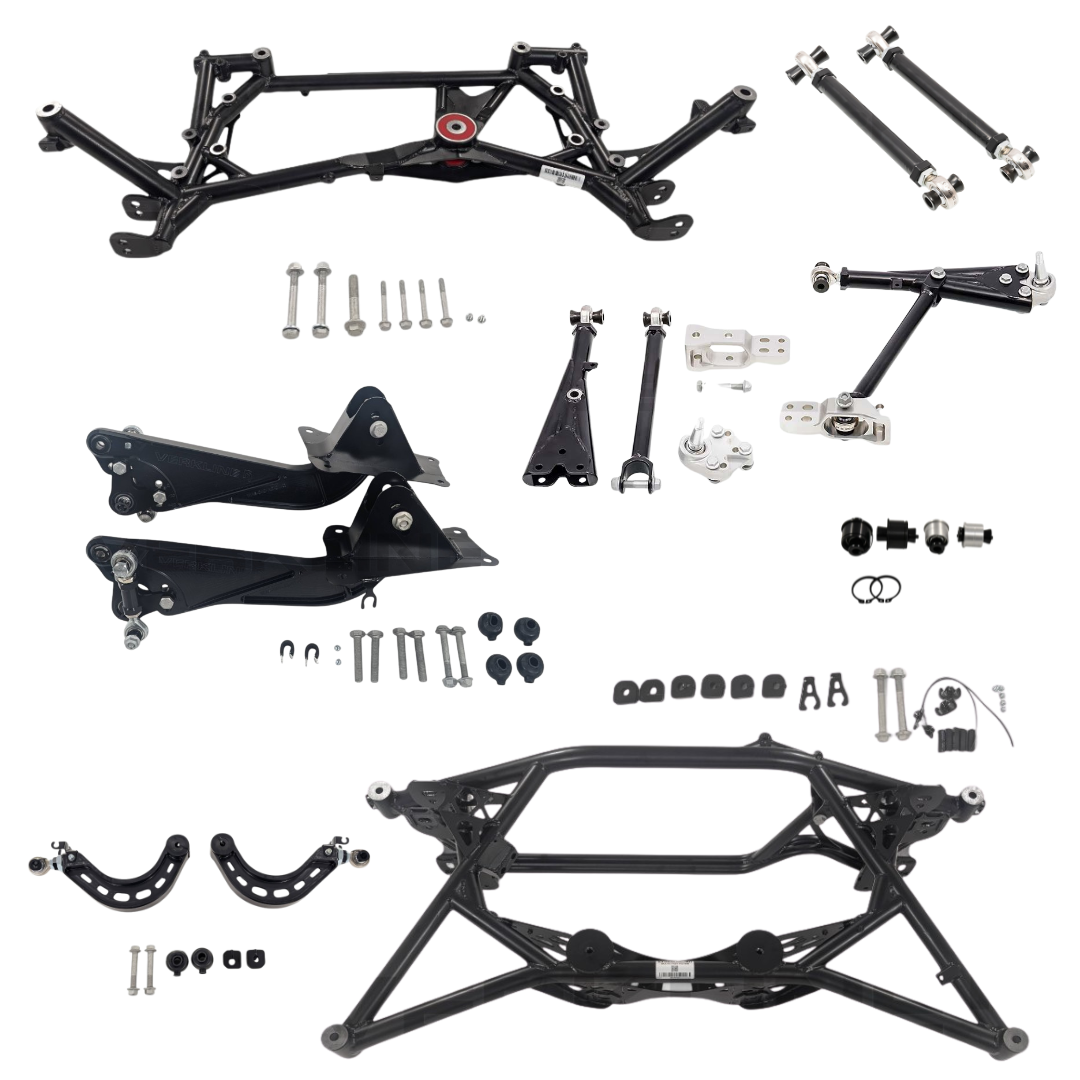

Kompletter Hilfsrahmen + Querlenker Set für Audi RS3 8P
Availability for pickups could not be loaded
Product features:

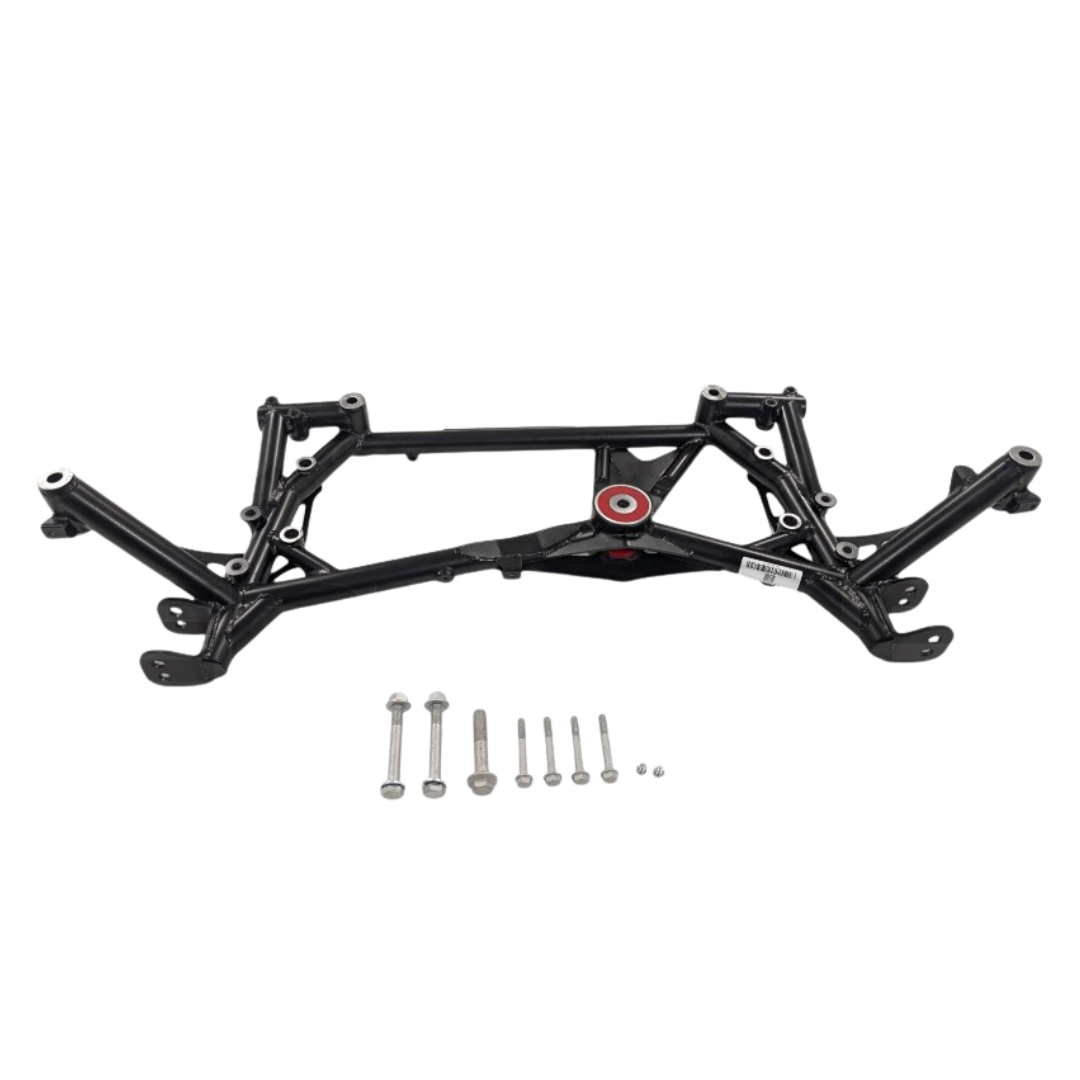

- Leichtbau-Rohr-Hilfsrahmen vorn.

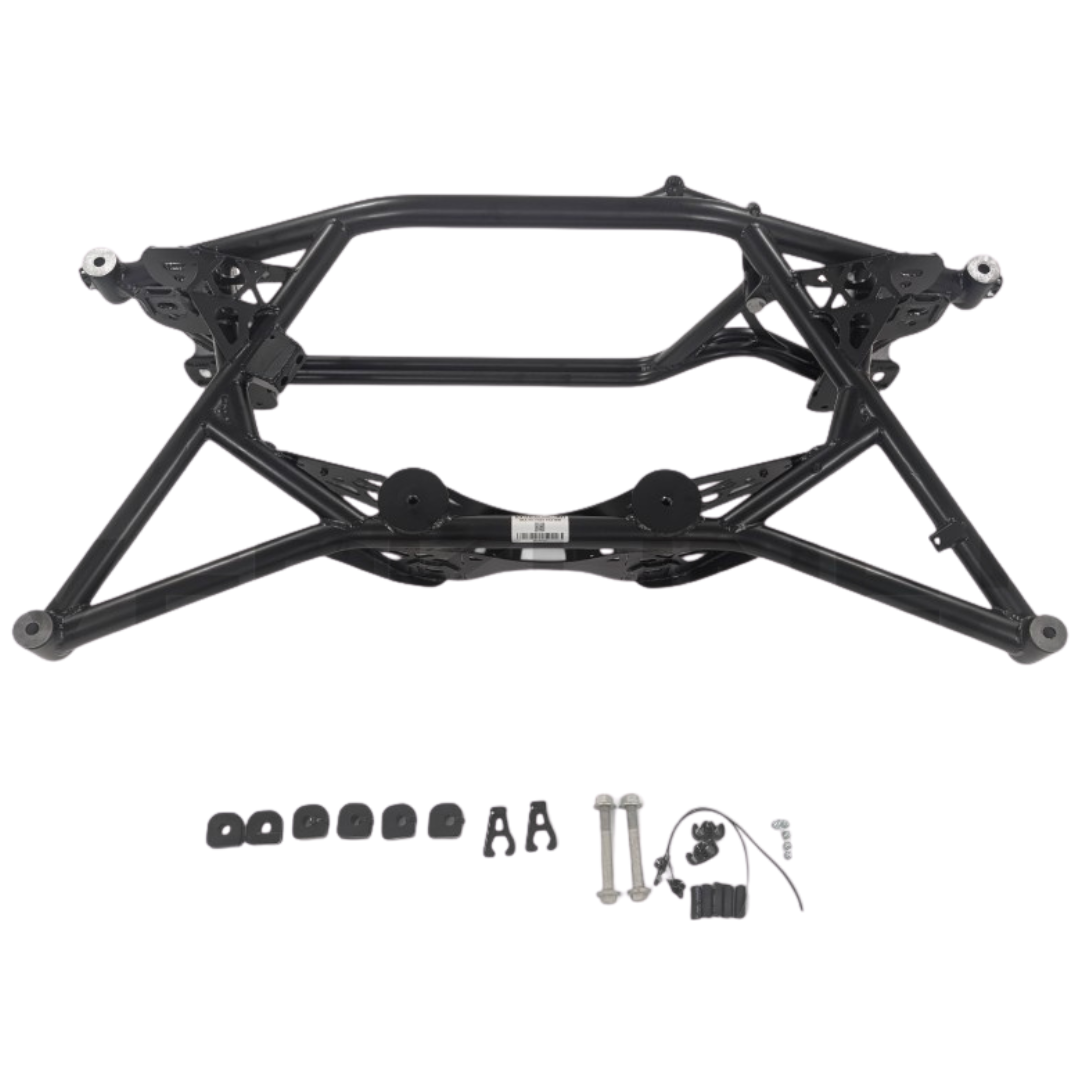

- Leichtbau-Rohr-Hilfsrahmen hinten mit unterer Verstärkung.

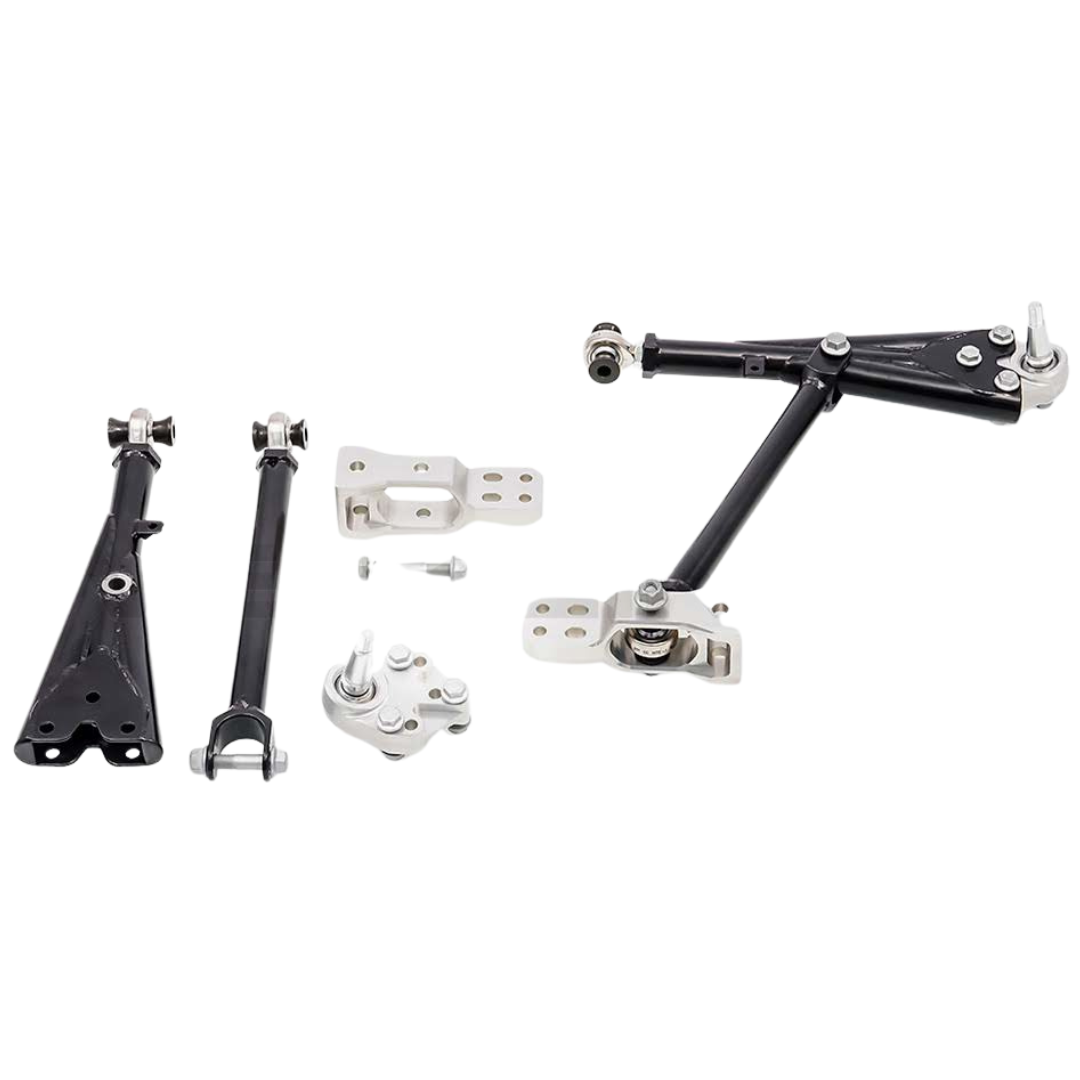

- Einstellbare Rohrquerlenker vorn mit modifizierter Kinematik.

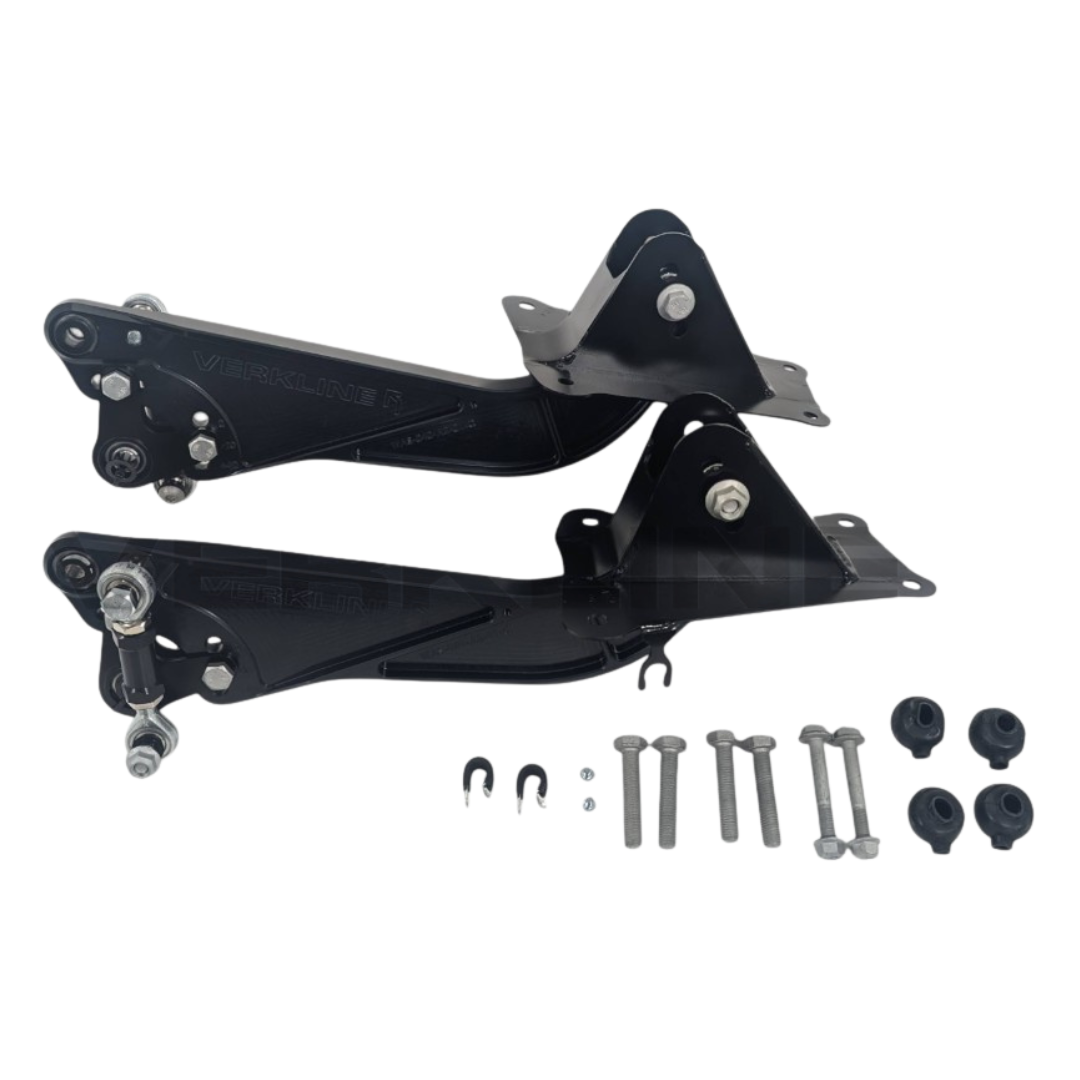

- Sphärisch einstellbarer MQB-Hinterachs-Längslenkersatz mit hinterem Stabilisator.

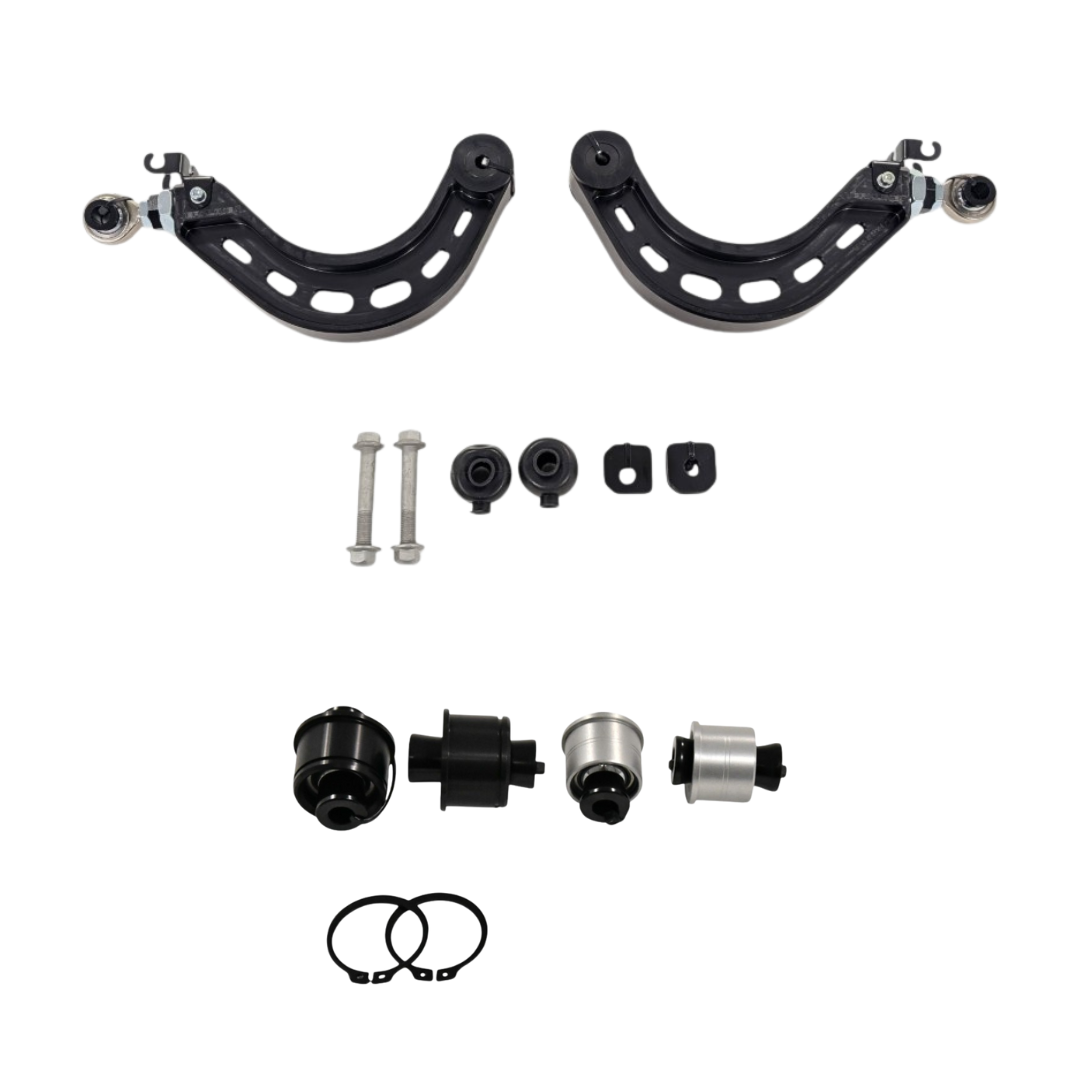

- Vollständig einstellbare Uniball-Querlenker hinten.

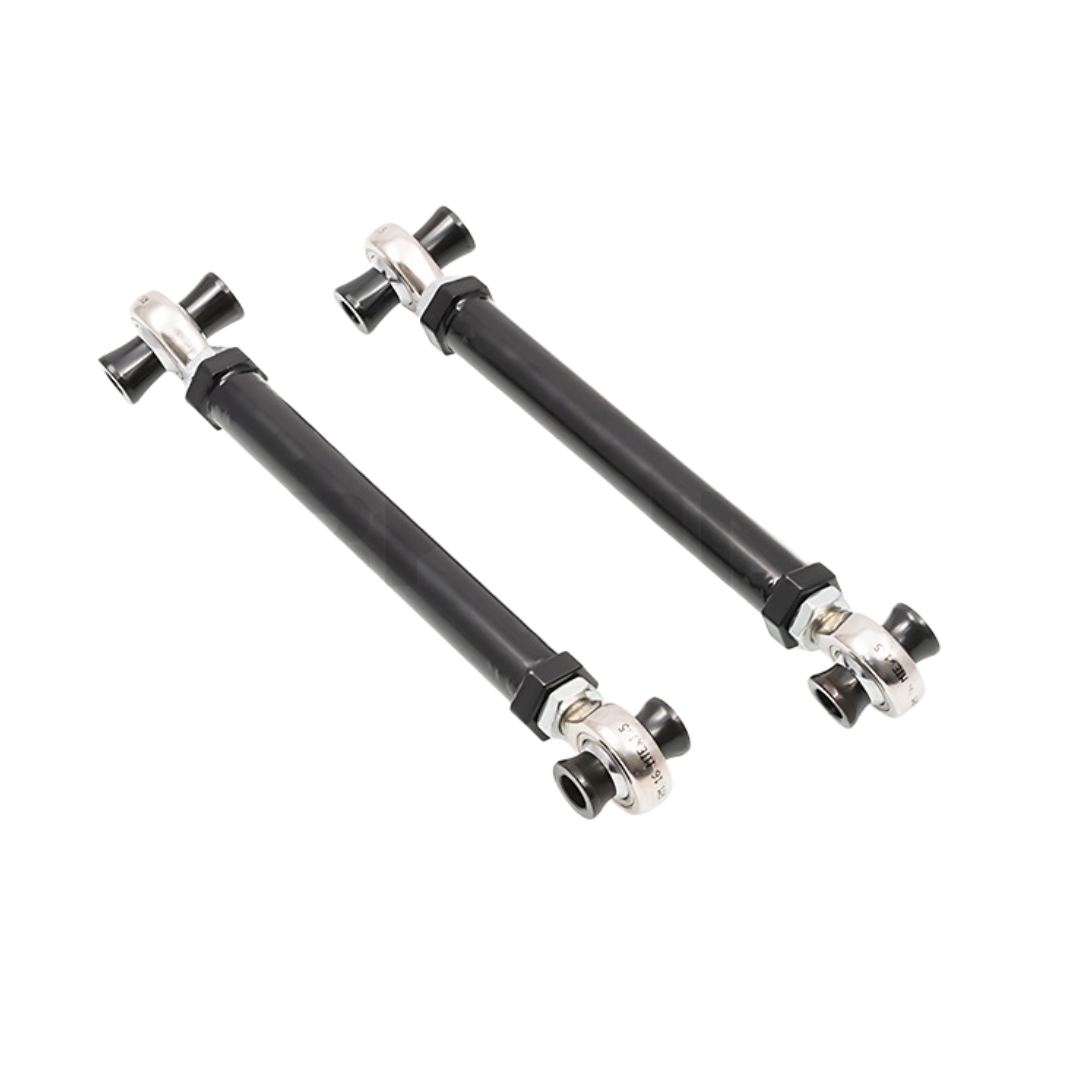

- Einstellbare Metallgelenkköpfe für die hinteren Spurstangen.
- Hintere Querlenker- und Radlagergehäuseeinsätze für die Federlagerung.
Technical details:
- Die Befestigung am Fahrgestell erfolgt über Standardbefestigungspunkte.
- Vollständige 3D-CAD-Konstruktion.
- FEA-geprüft und zusätzliche Verstärkungen gegenüber der Originalkonstruktion.
- Vollständig aus T45-Rohren und S355-Stahl gefertigt, um höchste Festigkeit zu erreichen.
- WIG-geschweißt.
- Gelenkköpfe in Motorsportqualität
Kompatible Fahrzeuge der PQ35-Plattform (Typennummern in Klammern):
- Audi S3 Mk2 (8P) (2004–2013)
- Audi RS3 (8P) (2011–2013)
- Volkswagen Golf Mk5 (1K) (2003–2007) R32
- Volkswagen Golf Mk6 (5K) (2008–2014) R32
Hinweis: Nur für den Einsatz im Gelände, auf der Rennstrecke und im Rennsport geeignet. Der Einbau dieses Produkts führt zu einer erhöhten NVH-Übertragung (Geräusch, Vibration und Rauheit) in den Innenraum. Wir empfehlen dringend, den Hilfsrahmen in einer qualifizierten und erfahrenen Werkstatt einbauen zu lassen.
