SPORT SERIE Ladeluftkühler + Luftleitblech mit TÜV für Audi RS3 8Y + 8Y Facelift - DNW
1000PS Ladeluftkühlernetz
Neues, 150% größeres Luftleitblech
100% geprüfte Qualität
Mehrteiliger Aufbau für einfach Installation
Availability for pickups could not be loaded
- Spürbare Leistungssteigerung von bis zu 25PS und 60NM durch Austausch gegen Serienteil
- 1000PS Garrett Performance-Ladeluftkühlernetz
- Deutlich reduzierte Ladelufttemperaturen (IAT) auch bei Dauerbelastung & hohen Außentemperaturen
- Bis 3 bar Ladedruck ausgelegt (Auf 5 Bar getestet!)
- Bereits erfolgreich eingesetzt in unserer 707 PS HPerformance-Leistungsstufe
- Geringerer Druckverlust als der Serien-LLK → spürbar mehr Leistung oben raus
- Hocheffizient durch vergrößerte & optimierte Luftleitbleche (deutlich mehr Luft durch den Kern)
- Bar-and-Plate Hochleistungskern für maximale thermische Stabilität (kein Heatsoak)
- Ausgelegt für extreme Belastung auf Rennstrecke & Straße
- Korrosionsbeständige Beschichtung & langlebige Vollaluminium-Konstruktion
- 100 % Produktkontrolle – jedes Teil wird einzeln geprüft
- Plug-&-Play Einbau ohne dauerhafte Fahrzeugmodifikationen
- Mehrteiliger Aufbau für besonders einfache und schnelle Montage
- Kompatibel mit allen OEM-Sensoren & Schläuchen
- Inklusive TÜV-Teilegutachten
- HP Sport Serie Ladeluftkühler mit Luftleitblech
- Mounting material
Product description:

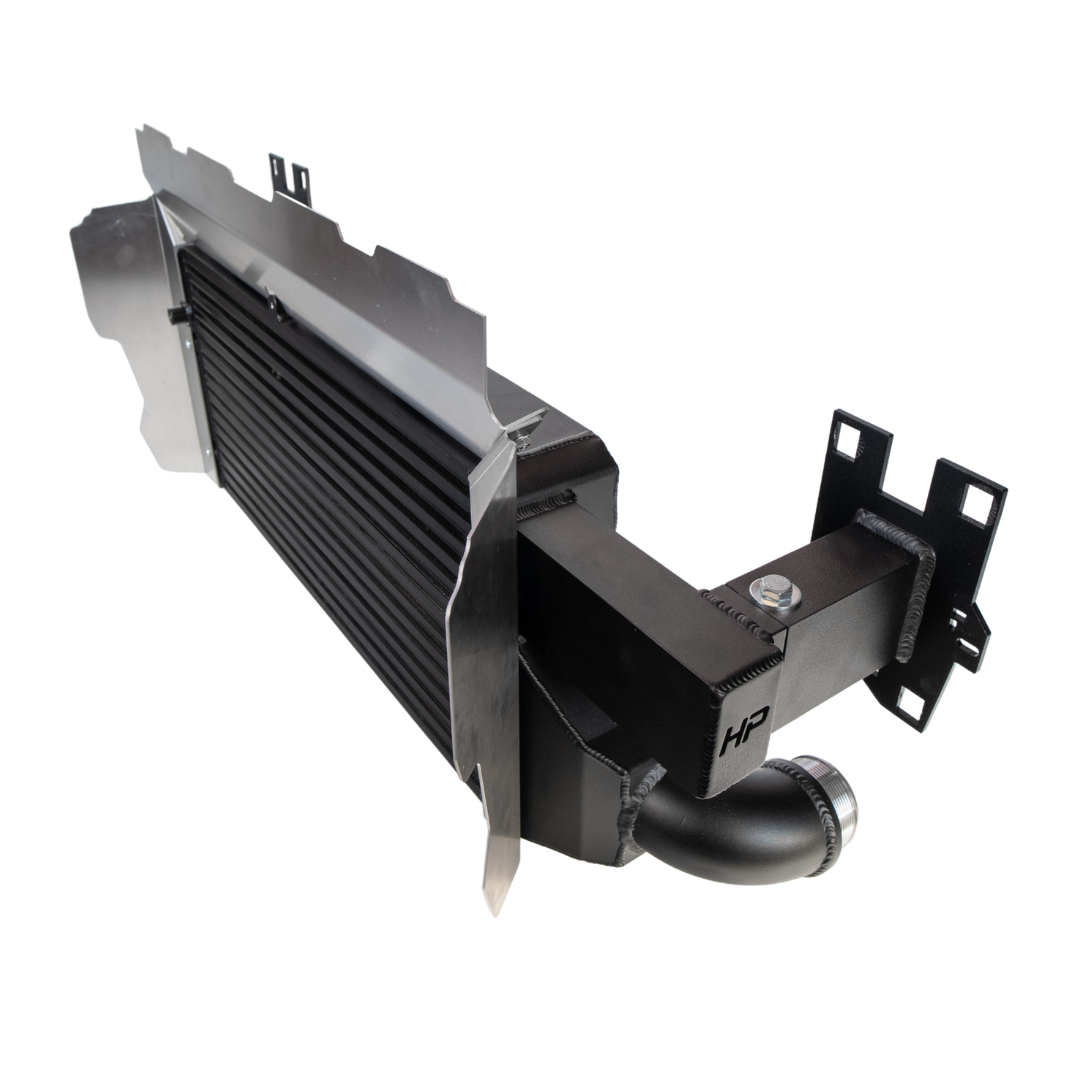

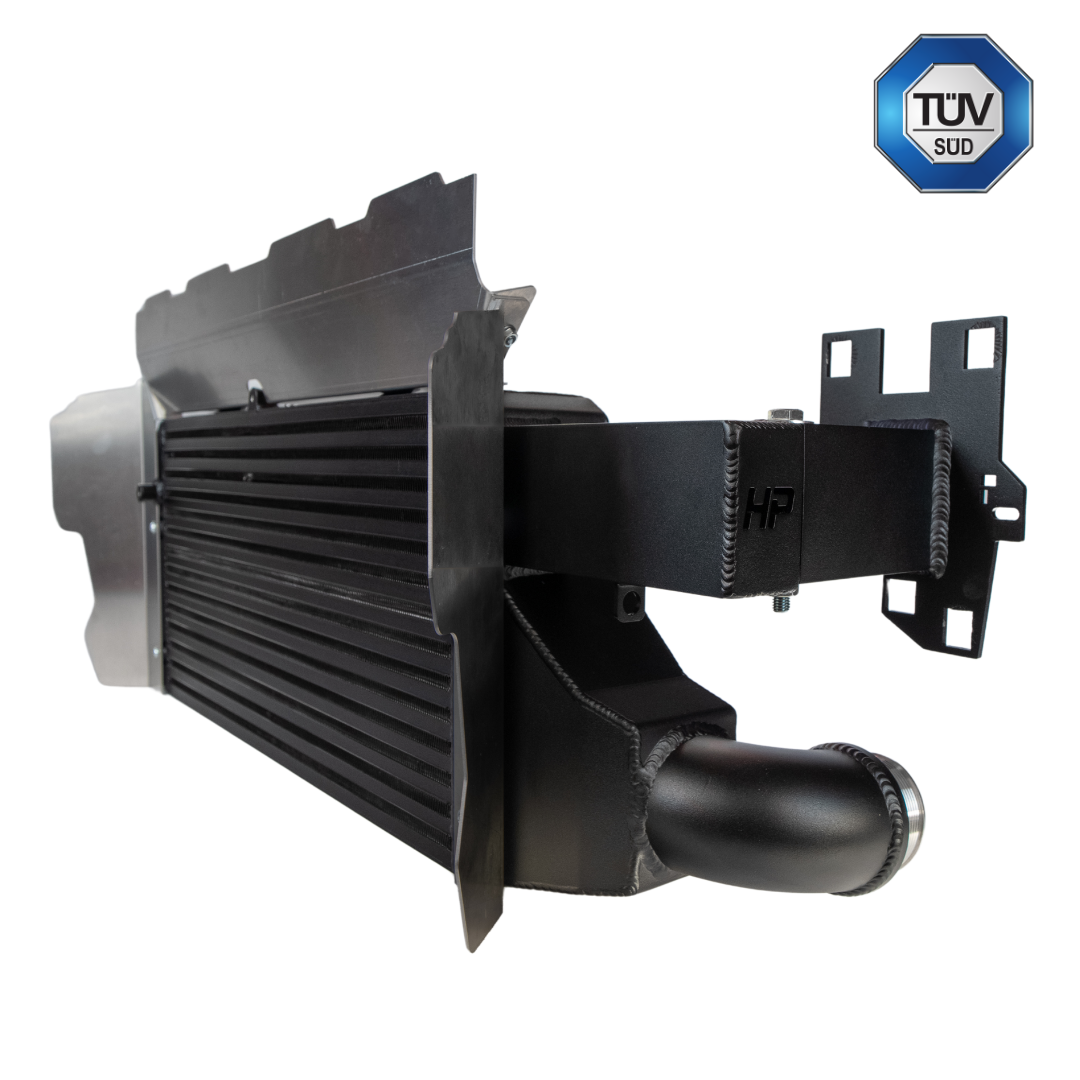

The HPerformance Sport Series Intercooler for the RS3 8Y is a massive upgrade over the stock intercooler. It offers a 124% larger charge air volume, 88% more flow surface area and a "bar and plate" network that is beyond performance and is rated at over 1100hp cooling capacity. As a result, the cooling capacity of the HPerformance RS3 8Y intercooler exceeds that of the standard intercooler many times over. The standard intercooler allows a measurement on the test bench in fourth gear and heats up by an average of 20°C from the beginning to the end of the test run. As early as the second measurement, the power output drops by more than 10 hp as a result of an intake air temperature that quickly exceeds 45°C and leads to the control unit entering the greasing or component protection mode. As a result, the mixture becomes extremely rich, fuel consumption increases immensely and performance drops at the same time.
Not so with our intercooler!
On the standard vehicle, our intercooler already leads to a performance increase of up to 25PS and 60NM (reproducible), even after several measurement runs, the power to be measured is constantly above 400PS and the temperature at the end of a run is still below that at the start.
In order to better assess the enormous potential of the cooler, we compared it directly with a GARRETT 1000 intercooler. Our Sport Series intercooler was able to show its full potential. Even after 5 runs on the test bench, the output temperature (after acceleration) was still below the input temperature (before the measurement). We were able to demonstrate this effect even more clearly on the road. The measurement results can be seen in the pictures.
The intercooler is suitable for all performance levels and can be used both on the standard vehicle and on a vehicle with significantly increased performance.
Its total weight including the impact beam is just 16.9 kg. It also offers the option of being combined with our 80mm / 3.14 inch charge pipe / throttle body unit. Efficiency can also be further improved with the optional air duct.
No parts need to be cut to install the radiator, but the plastic covers and corresponding foam pads must be unscrewed.
Our intercooler can be registered with a TÜV parts certificate even without a performance upgrade!
Important:
Please always have work on vehicles carried out by trained specialists. Bumpers on modern vehicles have various sensors and controls which can lead to problems if handled incorrectly. We do not provide any guarantee / warranty / advice for improper installations.
