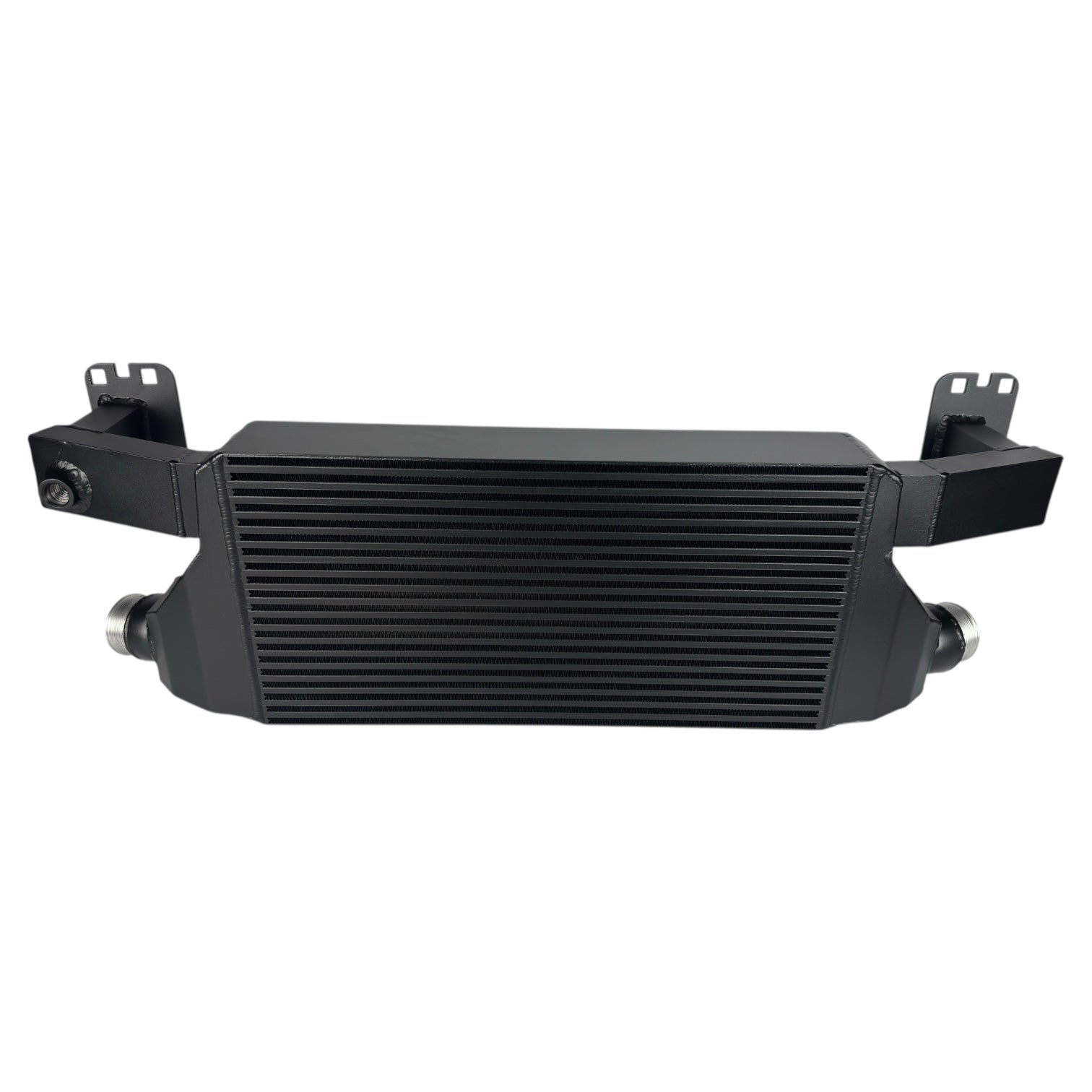

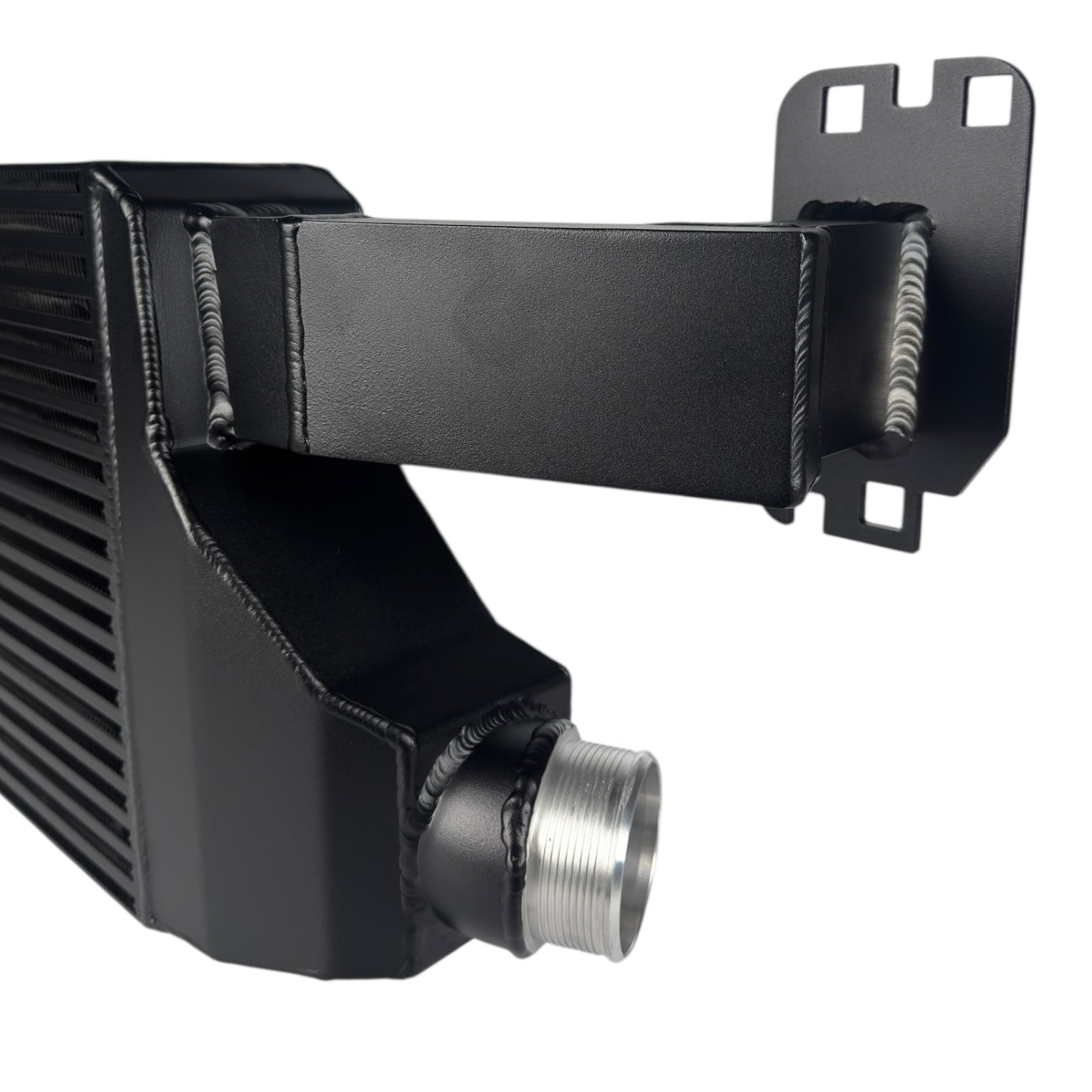

SPORT SERIE Ladeluftkühler mit TÜV für Audi RS Q3 8U
Currently viewed by people
Availability for pickups could not be loaded
Product details
- Noticeable increase in performance of up to 25PS and 60NM through replacement with standard part
- Charge air volume 125% larger than in series production
- Flow surface 81% larger than in the series
- 76mm / 3 inch input and 80mm 3.14 inch output connection
- Can be combined with 80mm 3.14 inch boost pressure pipe incl. external blow-off and 80mm 3.14 inch throttle body bend
-

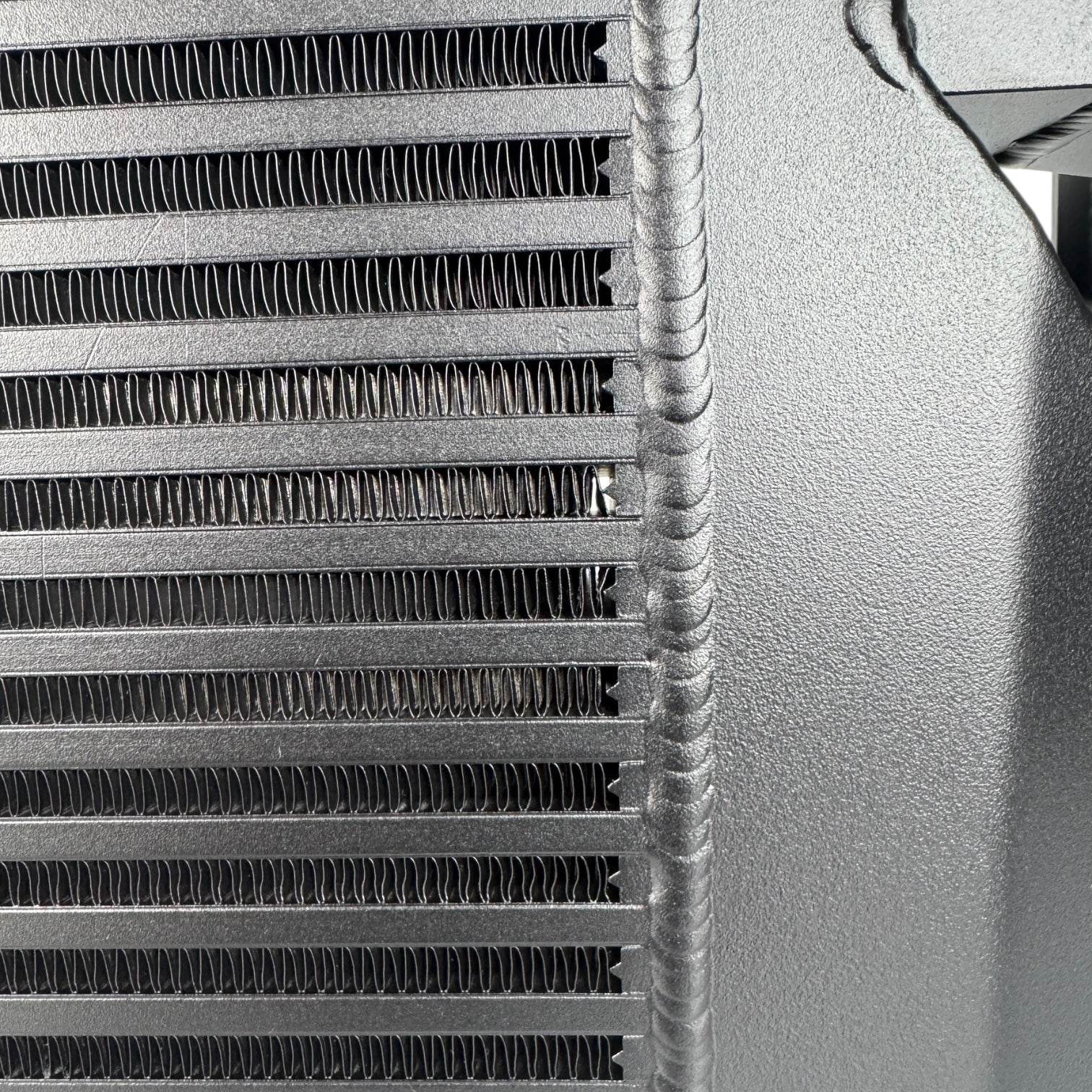

Efficient working range up to 3.5 bar boost pressure thanks to bar and plate network
- Suitable for all conceivable performance ranges
-
Lightweight version thanks to the latest technology - 16.1 KG
- 100% product control, pressure tested to 5 bar
Scope of delivery
- HP SPORT Series intercooler
- Parts certificate for TÜV registration
Product description:
Der HPerformance Sport Serie Ladeluftkühler für den RS Q3 8U stellt ein massives Upgrade gegenüber dem serienmäßigen Ladeluftkühler dar. Er bietet ein 125% größeres Ladeluftvolumen, 81% mehr Anströmoberfläche und ein "Bar and Plate" Netz, welches Leistungen bis 850PS zuverlässig kühlen kann. Dadurch übersteigt die Kühlleistung des HPerformance Ladeluftkühlers die des Serienkühlers um ein Vielfaches. Der serienmäßige Ladeluftkühler erlaubt eine Messung auf dem Prüfstand im vierten Gang und heizt sich dabei von Beginn bis Ende des Messlaufes um Durchschnittlich 20°C auf. Bereits bei der zweiten Messung sinkt die Leistung um mehr als 10PS in Folge des Anstiegs der Ansauglufttemperatur, die schnell über 45°C liegt und zur Anfettung bzw. zum Bauteilschutzmodus im Steuergerät führt. Folglich wird das Gemisch extrem angefettet, der Kraftstoffverbrauch steigt immens und gleichermaßen sinkt die Leistung.
Not so with the HPerformance SPORT SERIES intercooler!
On the standard vehicle, our intercooler already leads to a performance increase of up to 25PS and 60NM (reproducible), even after several measurement runs, the power to be measured is constantly above 400PS and the temperature at the end of a run is still below that at the start.
In order to better assess the enormous potential of the cooler, we compared it directly with a GARRETT 900 intercooler. Our Sport Series intercooler was able to show its full potential. Even after 5 runs on the test bench, the output temperature (after acceleration) was still below the input temperature (before the measurement). We were able to demonstrate this effect even more clearly on the road. The measurement results can be seen in the pictures.
The intercooler is suitable for all performance levels and can be used both on the standard vehicle and on a vehicle with significantly increased performance.
Its total weight including the impact beam is just 16.9 kg. It also offers the option of being combined with our 80mm / 3.14 inch charge pipe / throttle body unit. Efficiency can also be further improved with the optional air duct.

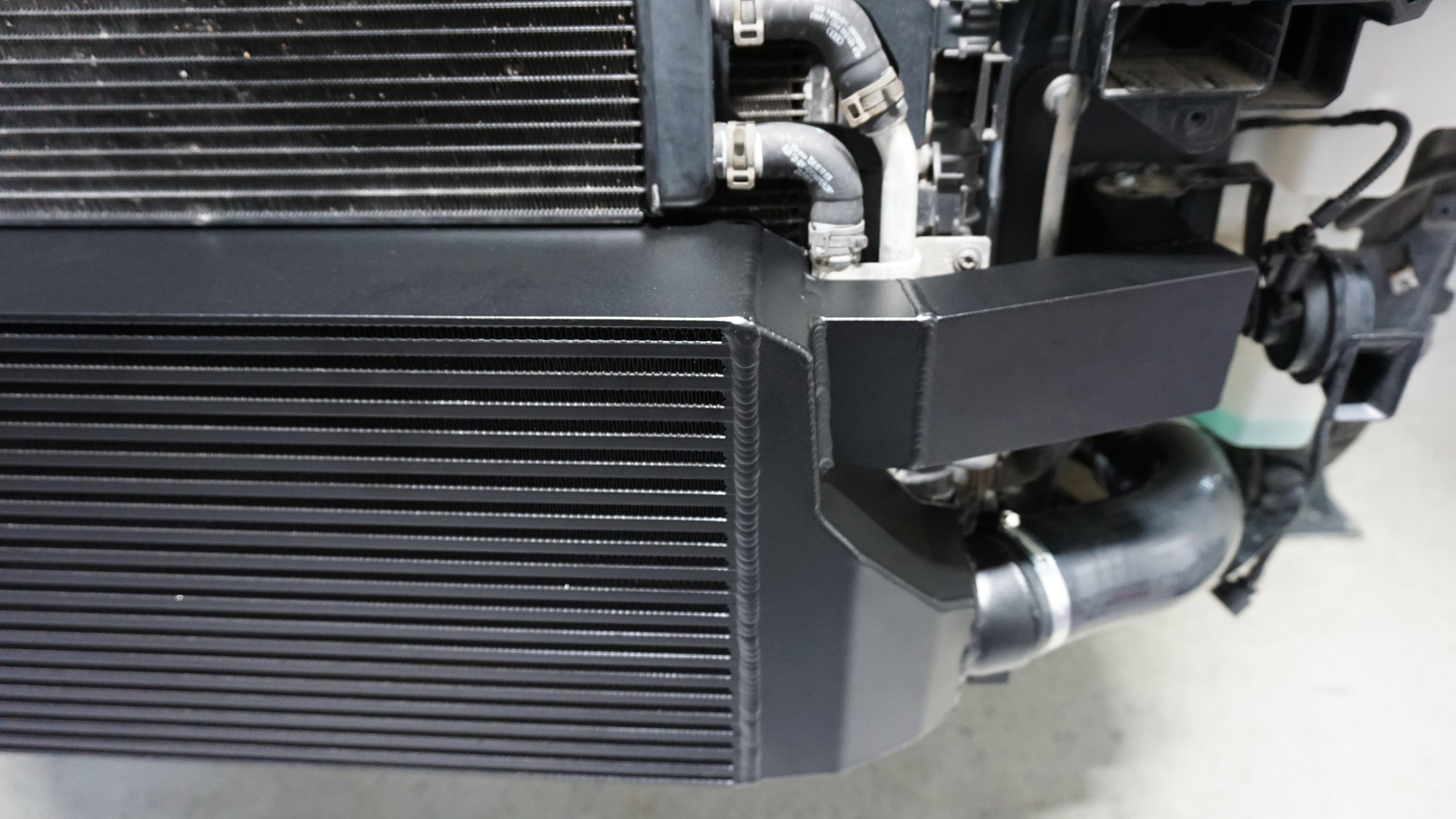

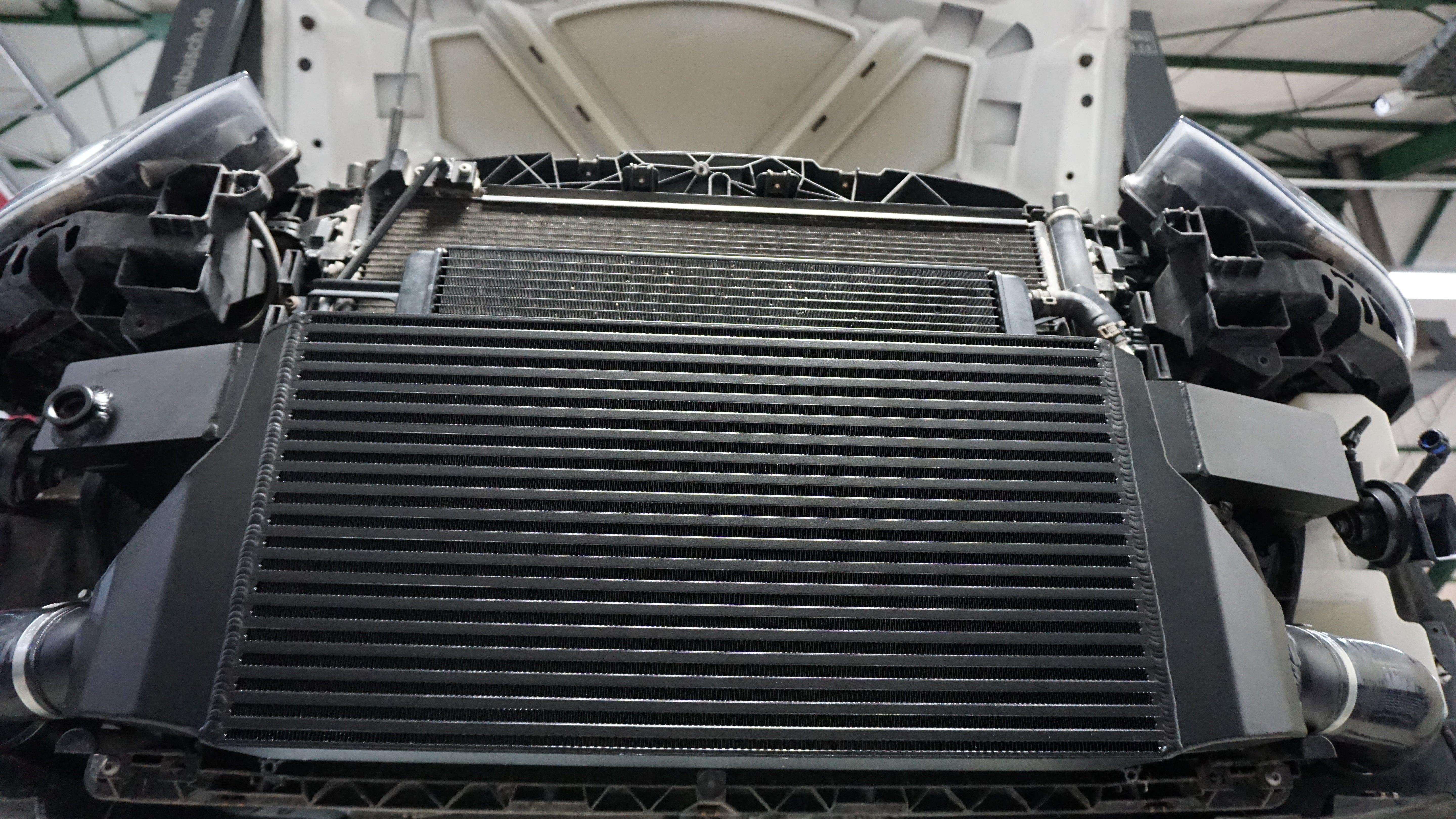

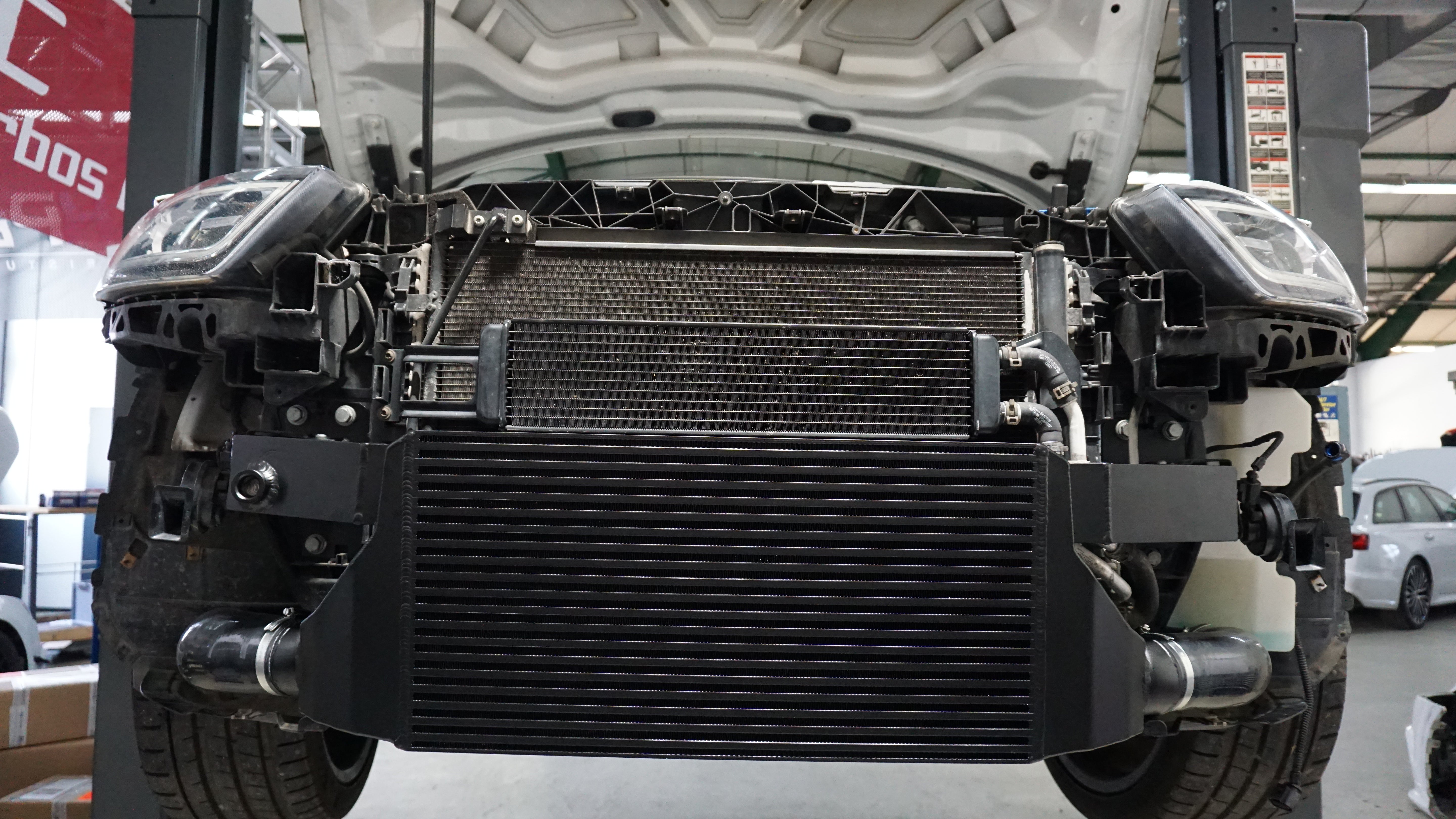

No parts need to be cut to install the radiator, but the plastic covers and corresponding foam pads must be unscrewed.
Compatible vehicles:
| Model: | Audi RS3 Q3 8U |
|---|
Unless otherwise indicated, all articles and services are racing articles without guarantee / warranty and without STVO approval.
The same applies to modifications made to the vehicle. The performance values offered are average values on ARAL 102 OKTAN fuel, which may deviate accordingly due to inferior fuel or wear on the vehicle.
No acceleration times are guaranteed. Subsequent misfueling may cause damage to the vehicle. No guarantee / warranty is assumed for this!
HPerformance does not assume any mobility warranty / costs for the duration of the conversion or any resulting delays.
Scheduled appointment periods are not binding and may vary.
All services are special and custom-made products that are excluded from the statutory right of return.
No warranty is assumed for products that are not installed in a specialist workshop by trained specialist personnel.
Work on motor vehicles may only be carried out by trained specialists. In addition to product malfunctions, installation errors can also lead to dangerous technical and possibly legal consequences for the vehicle.
Therefore, please have all conversions carried out by a specialist vehicle workshop of the guild.
If no instructions for installing a product are available for download in the online store, these are not available
- No installation advice / installation instructions are provided by telephone.
If vehicles have already been modified beforehand, additional costs may be incurred. Please note that our TÜV-approved/registrable products are not necessarily compatible with products from other manufacturers ! Please check in advance whether your already installed hardware parts, which are not from HPerformance, are TÜV-compliant with our products!
Discoloration occurs on the silencers, pipe and tailpipe of all exhaust system components during operation. These are material-related changes that are not covered by the warranty/guarantee of the item and have no negative effect on the use or technical properties of the item.
