SPORT SERIES Ladeluftkühler mit TÜV für Cupra Formentor VZ5 2.5 TFSI
950PS Bar and Plate network
18,5 kg - Leichtbauversion 100% geprüfte Qualität
Einfach Installation
Currently viewed by people
Availability for pickups could not be loaded
- Noticeable performance increase of up to 25PS and 60NM by replacing with standard part
- 76mm / 3 inch input and output connection
- Efficient operating range up to 3.5 bar boost pressure
- 950PS Bar and Plate network
- Suitable for all power / performance levels of the VZ5
- Lightweight version thanks to the latest technology - 18.5 KG
- 100% product control, pressure tested to 5 bar

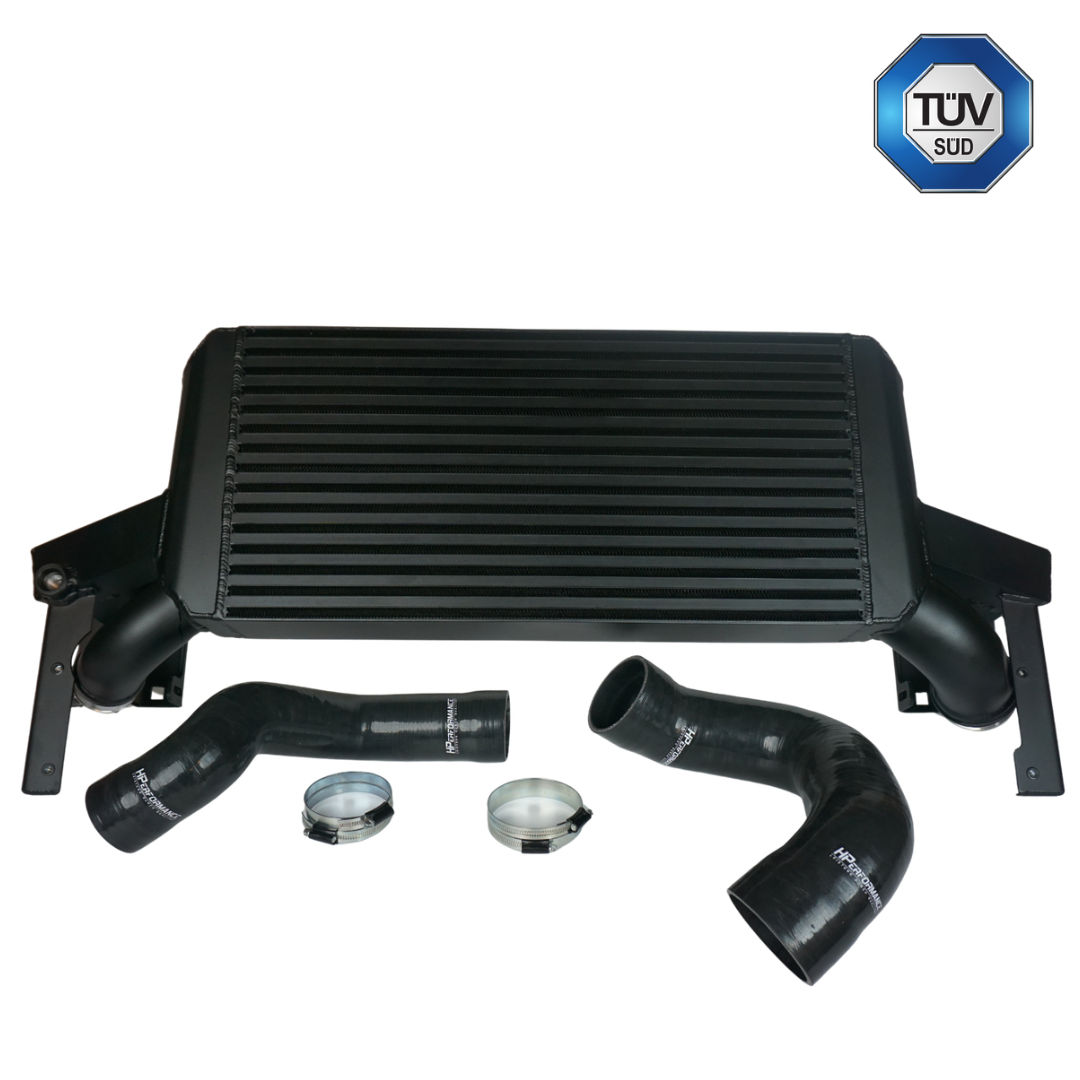

- HP Sport Series intercooler

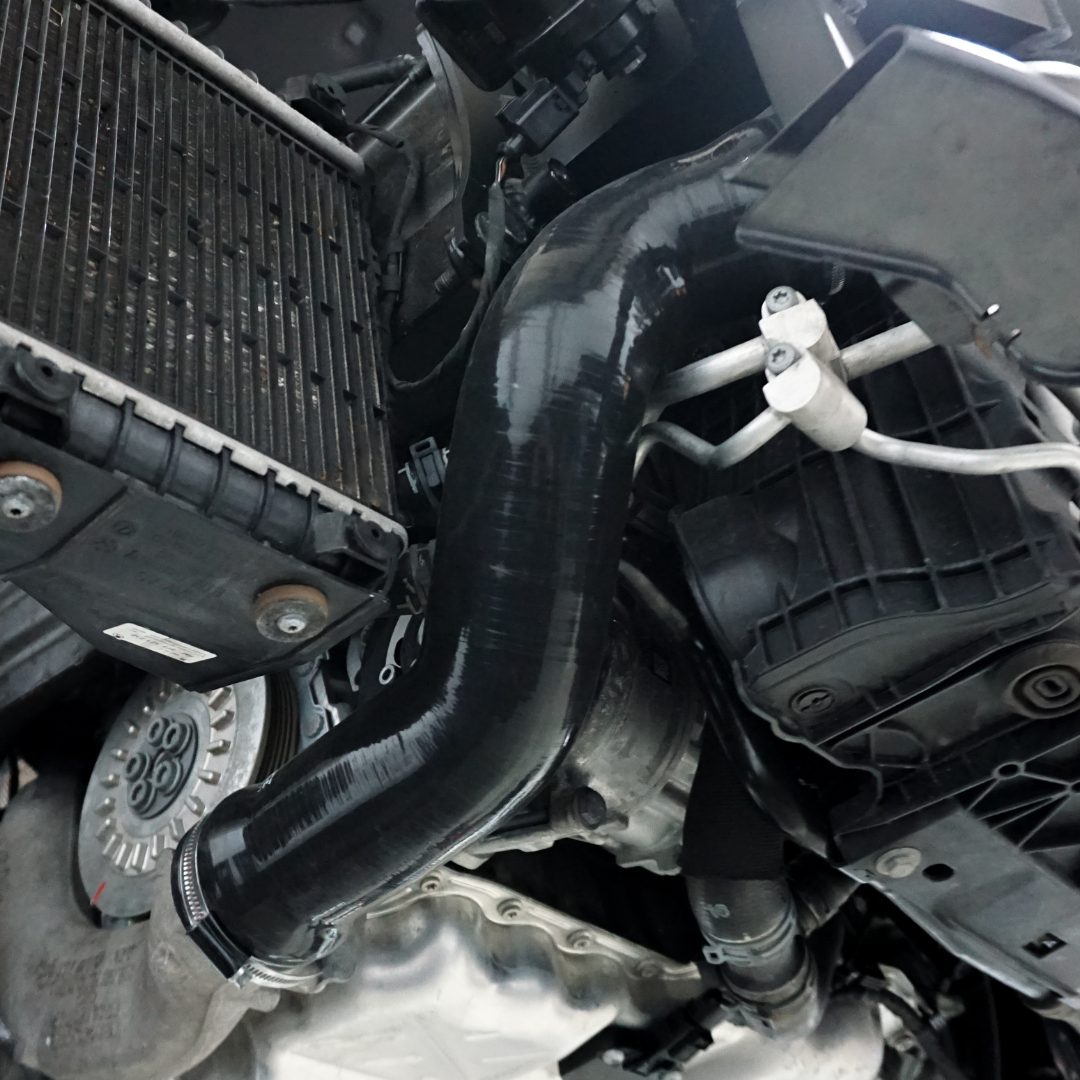

- 2x silicone molded hoses inlet and outlet
- 4x hose clamps
- Replacement frame (optionally selectable)
Product description:
The VZ5 has an intercooler from the factory that is too small to be able to reproducibly produce 390 hp. The side boxes of the intercooler are made of plastic and are already familiar from the Golf 6 GTI. The total volume of the standard radiator is only 8.6 liters. In addition, it is covered by the air conditioning radiator and the water cooler directly behind the intercooler is "heated" passively on an ongoing basis.

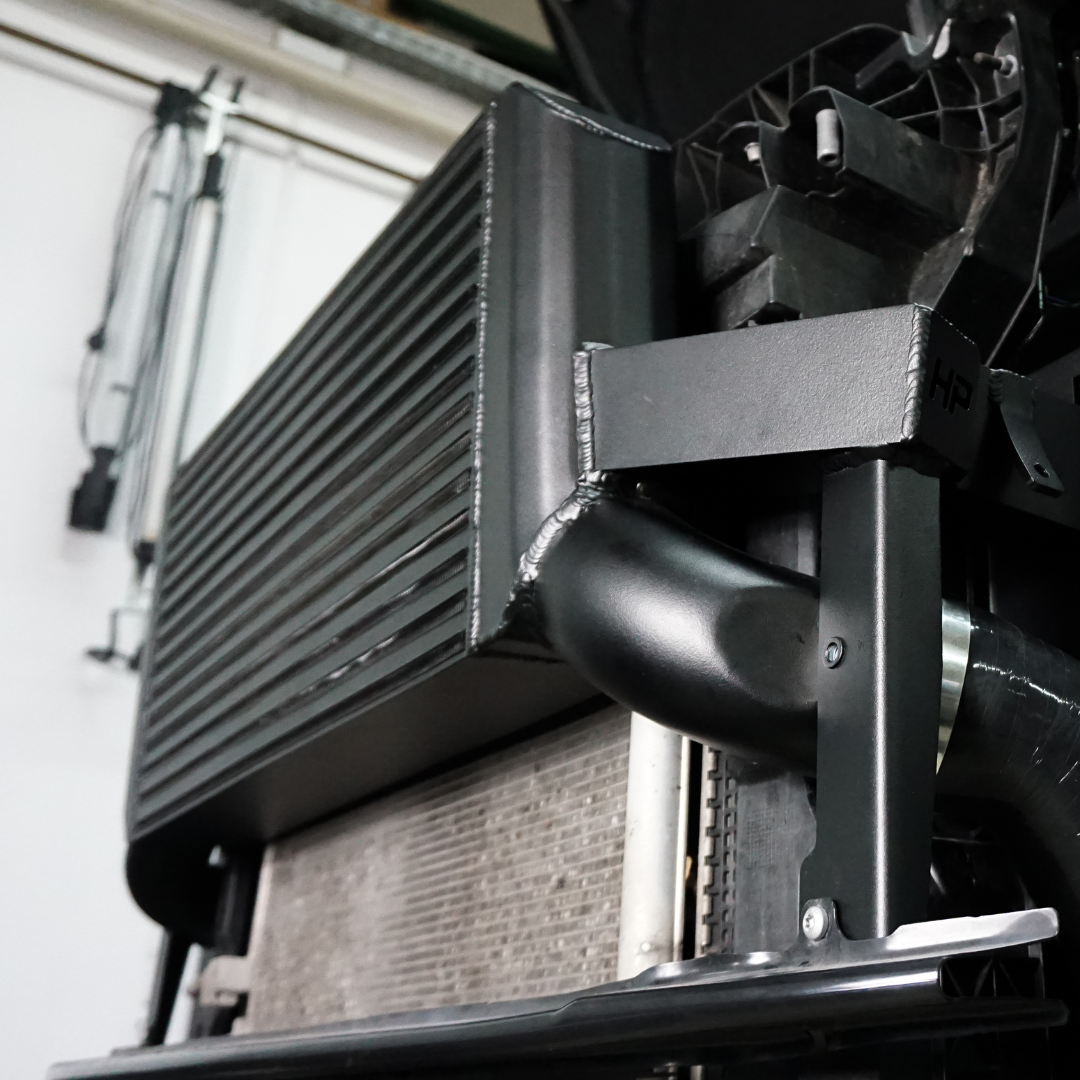

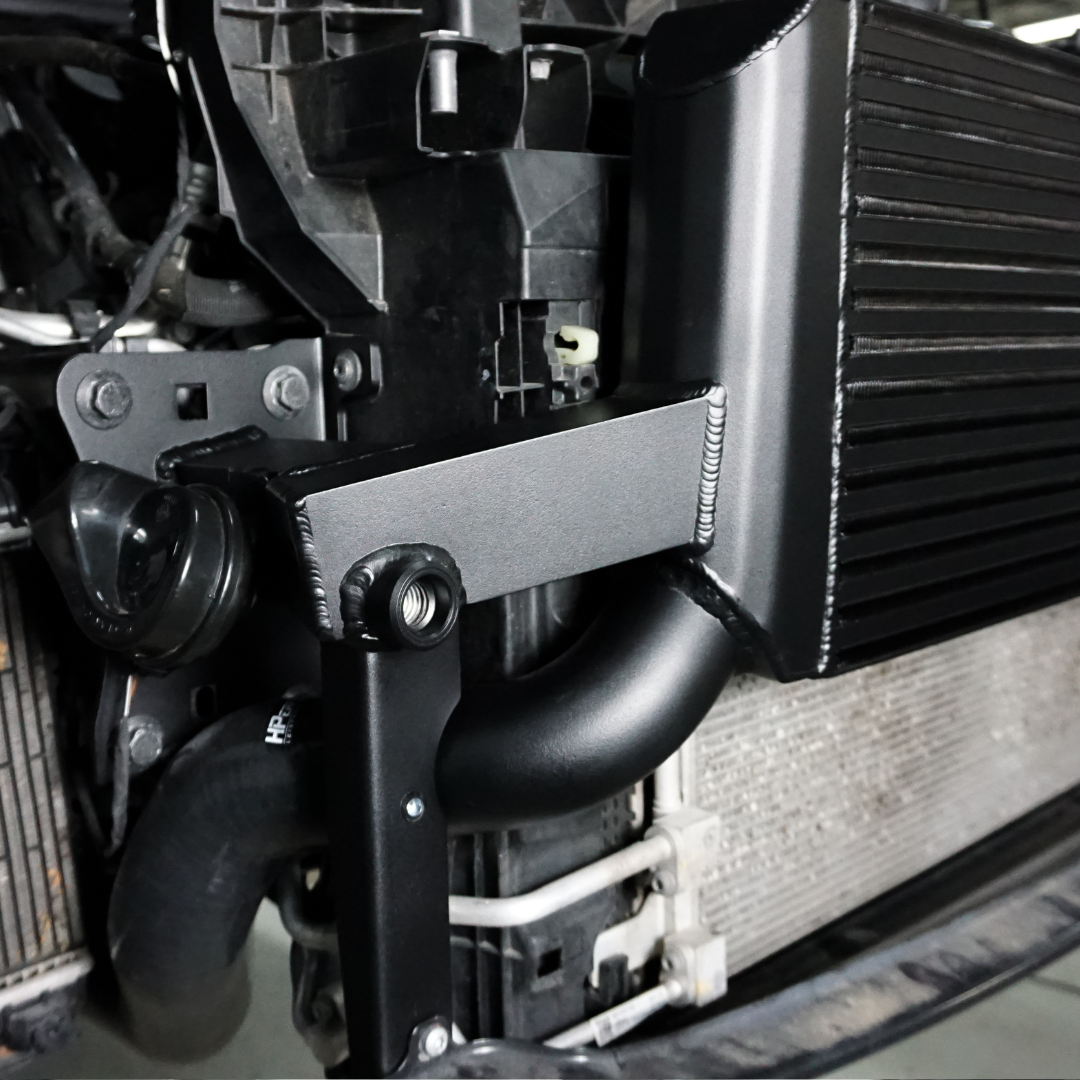

The HP Sport Series intercooler is a completely new development, detached from the combined package of air conditioning, intercooler and water cooler. It sits classically like a front charge air cooler in front of the entire air conditioning section, directly in the air flow and has a total volume of 16.5 liters. The net used is a bar and plate net, which is particularly suitable for high charge pressures and enables a reproducible power output.
This significant improvement in cooling performance can also be seen in the form of power. This results in an increase in power of up to 28 hp and 65 Nm (reproducible), even after several test runs the measured power is constantly above 390 hp and the temperature at the end of a run is still below that at the start.

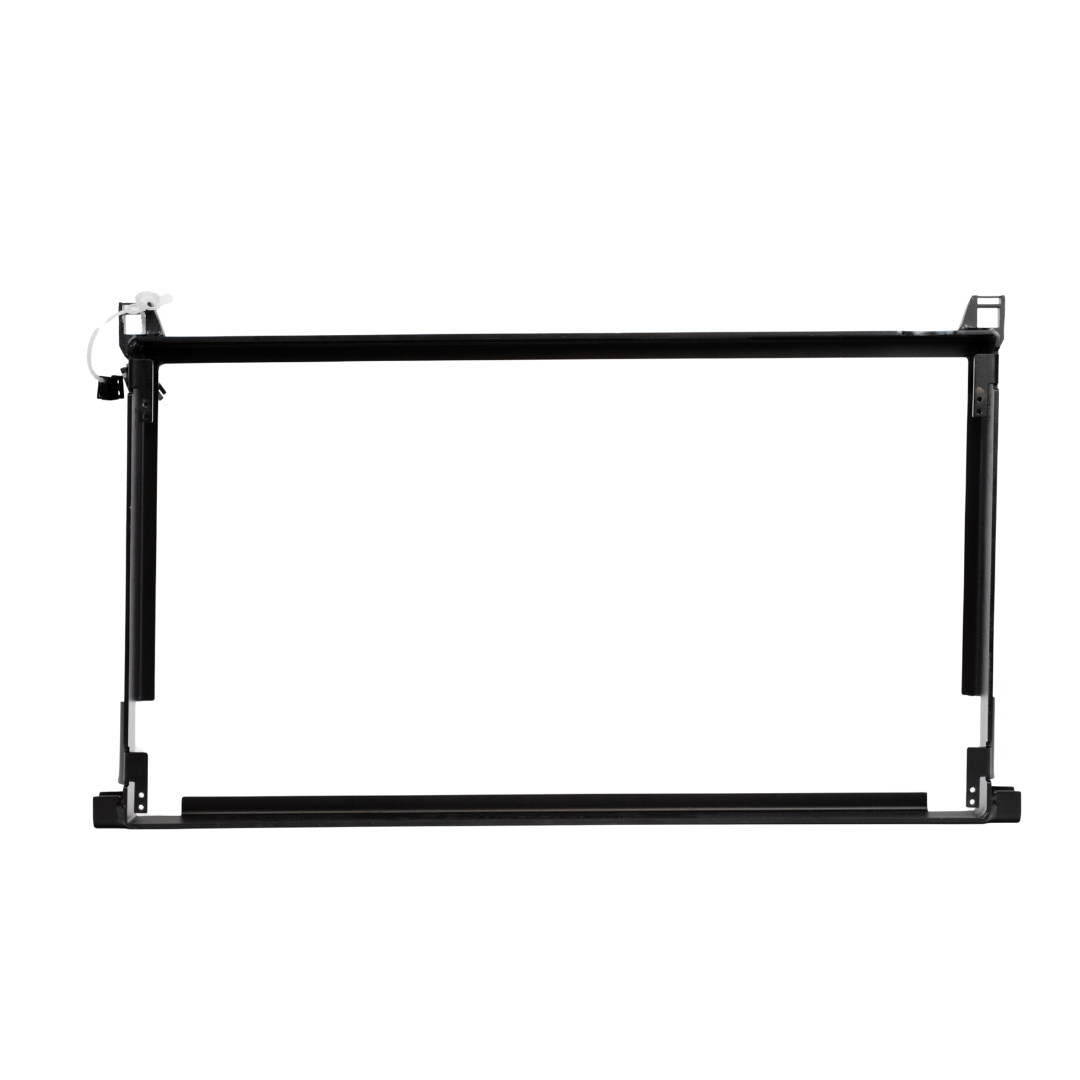

The original radiator does not necessarily have to be completely removed, but it must be machined. The inlet and outlet hoses of the original radiator must be cut off. If you don't want to do this, you can order our replacement frame. This serves as a kind of placeholder for the original radiator and ensures that the air conditioning and water cooler sit perfectly in the front with all the necessary connections! We recommend replacing the original radiator completely with our Replacement Frame to avoid unwanted air turbulence under the vehicle.
The intercooler is suitable for all performance levels and can be used both on the standard vehicle and on a vehicle with significantly increased performance.
Its total weight including baffle plate is only 18.5 kg. It also offers the option of being combined with our 80mm / 3.14 inch charge pipe / throttle body unit.
Our intercooler can be registered with a TÜV parts certificate even without a performance upgrade!
Wichtig:
Bitte lassen Sie Arbeiten an Fahrzeugen immer von geschultem Fachpersonal durchführen. Stoßstangen moderner Fahrzeuge verfügen über diverse Sensoren und Steuerungen, die bei unsachgemäßer Handhabung zu Problemen führen können. Für unsachgemäße Installationen übernehmen wir keine Garantie / Gewährleistung / Beratung.
Unless otherwise indicated, all articles and services are racing articles without guarantee / warranty and without STVO approval.
The same applies to modifications made to the vehicle. The performance values offered are average values on ARAL 102 OKTAN fuel, which may deviate accordingly due to inferior fuel or wear on the vehicle.
No acceleration times are guaranteed. Subsequent misfueling may cause damage to the vehicle. No guarantee / warranty is assumed for this!
HPerformance does not assume any mobility warranty / costs for the duration of the conversion or any resulting delays.
Scheduled appointment periods are not binding and may vary.
All services are special and custom-made products that are excluded from the statutory right of return.
No warranty is assumed for products that are not installed in a specialist workshop by trained specialist personnel.
Work on motor vehicles may only be carried out by trained specialists. In addition to product malfunctions, installation errors can also lead to dangerous technical and possibly legal consequences for the vehicle.
Therefore, please have all conversions carried out by a specialist vehicle workshop of the guild.
If no instructions for installing a product are available for download in the online store, these are not available
- No installation advice / installation instructions are provided by telephone.
If vehicles have already been modified beforehand, additional costs may be incurred. Please note that our TÜV-approved/registrable products are not necessarily compatible with products from other manufacturers ! Please check in advance whether your already installed hardware parts, which are not from HPerformance, are TÜV-compliant with our products!
Discoloration occurs on the silencers, pipe and tailpipe of all exhaust system components during operation. These are material-related changes that are not covered by the warranty/guarantee of the item and have no negative effect on the use or technical properties of the item.
