TC Turbos X6 2.5 TFSI Upgradeturbolader - 2.5 TFSI 400PS DAZ DNW
Currently viewed by people
Availability for pickups could not be loaded
- Upgrade turbocharger for all 2.5 TFSI 400PS DAZ DNW models
- Based on original Borg Warner fuselage assembly
- TC Turbos X-Series axial and radial bearings for maximum load capacity
- Exhaust gas turbine with the latest geometry and reinforced shaft
- Milled lightweight compressor wheel (red)
- Controllable from 1.5 bar (21PSI) to 2.6 bar (37PSI)
- Maximum flexibility from 98 octane to E85 fuels
- Just as compatible with standard engines with stage 3 as with E85 in stage 5
- Full torque already at 3800 rpm (up to 900NM)

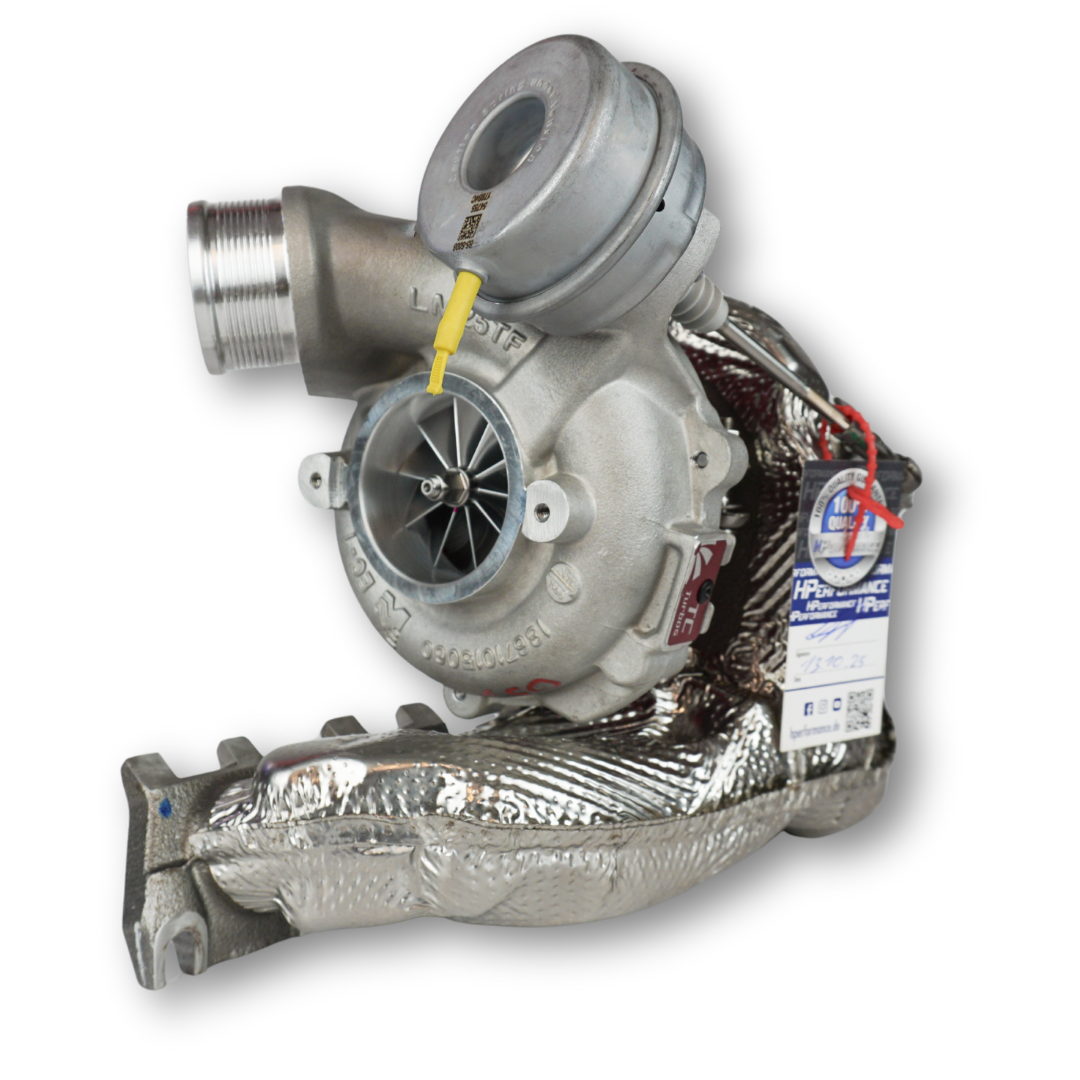

- TC Turbos X6 Turbolader
- Quality check - Seal
- Starter kit for commissioning (optional)
Product description:
Der TC Turbos X6 Turbolader ist die neueste Generation Turbolader aus dem Hause TC Turbos. Sein Markenzeichen ist das rote, gefräste Verdichterrad, welches sich nicht nur optisch von den Vorgängern unterscheidet, es ist symbolisch für eine neue Generation Hybrid- Turbolader. Der Wellenverbund, allen voran die Abgasturbine, ist eine komplette Neuentwicklung. Sie wurde für maximalen Abgasdurchsatz entwickelt und ist unter anderem der Schlüssel für bis zu 700PS bei den DNW Modellen (mit verbautem Partikelfilter). Durch die extrem effiziente Turbine kann der Turbolader nicht nur mit schlechtem Tankstellenbenzin betrieben werden, es sind auch geringe Ladedrücke um 1,5 Bar
The X8 can handle low fuel qualities as well as alcohol gasoline (E85). In addition, it can also be driven on original engines (without boost), as it can be easily controlled via the standard wastegate.
The following services are included with the TC Turbos X6 bei entsprechender Hardware möglich:
98 Oktan (EU) = 560 PS
Frontladeluftkühler (HP Sport Serie), Turboinlet (min. 76mm), Ansaugsystem (min. 90mm), Downpipe (90mm)
100 Oktan (EU) = 600 PS
Frontladeluftkühler (HP Sport Serie), Turboinlet (min. 90mm), Ansaugsystem (min. 100mm), Downpipe (90mm), Motorverstärkung (Engine Pack 1), 1000ccm Injektoren, mechanisches Blow-Off-Ventil (HP Blow-Off-Pipe), NGK R7 Serie Zündkerzen.
102 Oktan (EU) = 700 PS
Frontladeluftkühler (HP Sport Serie), Turboinlet (min. 100mm), Ansaugsystem (min. 125mm), Downpipe (102mm), Motorverstärkung (Engine Pack 1), 1000ccm Injektoren, mechanisches Blow-Off-Ventil (HP Blow-Off-Pipe), NGK R7 Serie Zündkerzen, Abgasanlage ab Katalysator, Ladedruckrohr Beifahrerseite, Drucksensoren 4 Bar.
E85 / XE85 = 770 PS
Frontladeluftkühler (HP Race Serie), Turboinlet (min. 100mm), Ansaugsystem (min. 125mm), Downpipe (100mm), Motorverstärkung (Ethanol Engine Pack), 1000ccm Injektoren, mechanisches Blow-Off-Ventil (HP Blow-Off-Pipe), NGK R7 Serie Zündkerzen, Abgasanlage ab Katalysator (min. 100mm), Ladedruckrohr Beifahrerseite, Drucksensoren 4 Bar, Ansaugbrücke, Drosselklappenbogen und Ladedruckrohr (HP 80mm Boostpipekit), Drehmomentstütze, Kupplungskit (HP 1000NM), Niederdruck Kraftstoffpumpe (HP Twin-Power).
Unless otherwise indicated, all articles and services are racing articles without guarantee / warranty and without STVO approval.
The same applies to modifications made to the vehicle. The performance values offered are average values on ARAL 102 OKTAN fuel, which may deviate accordingly due to inferior fuel or wear on the vehicle.
No acceleration times are guaranteed. Subsequent misfueling may cause damage to the vehicle. No guarantee / warranty is assumed for this!
HPerformance does not assume any mobility warranty / costs for the duration of the conversion or any resulting delays.
Scheduled appointment periods are not binding and may vary.
All services are special and custom-made products that are excluded from the statutory right of return.
No warranty is assumed for products that are not installed in a specialist workshop by trained specialist personnel.
Work on motor vehicles may only be carried out by trained specialists. In addition to product malfunctions, installation errors can also lead to dangerous technical and possibly legal consequences for the vehicle.
Therefore, please have all conversions carried out by a specialist vehicle workshop of the guild.
If no instructions for installing a product are available for download in the online store, these are not available
- No installation advice / installation instructions are provided by telephone.
If vehicles have already been modified beforehand, additional costs may be incurred. Please note that our TÜV-approved/registrable products are not necessarily compatible with products from other manufacturers ! Please check in advance whether your already installed hardware parts, which are not from HPerformance, are TÜV-compliant with our products!
Discoloration occurs on the silencers, pipe and tailpipe of all exhaust system components during operation. These are material-related changes that are not covered by the warranty/guarantee of the item and have no negative effect on the use or technical properties of the item.
