Complete subframe + wishbone MQB AWD set
Availability for pickups could not be loaded
MQB (Audi TT, TTS, TTRS, S, RS, VW Golf 7R) complete suspension.

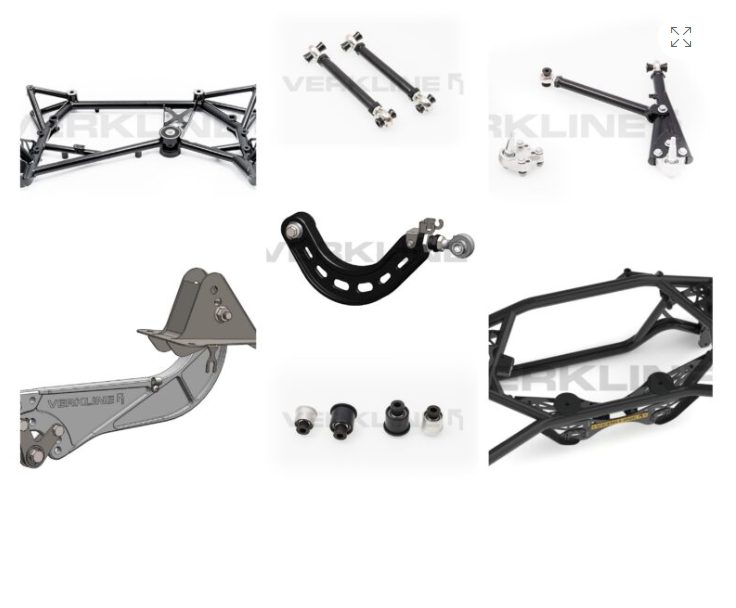

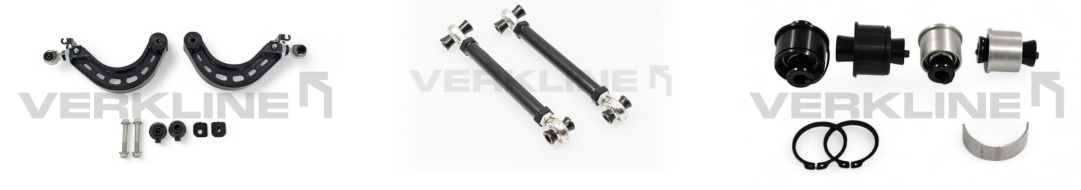

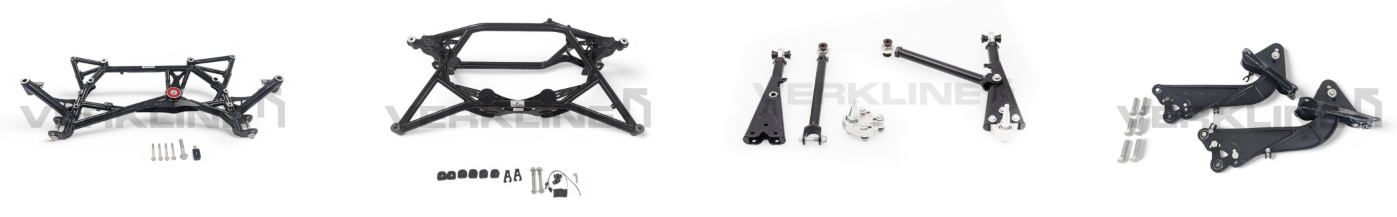

The kit consists of (click on the item name below for a detailed product description):
- Lightweight tubular front subframe.
- Lightweight tubular rear subframe with reinforcement strut.
- Adjustable tubular front wishbones with modified kinematics.
- Spherically adjustable MQB rear axle trailing arm set.
- Fully adjustable Uniball rear wishbones.
- Adjustable metal rod ends for the rear track rods.
- Inserts for the rear spring mounts and wheel bearing housing.
Adjustable rear stabilizer bars are not included in the scope of delivery. You can find them here and add them to your order.
Technical details:
- Attachment to the chassis is via standard mounting points.
- Complete 3D CAD design.
- FEA tested and additional reinforcements compared to the original design.
- Made entirely from T45 tubes and S355 steel to ensure maximum strength.
- TIG welded.
- Motorsport quality rod ends.
Used in vehicles with MQB platform (type numbers in brackets):
Audi S3 Mk2 (8V & 8VFL from 2012)
Audi RS3 (8V & 8FV from 2013)
Audi TT/TTS (8S from 2014)
Audi TTRS (8S from 2016)
Audi Q3 / RSQ3 (F3 from 2018)
VW Golf Mk7 Mk8 (from 2012) R. If you are ordering this set for the Golf 8R, please let us know in the comments field of your order.
Note:
For off-road, track and racing use only. The installation of this product leads to an additional transmission of noise, vibrations and roughness (NVH) into the passenger compartment. We strongly recommend having the subframe fitted in a qualified and experienced workshop.
Unless otherwise indicated, all articles and services are racing articles without guarantee / warranty and without STVO approval.
The same applies to modifications made to the vehicle. The performance values offered are average values on ARAL 102 OKTAN fuel, which may deviate accordingly due to inferior fuel or wear on the vehicle.
No acceleration times are guaranteed. Subsequent misfueling may cause damage to the vehicle. No guarantee / warranty is assumed for this!
HPerformance does not assume any mobility warranty / costs for the duration of the conversion or any resulting delays.
Scheduled appointment periods are not binding and may vary.
All services are special and custom-made products that are excluded from the statutory right of return.
No warranty is assumed for products that are not installed in a specialist workshop by trained specialist personnel.
Work on motor vehicles may only be carried out by trained specialists. In addition to product malfunctions, installation errors can also lead to dangerous technical and possibly legal consequences for the vehicle.
Therefore, please have all conversions carried out by a specialist vehicle workshop of the guild.
If no instructions for installing a product are available for download in the online store, these are not available
- No installation advice / installation instructions are provided by telephone.
If vehicles have already been modified beforehand, additional costs may be incurred. Please note that our TÜV-approved/registrable products are not necessarily compatible with products from other manufacturers ! Please check in advance whether your already installed hardware parts, which are not from HPerformance, are TÜV-compliant with our products!
Discoloration occurs on the silencers, pipe and tailpipe of all exhaust system components during operation. These are material-related changes that are not covered by the warranty/guarantee of the item and have no negative effect on the use or technical properties of the item.
